Centralized access management for airports: securing multi-zone facilities, managing role-based access, and supporting reliable airport operations.
Get Quote
Overview
Commercial aviation hubs and international airports operate under strict security requirements while handling a high volume of daily access activities. Access control needs to support the movement of authorized personnel, protect restricted operations, and maintain appropriate security levels without disrupting normal airport activities.
Effective airport access control therefore requires more than basic entry authorization. Permissions need to be clearly managed according to user roles and operational requirements, while access records and security events remain available for timely monitoring and review.
CIVINTEC provides an access control solution designed to meet the security and operational needs of modern airports, supporting effective access management and reliable daily operations.
Multiple authentication methods help airports manage varying access requirements while maintaining appropriate security levels. CIVINTEC supports a range of credential technologies to meet these needs.
Use a smartphone as mobile credential encrypted by AES via BLE or NFC
Use a smartphone as mobile credential encrypted by AES via BLE or NFC
125KHz, 13.56MHz Mifare® and DESFire®EV2/EV3 with SAM AV2/AV3 smart cards
Facial recognition
CIVINTEC supports cloud-based access control management, enabling security teams to manage access remotely and monitor access control operations in real time from a centralized platform.
Ethernet(PoE), Wi-Fi, LoRaWAN, 4G LTE (with GPS)
Server remotely authenticates credentials, verifies permissions, and authorizes door unlock, ensuring secure centralized control and accurate access logging.
Under offline, access terminal verifies identities, grants access, and stores all events locally with thousands of encrypted user credentials.
CIVINTEC access control ensures access control and data security through advanced encryption protection for all data transmissions and credentials.
To counter cloning and forgery, the digital credentials RFID DESFire smart card and mobile credentials are secured with AES encryption and Secure Access Modules SAM AV2/AV3 certified at EAL5+/EAL6+ . This multi-layered approach effectively prevents unauthorized credential sharing and ensures robust personnel identification.
CIVINTEC devices support encrypted protocols: OSDP, HTTPS TLS 1.3 with enhanced CA certificate verification.
Access Security requires a proactive system that monitors the health and integrity of every access point in real-time.
CIVINTEC transforms access events into actionable data: track entry, flag denials/expired credentials, detects forced entries/tailgating, monitors doors, triggers tamper alarms, and provides real-time alerts with logs for enhanced security.
CIVINTEC terminals integrate with fire alarms to automatically unlock exits and secure hazards, ensuring safe evacuation during emergencies.

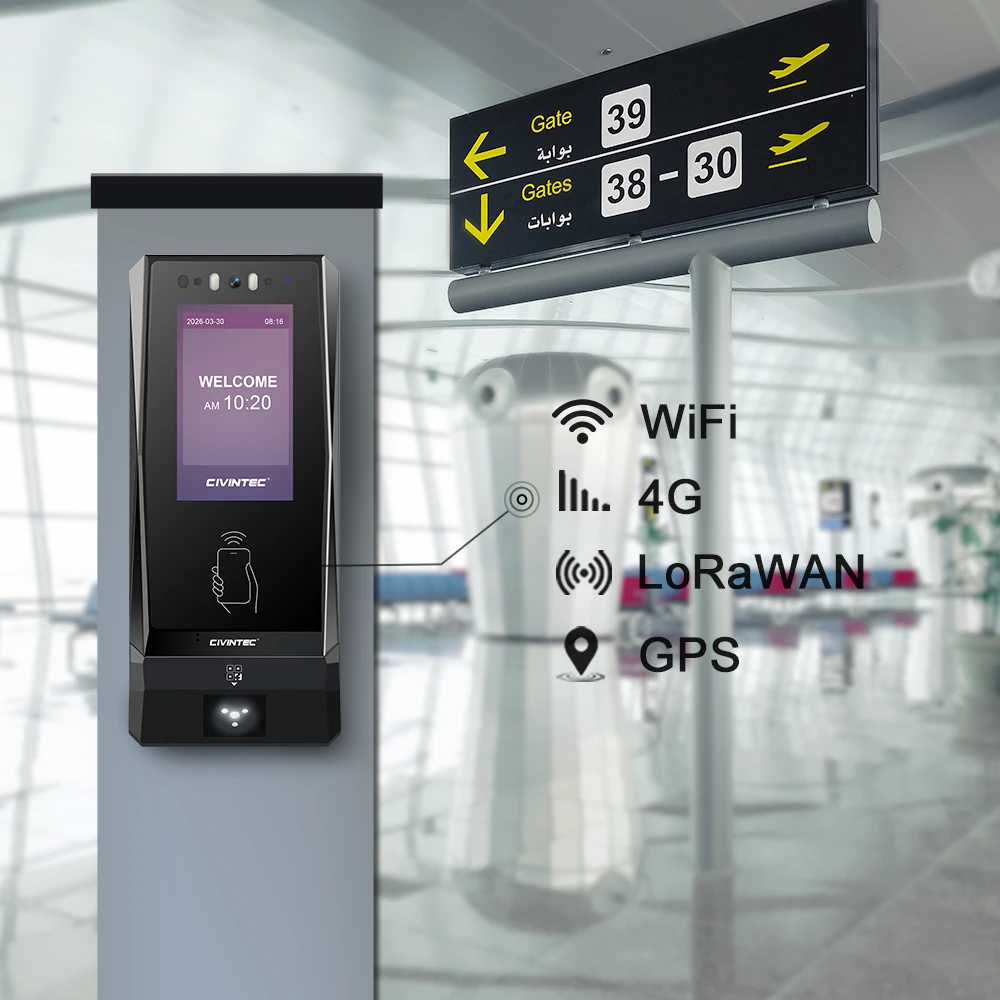

CIVINTEC access control terminals support TCP/IP, LoRaWAN, Wi-Fi, and 4G connectivity, providing reliable network options for deployment across the airport.

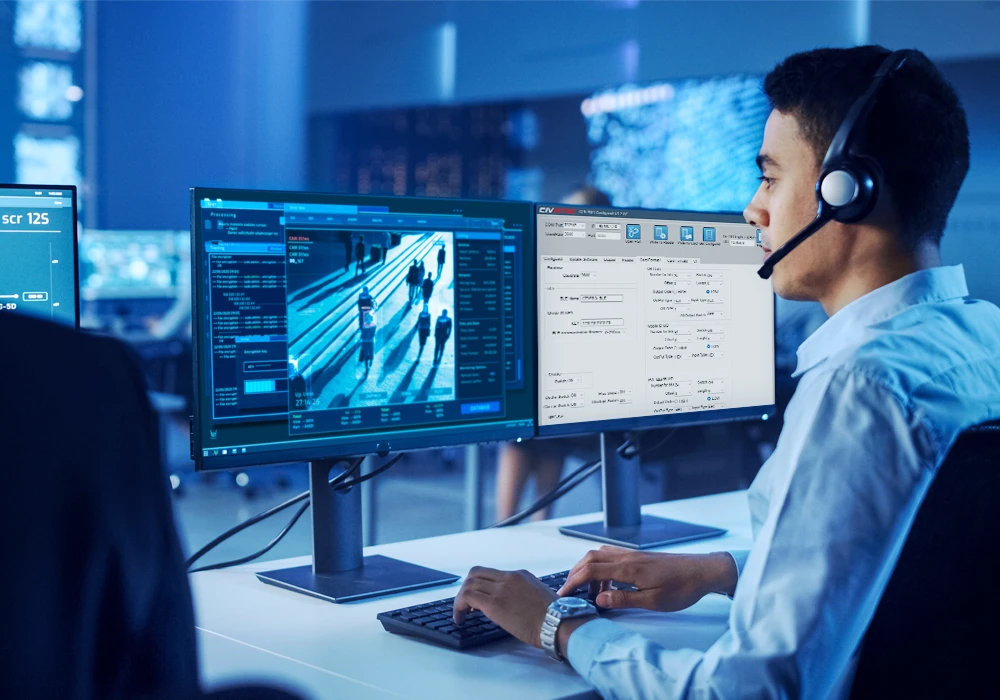

Connected to a centralized cloud management platform, security teams can manage access control terminals and user permissions across multiple areas from one system. Access activity and device status are synchronized with the platform in real time, giving administrators a clear view of access control operations and allowing them to respond promptly when security events occur.
Through HTTP/HTTPS communication, the system supports remote permission management, temporary authorization, and remote door unlock. OTA firmware and software updates can also be deployed across the network, reducing the need for on-site maintenance.
Access requirements within an airport vary according to each user' s responsibilities and level of authorization. CIVINTEC supports role-based access control, allowing permissions to be defined by authorized areas, valid time periods, and authentication requirements.

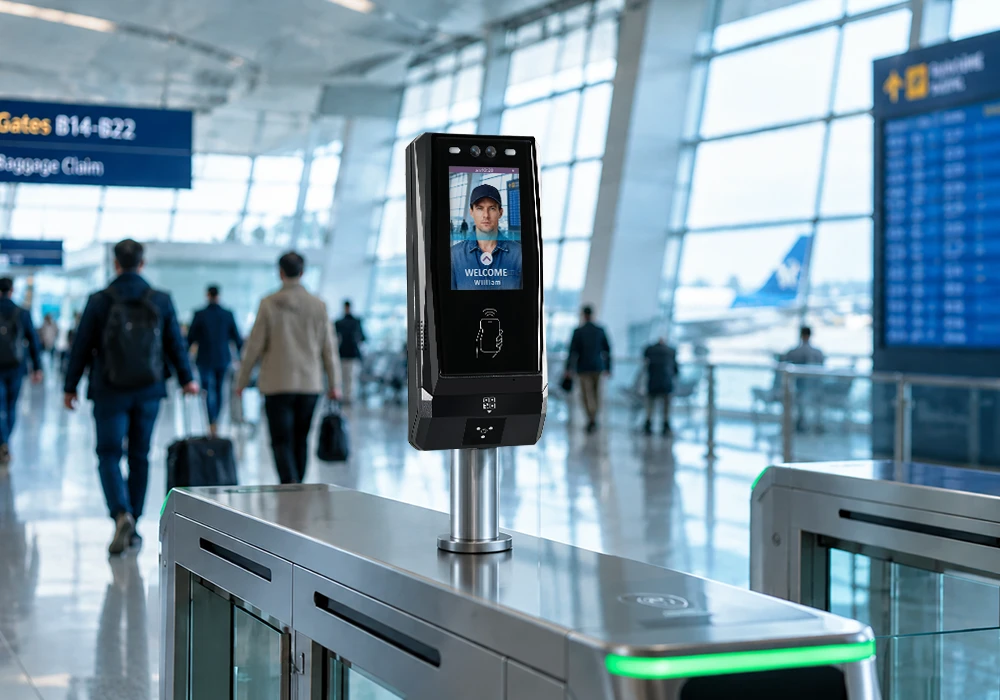

Facial Recognition: CIVINTEC access control terminal integrates a high-performance edge computing facial recognition engine that completes recognition in 0.015 seconds. It supports liveness detection to prevent photo or video spoofing attacks while providing contactless entry for selected high-traffic areas.

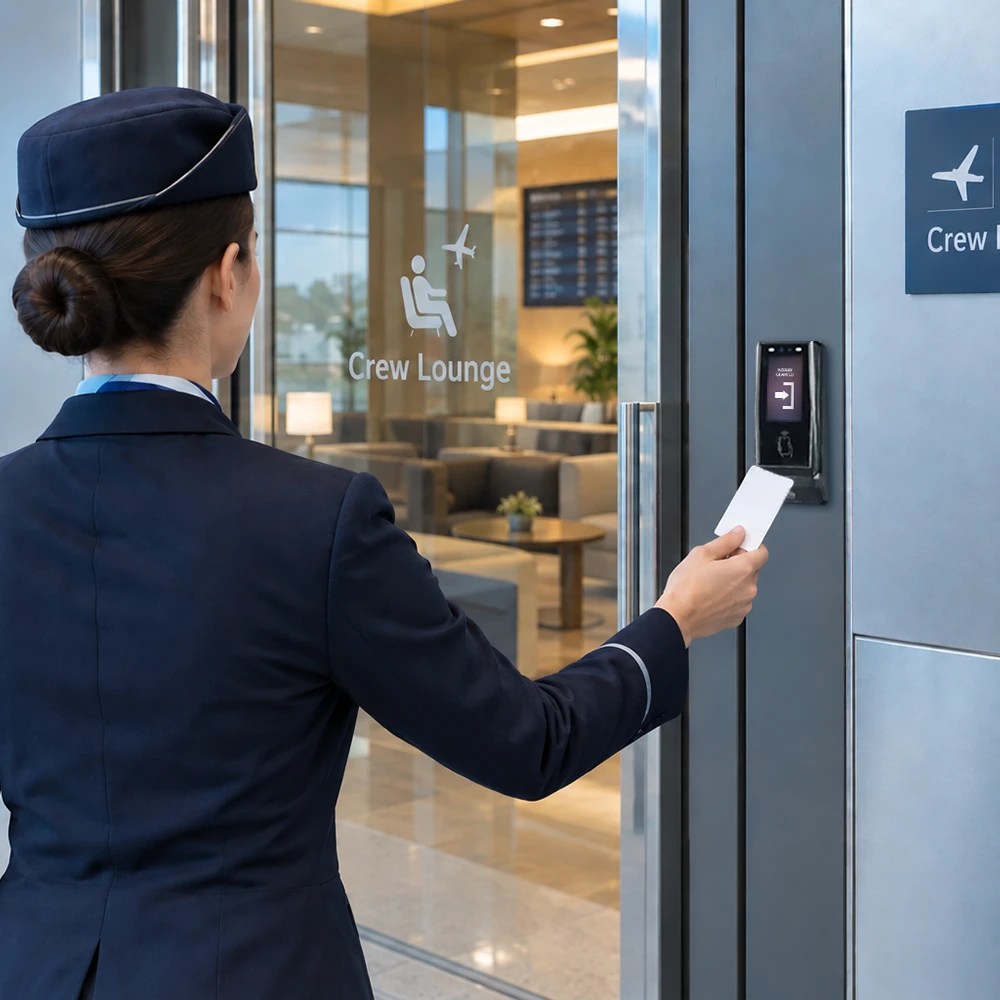

Smart RFID Cards: RFID cards are suitable for employees, ground handlers, and long-term contractors who need regular access. CIVINTEC terminals support 125 kHz and 13.56 MHz cards, including MIFARE Classic, MIFARE Plus, and DESFire EV1/EV2/EV3. Credential data is protected with 128-bit AES encryption, with an optional EAL5+ SAM module for added credential security.
NFC/BLE Mobile Credentials: Maintenance technicians and mobile teams may need to move between multiple doors and zones. CIVINTEC supports NFC/BLE mobile credentials on smartphones, providing mobile access while maintaining the same permission management and access records as other credential methods. Administrators can adjust the range so technicians can unlock a service door without taking out their phone, while keeping the same audit trail and permission control as card users.
QR Codes: Airports may need to provide temporary access for visitors, auditors, and temporary contractors. CIVINTEC supports encrypted, time-limited QR code credentials that can be assigned to specific access permissions. After the authorized time window ends, the temporary credential can expire automatically.
PIN Codes: CIVINTEC supports PIN code entry, which can be assigned to individual users or shared by a small team for specific doors. They can serve as an alternative when a card or phone is not available, while each PIN entry is recorded and sent to the cloud platform for access review.

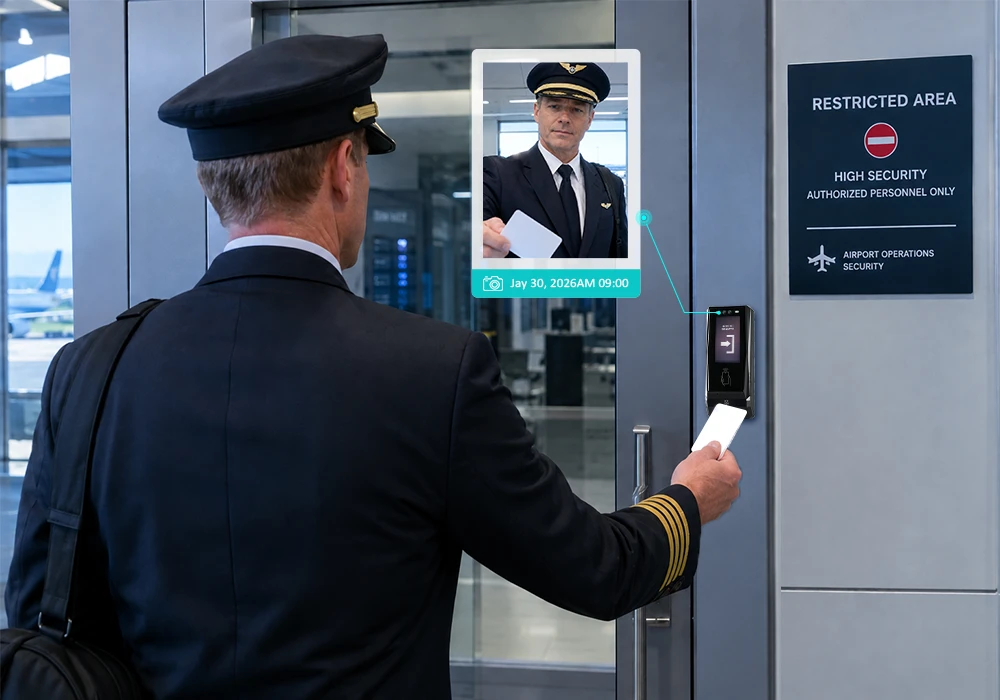

Automatic Event Photo Snapshots: For terminals equipped with cameras, access events can be accompanied by photo records. When a user scans a QR code or presents a card, the CIVINTEC access control terminal automatically captures a photo of the person in front of the device, associating the image with the user, timestamp, and device ID before transmitting it to the client’s cloud system. These visual image logs provide unalterable, legally binding evidence for incident investigation, dispute resolution, and insurance claims.
Offline Access Control: CIVINTEC access control terminals store encrypted user permissions locally, allowing them to continue verifying credentials and granting authorized access when the network connection is interrupted, without relying on a continuous connection to the cloud platform.
Once the network connection is restored, locally stored access events can be synchronized with the management platform, helping maintain complete access records.
CIVINTEC access control devices are offered with robust SDK seamlessly for customer server software integration and allow for personalized products based on user preferences. The device with display features a clear, responsive interface with a fully customizable UI — including personalized text, icons, and background images, audio file etc.
· Provide SDK for server management software integration
· Tailored User Interface
· OEM LOGO display
CIVINTEC access control terminal is designed with versatile GPI/O port and interfaces to build comprehensive security and IoT access control solutions featuring less wiring and cost-saving installation.
Centralized Network Management
CIVINTEC wire and wireless HTTP/HTTPS networked access control terminals that operate over WiFi, LoRaWAN, 4G LTE (GPS) and Ethernet (Power Over Ethernet) for less wiring and cost-saving installation, connectivity to manage both online and local mode access control applicaons. This ensures seamless operation in any environments, even those with limited or no local network access.
High-Security Access Solution Tailored for Crical Areas
CIVINTEC access control system supports APB (anti-passing back) external door reader via Wiegand/RS485 interface to protect both sides of an access point. It can be intelligently configured into a slave mode for entrances, while operating seamlessly with room interior relay-enabled card readers for exits.
Intelligent Access and Facility Control
CIVINTEC access control terminal with rich I/O ports to seamlessly work with external devices enabling smart lock control, door contact monitoring, exit button, and fire alarm. Equipped with multiple relay outputs, CIVINTEC smart IoT & access control system is ideal for centralized remote management of electric locks, lighting, and other facilities from a central server in real time.
