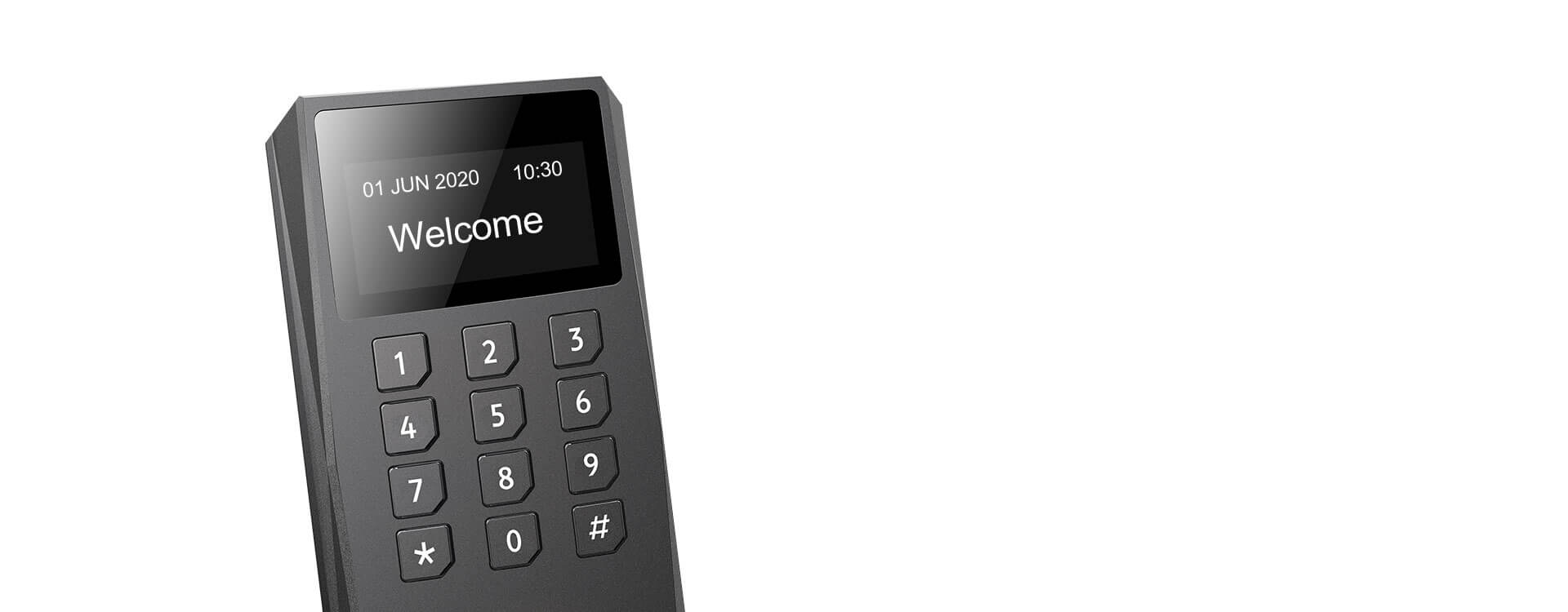

High Quality Display with Mechanical Keypad for Ultra Low Temperature Outdoor Use
NFC/BLE Access Control By Using Mobile Phone via NFC or BLE. Support RS485 OSDP Secure Communication.

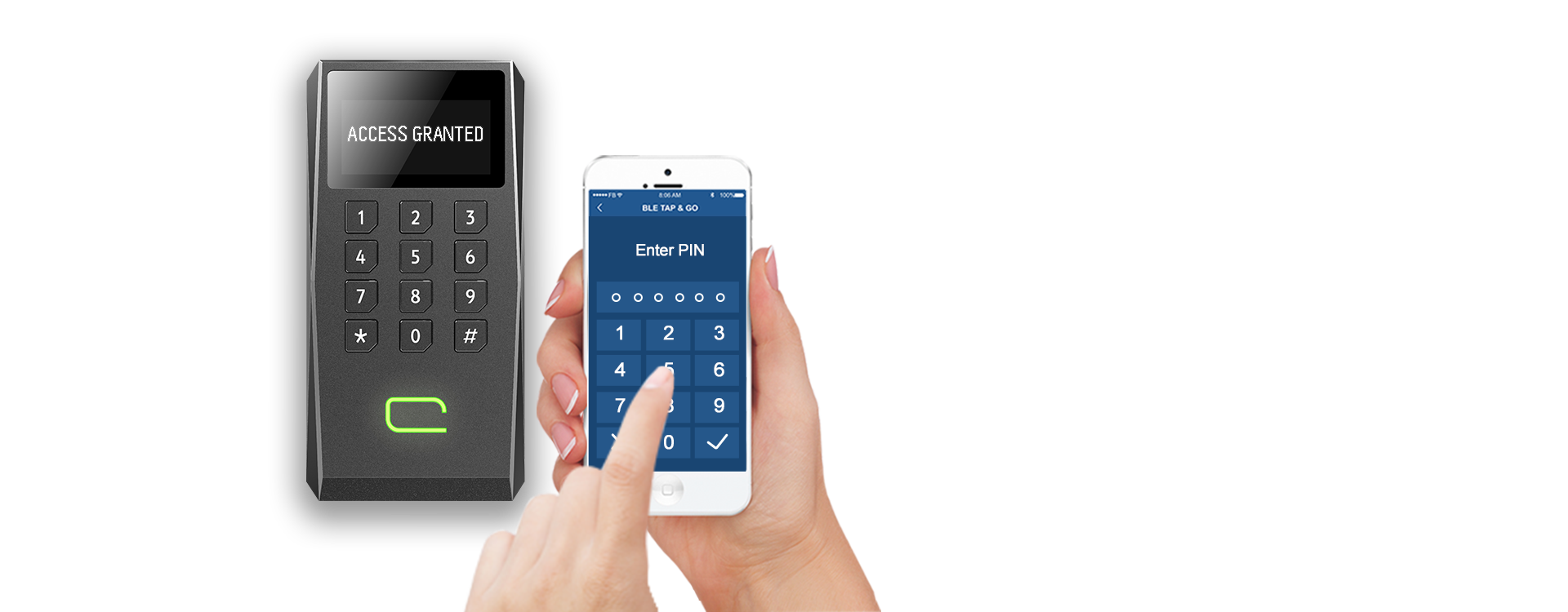

Two flexible choices to input PIN code for access control by using reader mechanical keypad or mobile credential to input PIN code on personal mobile phone via BLE and NFC technologies. Civintec offer SDK for third-party software integration.

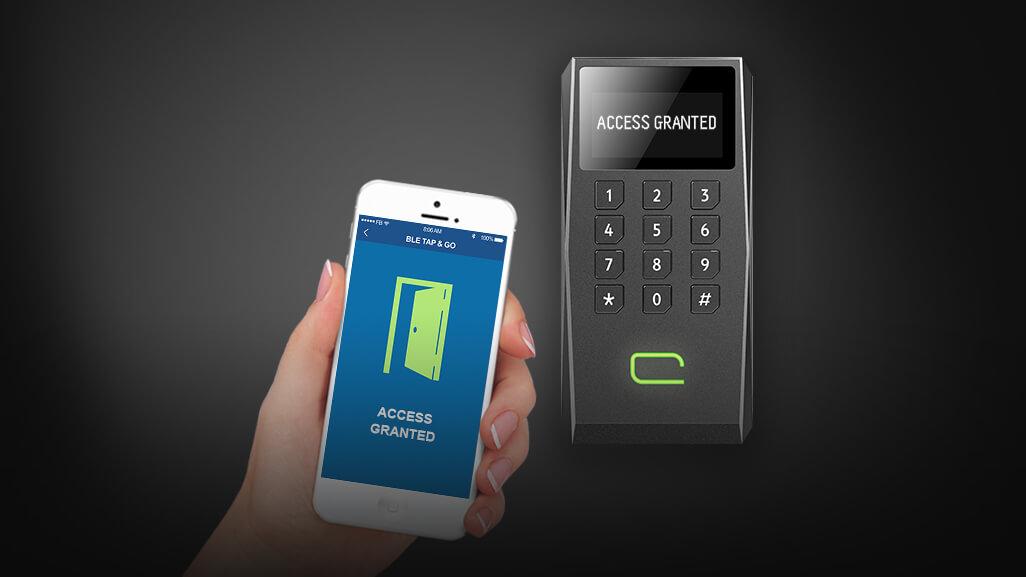

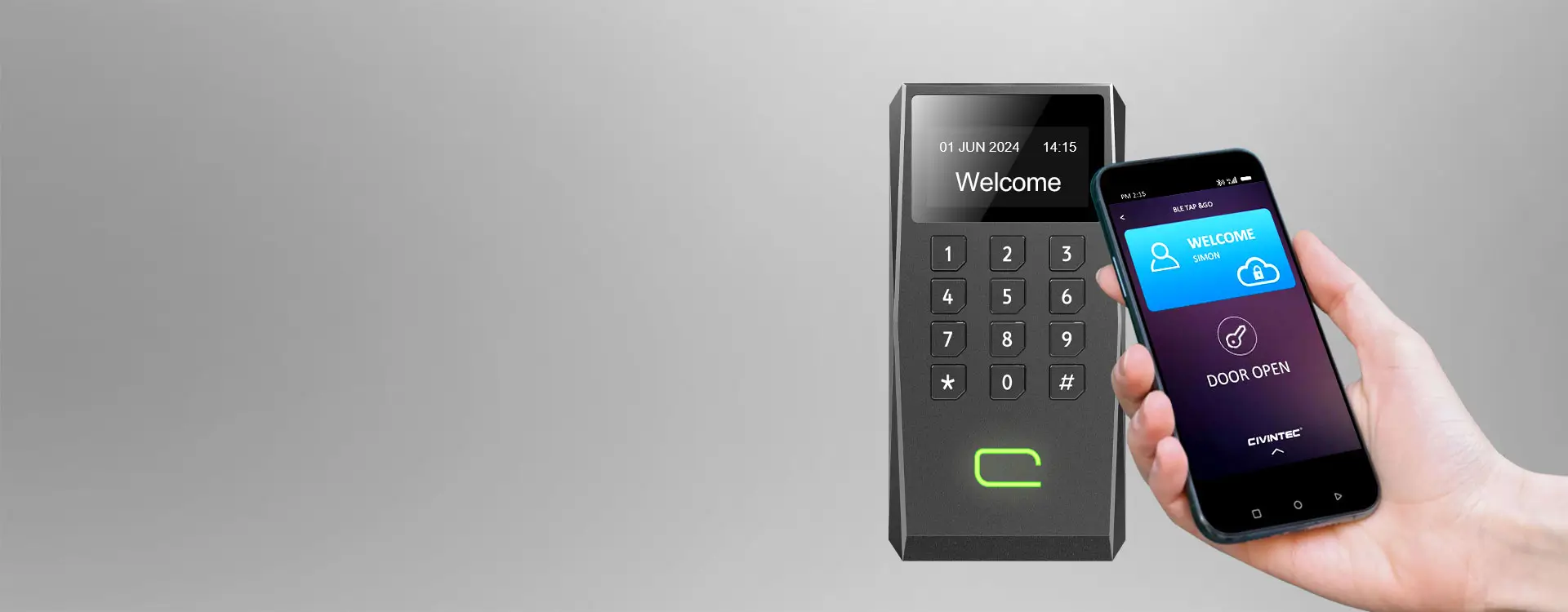

Compliant with BLE and NFC technology for Mobile ID access control solution.

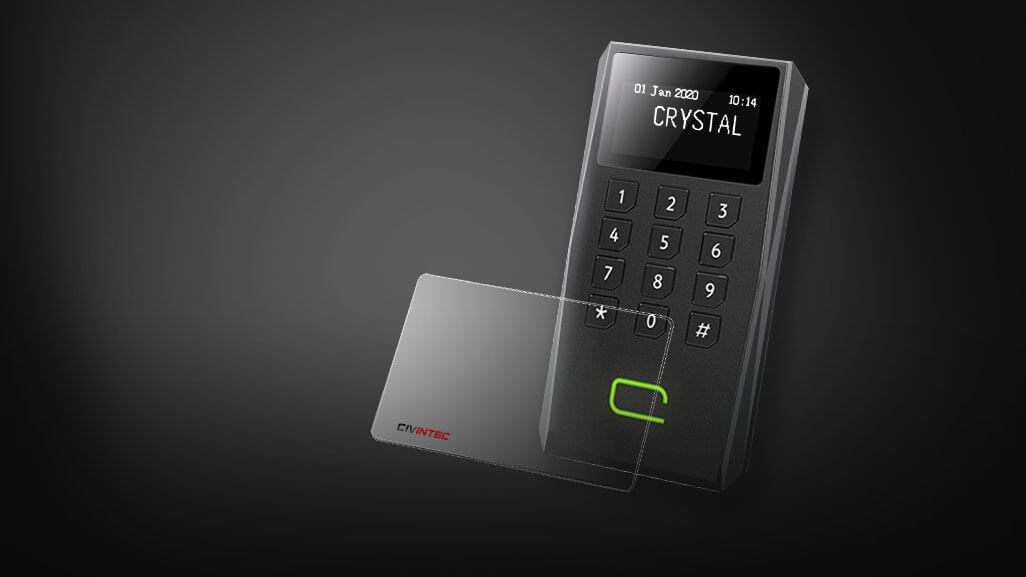

EM, ISO14443A/B Mifare®, Mifare® PLUS, DESFire® EV1/EV2 with ISO7816 SAM (Secure Access Module) for data encryption.

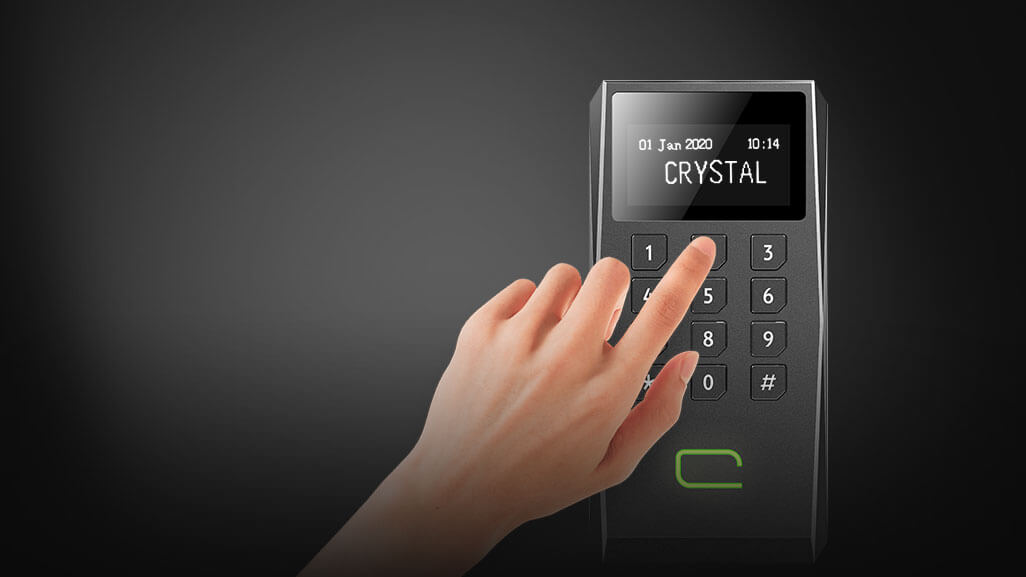

12 digit keypad in 4 rows of 3 keys in each row with white LED backlit, intensely adjustable.

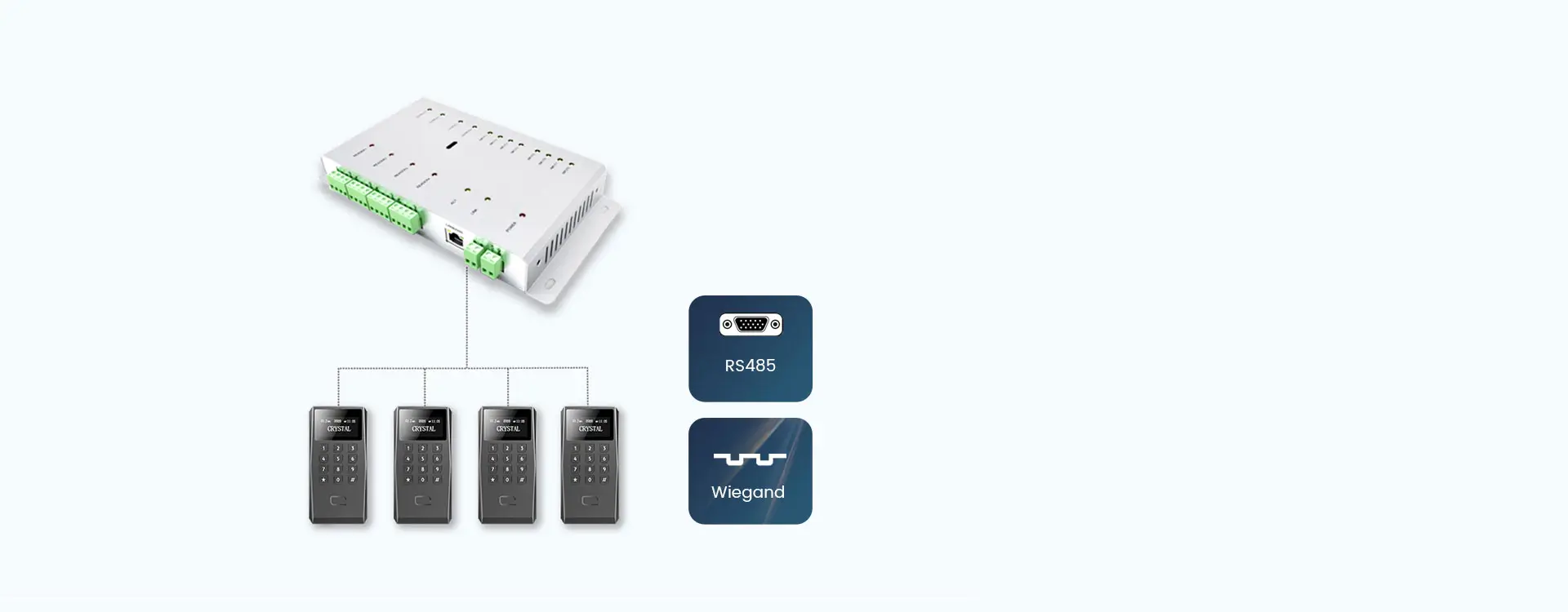

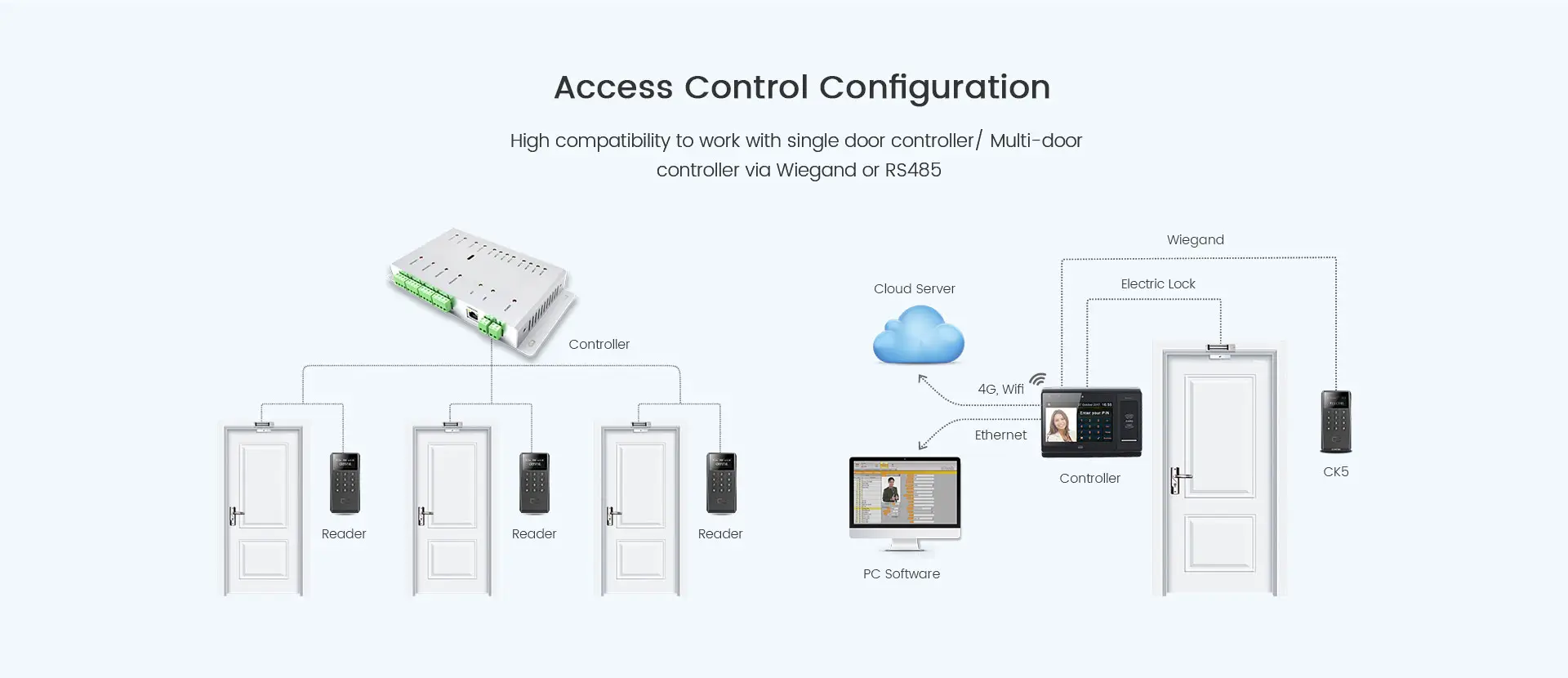

CK5 touch keypad reader offers universal compatibility to work with the third-party access controller via Wiegand, RS485 (OSDP).

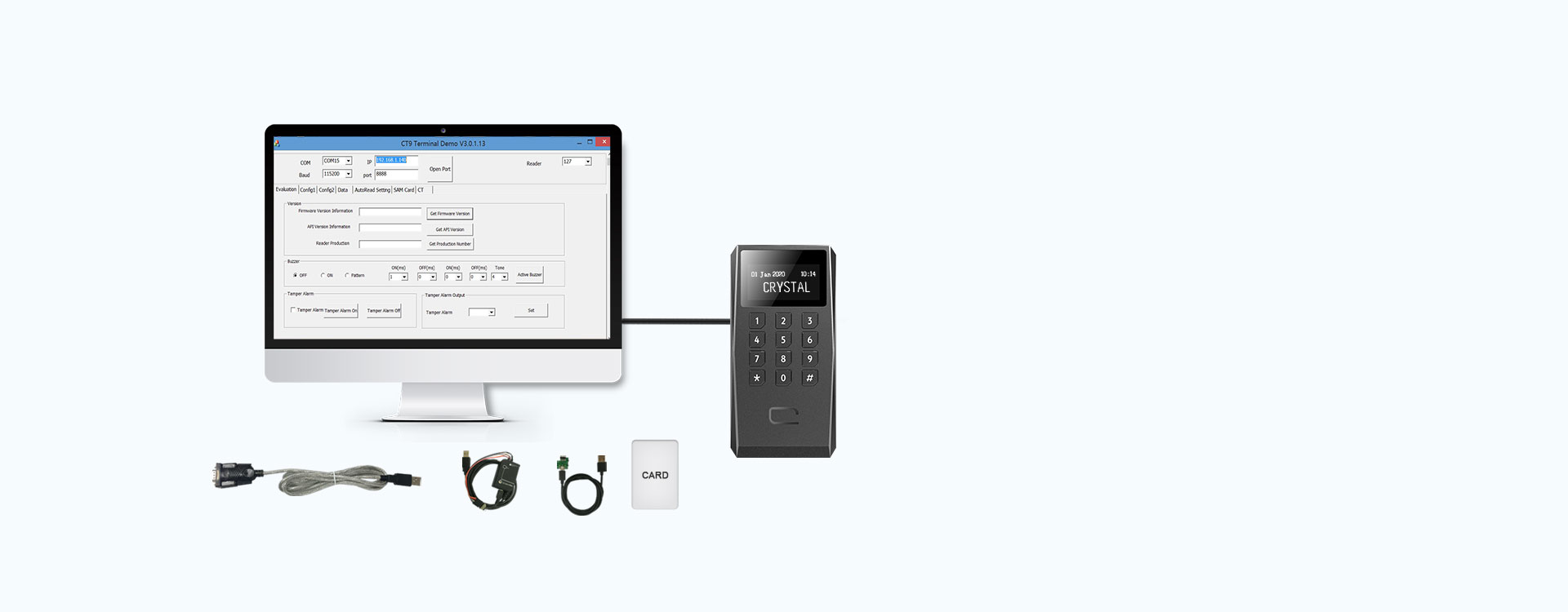

With configcard software & configuration cards, users can easily download all readers programable parameters such as indication behaviors, custom unique encryption keys and communication interface settings.
 | |
| CK5-MX-X | |
| CRYSTAL KEYPAD | |
| ISO-protocol | 13.56MHz ISO14443A/B, ISO15693, ISO18092 NFC, 125KHz |
| Contactless cards | - 125KHz Prox, EM4100, EM4200 - Mifare®S50/S70, Ultralight®(C), DesFire® EV1/EV2, Mifare® Plus S,X - NFC forum tag T2T, T4T |
| Mobile Credential | NFC, BLE 5.0 |
| Secure Access Module | ISO7816 Standard Mini Card Slot, MIFARE SAM AV2 |
| Display | 2.4" OLED, 128×64 white characters on black background |
| Keypad | 12 digit keypad in 4 rows of 3 keys in each row with white LED backlit, intensely adjustable; Keypad output format Weigand 4bit, Weigand 8bit (Dorado), Weigand 26bit & OSDPASCII format |
| Communication Interface | RS485(OSDP), Wiegand (24-1024bit, configurable by software) |
| Indicator | Four wire control for LED and buzzer, Symbols LED with Red, Green, yellow (biocolor) or Mixed color Status ndicators, Buzzer |
| GPI/O | 2 configurable GPIO |
| Tamper Alarm | Built-in mechanical tamper switch which allows for indication both break off protection and opening of the reader |
| Firmware upgrade | OTA support |
| Power supply | 9-30V DC |

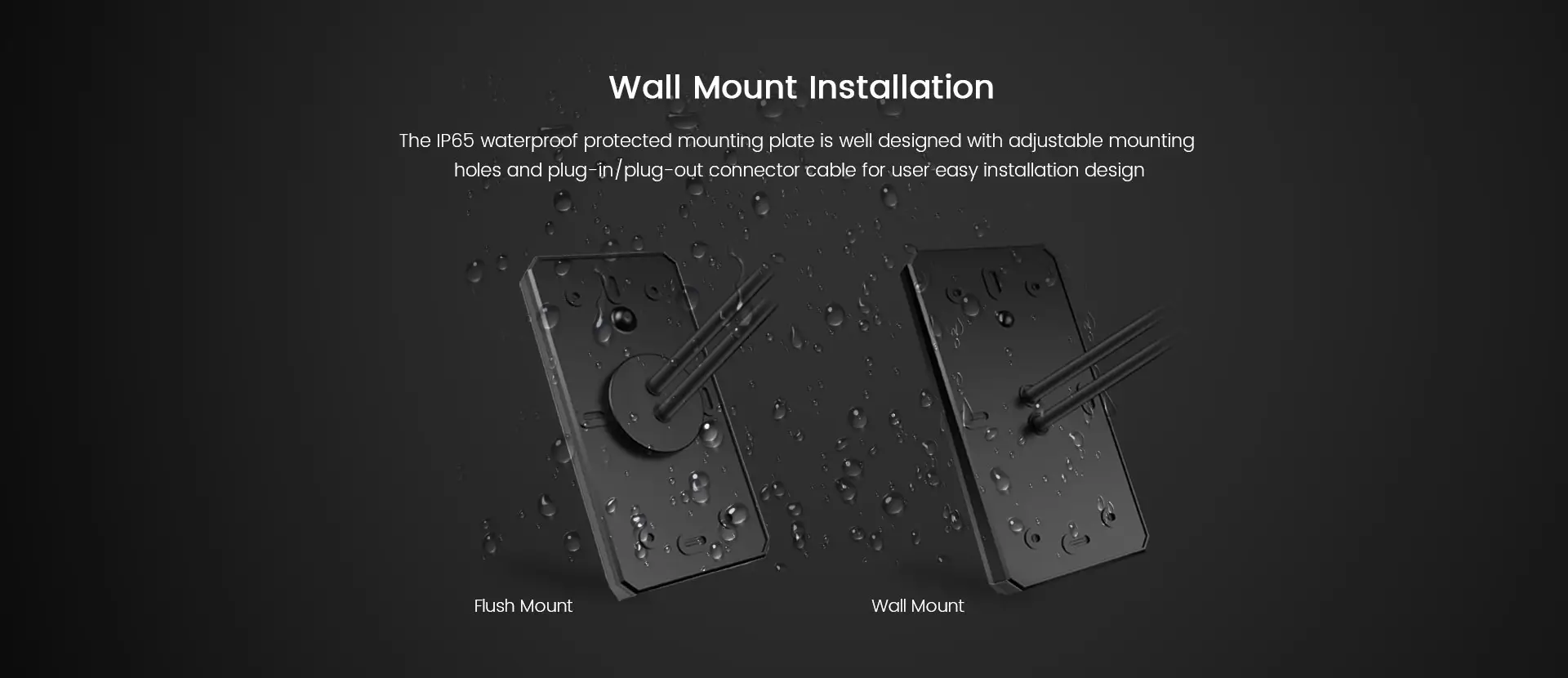

| Ingress Protection Classification | IP65 |
| Housing dimensions | 165mm (H) *84mm (W)* 20mm (T) |
| Operating temperature | -40°C ~ +60°C, With thermostat controlled embedded heater |
| Humidity | 0%-90% RHNC (Relative Humidity No Condensation) |
| Certification | CE, RoHS |
* The specifications are subject to change without notice.
