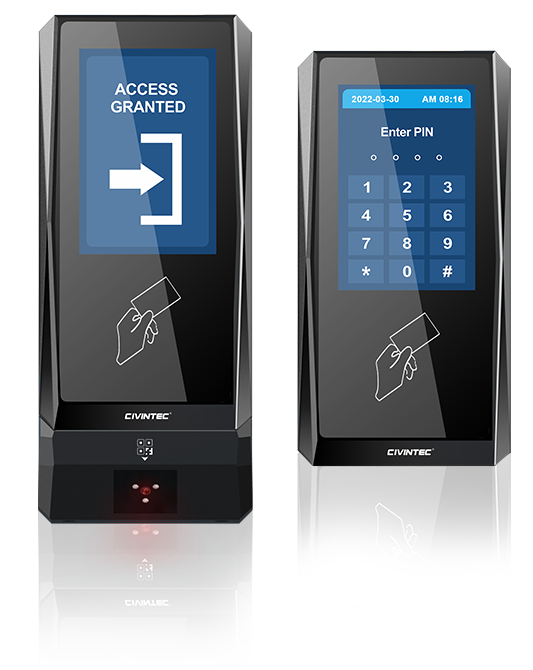

CRYSTAL TOUCH

CT9 PRO

Superior, Modern, Reliable
All-in-One cloud mobile touchless
access control terminal

HTTP Server Centralized IoT & Access Control System with RFID/QR Code/Mobile Credential Reader

3.5” Touch Screen Terminal

with Embedded Linux Os & SDK


+


Embedded 4G, TCP/IP HTTP/HTTPs protocol

for both LAN & Internet Server Software


+


Embedded Relay Control for Lock & Facility Control

Support Both of Host Mode & Local Mode

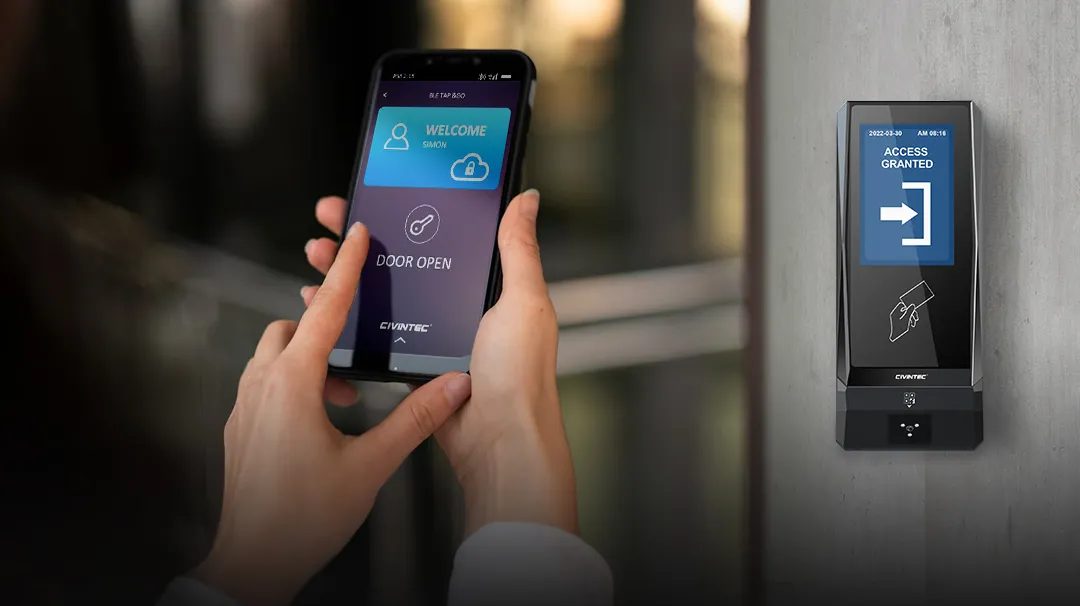

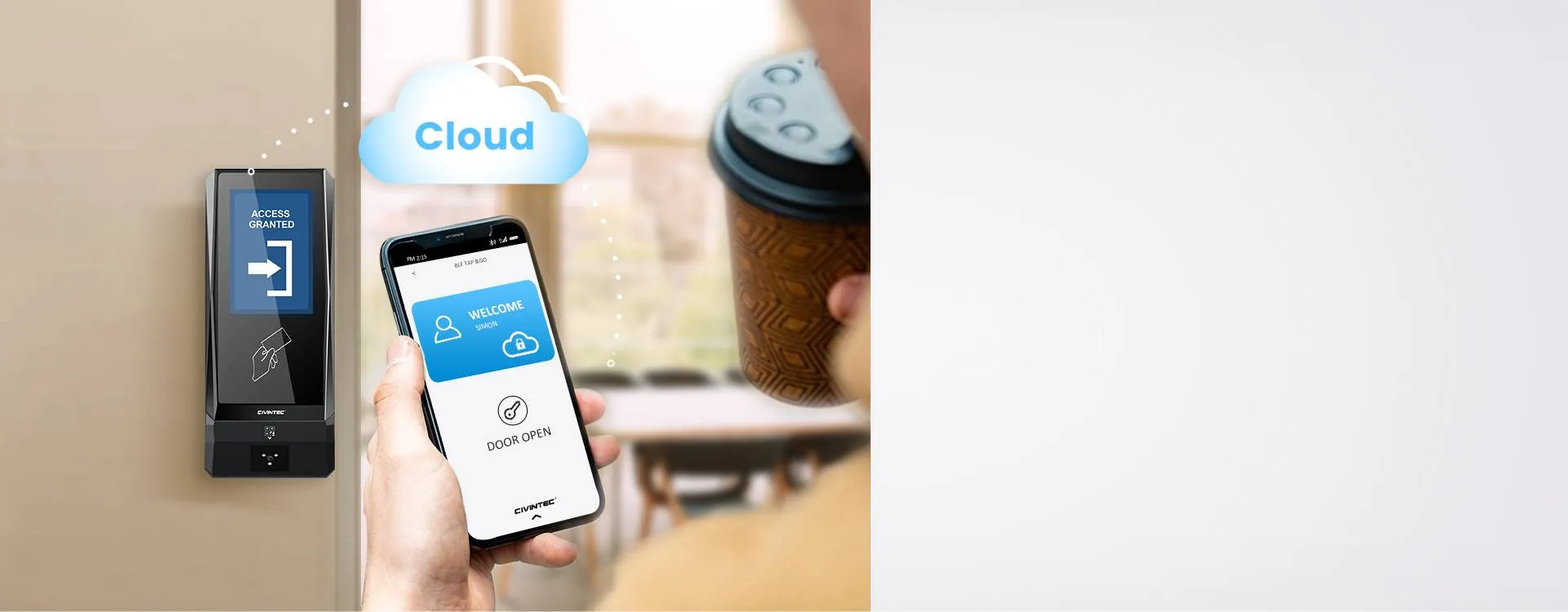

Cloud-based Mobile Credentials Touchless Access Control

Server centralized access control terminal allows you to use mobile app as a credential for door access control and visitor management

Multi-identification Access Technologies

Mobile Key

Mobile Key

Touch free access control compliant with encrypted BLE and NFC technology to use smart phone or smart watch as mobile virtual card

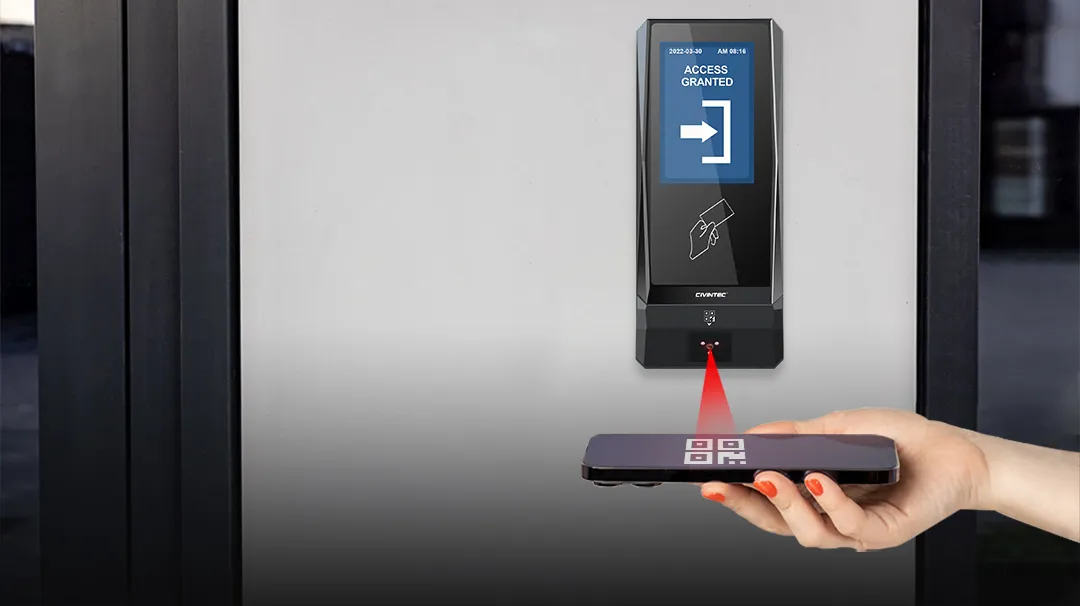

QR Code

QR Code

CT9 Family with assembled QR code scanner to support multi-formats QR Code 1D & 2D codes, QR & Micro QR codes and Barcode, ideal for touch free visitor access control

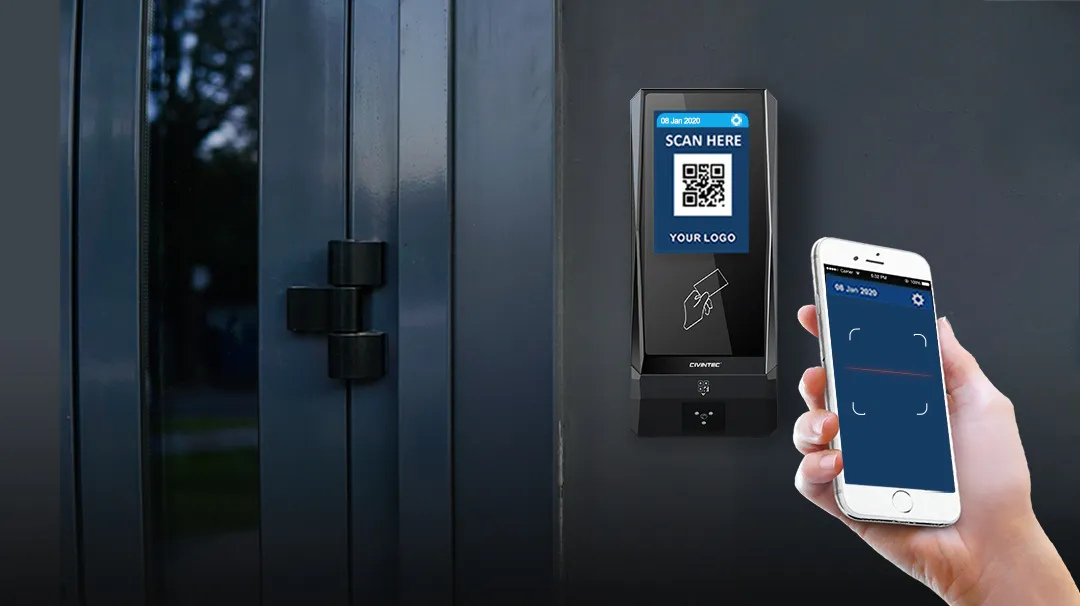

Dynamic QR Code

Dynamic QR Code

CT9 Encrypted Dynamic QR CODE offer a simple but safe way for visitors to open door or cashless payment by scanning QR code

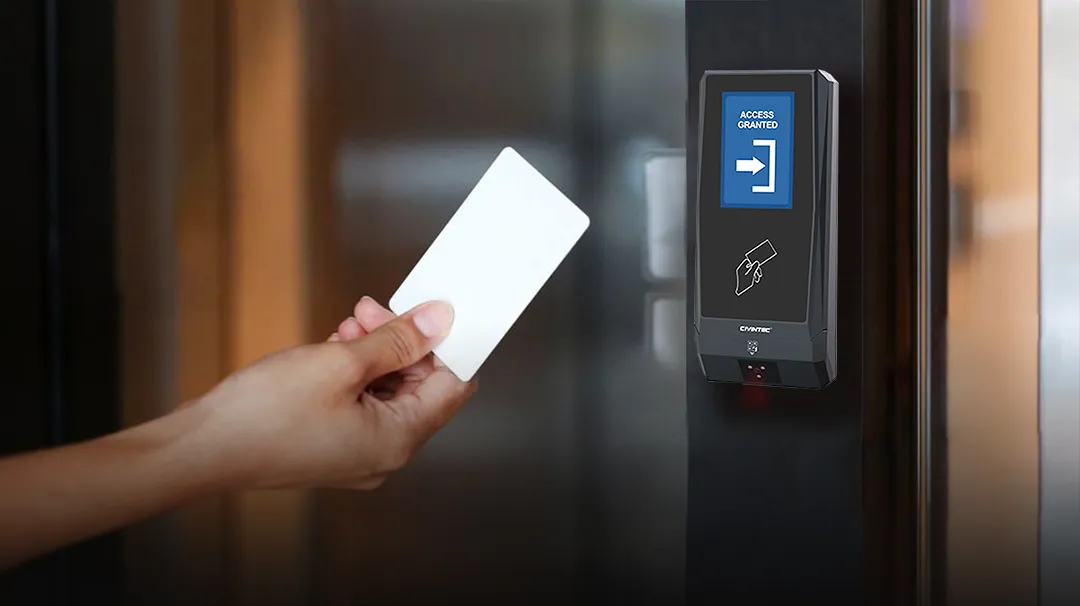

RFID Smart Card

RFID Smart Card

Support both 13.56MHz and 125KHz RFID, compatible with the most popular RFID smart cards
including Mifare®,Mifare Plus®, DESFire®, HID Prox and iCLASS®, iCLASS SE/SR®, iCLASS Seos® smart cards

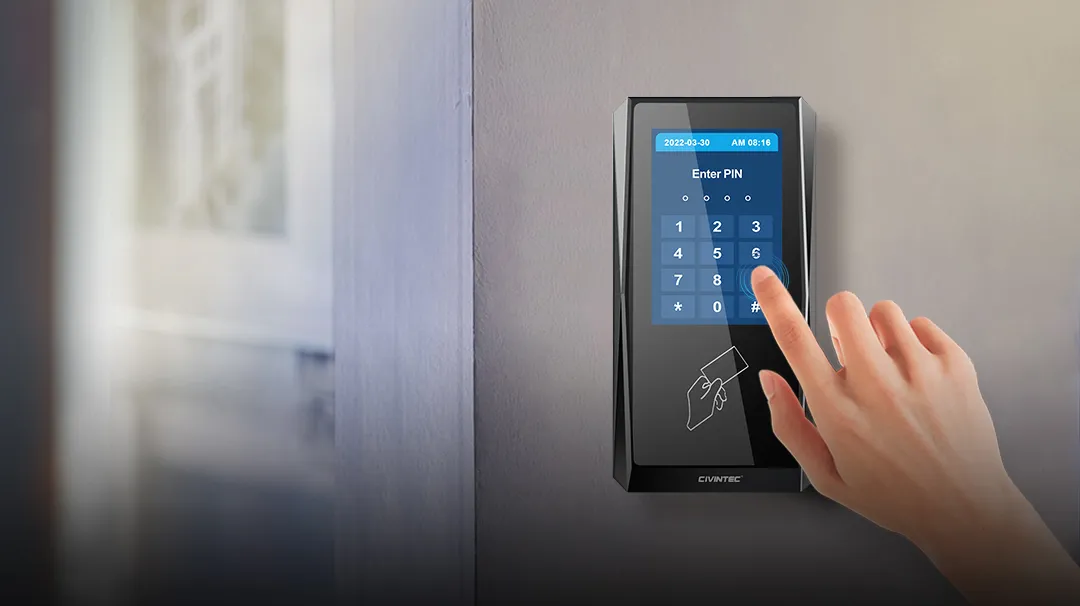

Pincode

Pincode

Programmable 4-8 digit length of PIN codes, supports multiple access modes, Card or PIN, Card+PIN, PIN Code Only, Card Only

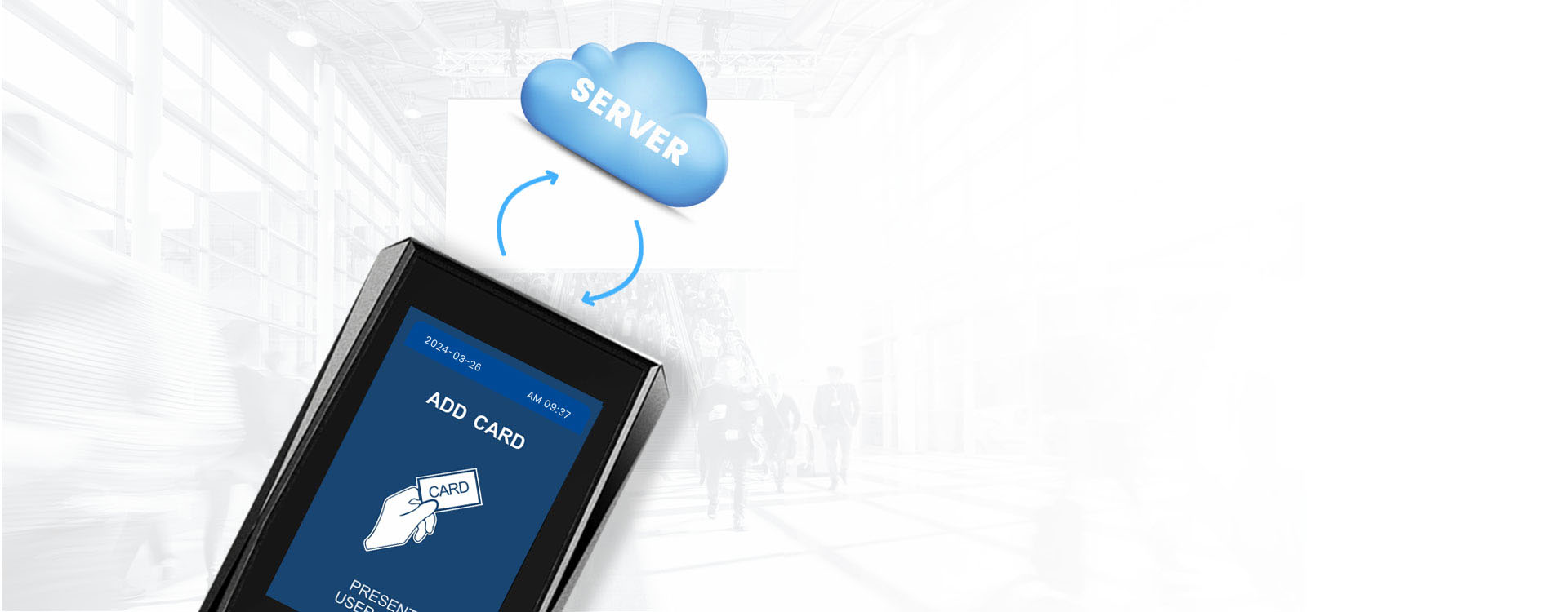

Cloud Server Real-time Online Remote Access Control

Bio-direction encrypted HTTP/HTTPs communication via GET/POST commands between CT9 door access systems and server for online remote door lock, turnstile and various facility control. Features of BLE, 4G and TCP/IP Ethernet PoE port offer a flexible and cost-save installation well-suited for various network environments.

BLE图标

Smart and Secure Online & Offline Working Modes

Auto switch between Host and Local modes protect door access security under offline mode and provide server online remote control and management solutions.

MODE

HOST MODE

USERS

UNLIMITED

EVENT LOGS

UNLIMITED

MODE

LOCAL MODE

USERS

10,000

EVENT LOGS

50,000

Advanced Secure Encryption Protection

As an extremely secure encryption system, CT9 PRO implements the encryption of all credentials and personal information avoiding the risk of cloning, and also protects data security through encrypted communication protocols.

Real-time Security Alarm Monitoring

With integrated tamper alarm monitoring, CT9 door access control enhance security by providing real-time alarm.

Tamper Alarm

Tamper Alarm

Alarm Report

Alarm Report

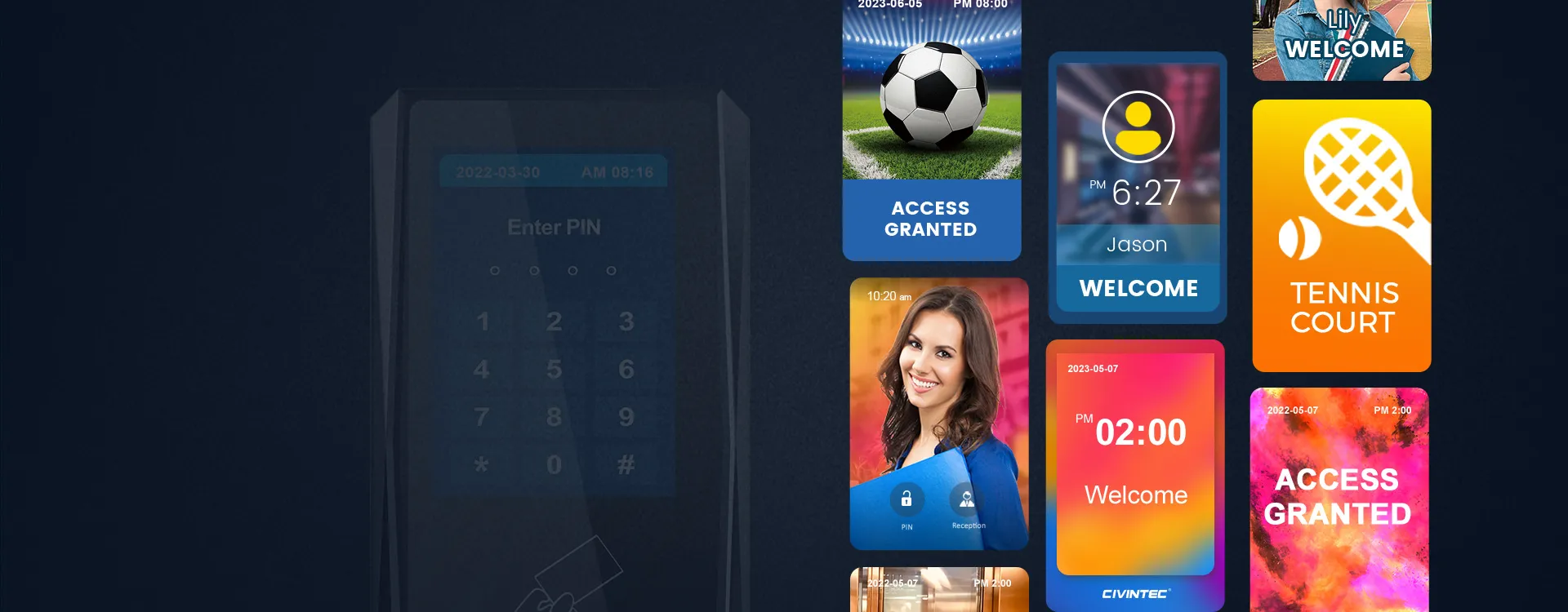

Customizable User Interface

Stylish Linux 3.5" colorful LCD touch screen smart access control terminal bring intuitive and clear feedback to visitor for good user experience. It freely displays any customized pictures with text on screen, Personalized LOGO UI design, easily controlled by server software via HTTP command.

Multifunction Interface for Seamless Work

Support RS485, Wiegand communication protocols, and versatile GPI/O interface, smart relay control and Power Other Ethernet (POE) port to build comprehensive security and IoT systems features of less wiring and cost-save installation.

Multifunction Interface for Seamless Work

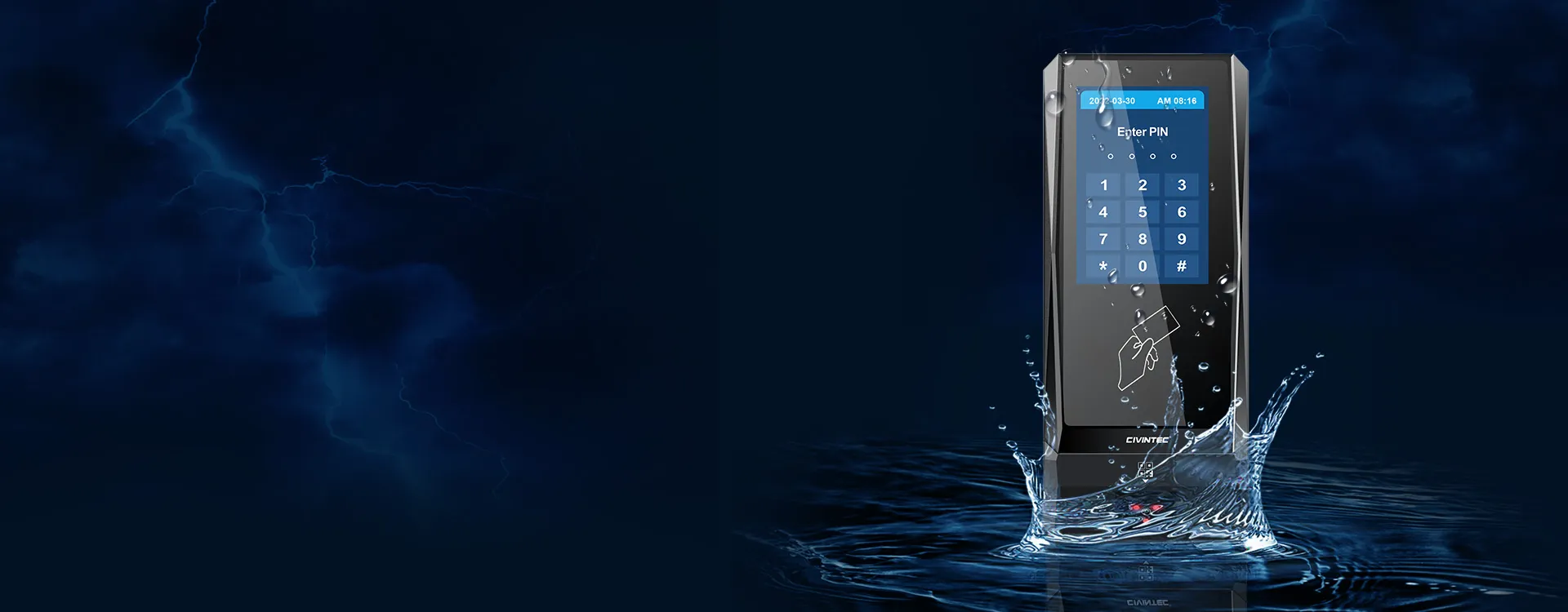

Weather-Resistant Protection

With IP65 ratings, CT9 PRO is weather resistant to rain, dust, strong sunlight, ideal for outdoor use, low temperature various rugged working environments

UV-resistance

UV-resistance

Waterproof

Waterproof

Low temperature

Low temperature

Dustproof

Dustproof

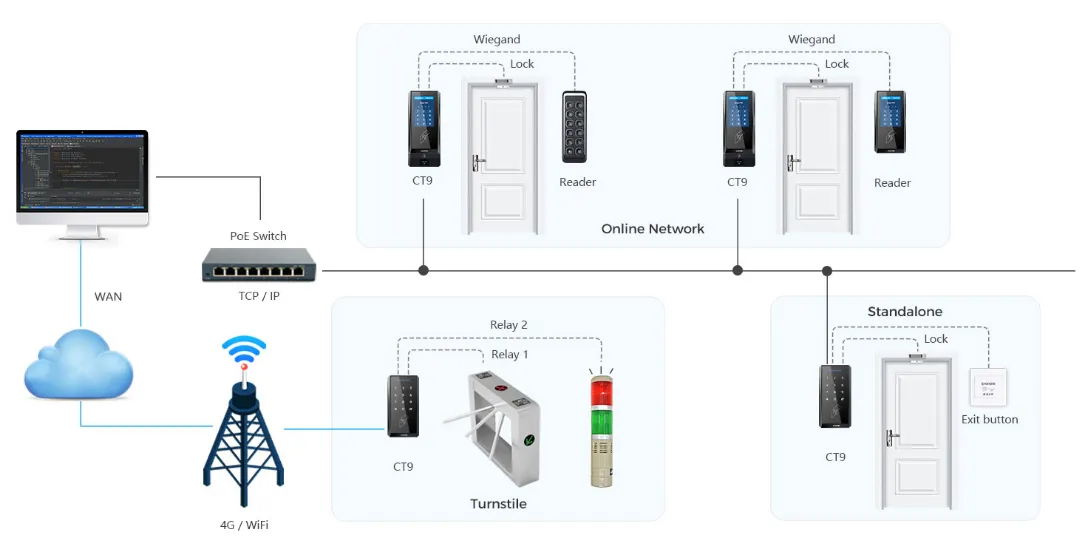

Applications

For Developer

Robust SDK with demo software is offered for the third-party server software integration and development. HTP plug and play hardware testing package with all necessary accessories, software tool to establish full testing environment for easy testing, configuration, fast development and software upgrade.

Configuration

Configuration

Specification




CT9 PROCT9 PRO-DCT9 E
CT9 FAMILY TERMINALS
RFID Contactless Cards

- 125KHz Prox, 125KHz EM

- 13.56MHz Mifare® Classic, Ultralight® , Mifare® Plus, DESFire® EV1/ EV2/ EV3, NFC tags

- 13.56MHz Mifare® Classic, Ultralight®, Mifare® Plus, NFC tags, DESFire® EV1/ EV2/ EV3; HID® iCLASS; HID® Seos

- 125KHz HID® Prox, Indala, EM4100/4102 and HITAG

- 125KHz Prox, 125KHz EM

- 13.56MHz Mifare® Classic, Ultralight® , Mifare® Plus, DESFire® EV1/ EV2/ EV3, NFC tags

Secure Access ModuleISO7816 (T =0,T = 1) 1 SAM module, SAMAV2----------
Mobile CredentialBLE (2.4Ghz), NFCBLE (2.4Ghz), NFC and HID® mobile virtual cardBLE (2.4Ghz), NFC
Barcode / QR scanner

- Decode range: 20mm- 150mm(QR 20MIL)

- Roll/ Pitch/Yaw: 360 °, +55 °, +55 °

- Multiple formats supported (1D & 2D Codes) : QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes.

- Decode range: 20mm- 150mm(QR 20MIL)

- Roll/ Pitch/Yaw: 360 °, +55 °, +55 °

- Multiple formats supported (1D & 2D Codes) : QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes.

- Decode range: 20mm- 150mm(QR 20MIL)

- Roll/ Pitch/Yaw: 360 °, +55 °, +55 °

- Multiple formats supported (1D & 2D Codes) : QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes.

KeypadTouch screen keypad 12 keypad in 4 rows of 3 keysTouch screen keypad 12 keypad in 4 rows of 3 keys12 digit Touch keypad in 4 rows of 3 keys in each row with white LED backlit controlled to ON/OFF and auto
Communication Interfaces

- TCP/ IP(RJ45)

- 4G

- WiFi 2 .4GHz IEEE802.11b/g/n (on request)

- RS485, wiegand input

- TCP/ IP(RJ45)

- 4G

- WiFi 2 .4GHz IEEE802.11b/g/n

- RS485, wiegand input

- TCP/ IP(RJ45)

- 4G

- WiFi 2 .4GHz IEEE802.11b/g/n(on request)

- RS485, wiegand input

I/ O port

3 * Inputs - Door contact, Door exit, Buzzer control

4 * Outputs - Tamper alarm switch, Output Buzzer control, Access Granted, Access Denied

Relay1 or 2 relay outputs1 or 2 relay outputs1 or 2 relay outputs
Fire alarmOn request-----1 Input to connect fire alarm
Operating SystemLINUXLINUXLINUX
Display3 .5” touch screen3 .5” touch screen-----
Access control modeMobile ID, QR Code, RFID Card, PincodeMobile ID, QR Code, RFID Card, PincodeMobile ID, QR Code, RFID Card, Pincode
Online Card Users / Event logsUnlimitedUnlimitedUnlimited
Offline Card Users / Event logs10,000 users / 50,000 logs (more on request)10,000 users / 50,000 logs (more on request)10,000 users / 50,000 logs (more on request)
Working ModeHost mode or Local modeHost mode or Local modeHost mode or Local mode
APB access controlYes, external wiegand readerYes, external wiegand readerYes, external wiegand reader
Indicators

- TP display

- Controllable buzzer and speaker

- TP display

- Controllable buzzer and speaker

- Controllable tri-color LEDs with red, green, blue and amber colour

- Controllable Buzzer and speaker

Housing Dimensions

Basic Model: 24mm(D) * 165mm(H) *84mm(W)

QR/4G/ PoE Model: 45mm(D) * 200mm(H) *84mm(W)

Basic Model: 24mm(D) * 165mm(H) *84mm(W)

QR/4G/ PoE Model: 45mm(D) * 200mm(H) *84mm(W)

Basic Model: 24mm(D) * 165mm(H) *84mm(W)

QR/4G/ PoE Model: 45mm(D) * 200mm(H) *84mm(W)

Power supply

- 12~ 24V DC

- PoE IEEE 802 . 3af

12- 24V DC

- 12~ 24V DC

- PoE IEEE 802 . 3af

InstallationWall mount with terminal block connectorWall mount with terminal block connectorWall mount with terminal block connector
Protection Class

IP65 electric epoxy potted (request waterproof spacer)

Resistant to UV ray (suitable for UV-resistance model)

IP65 electric epoxy potted (request waterproof spacer)

Resistant to UV ray (suitable for UV-resistance model)

IP65 electric epoxy potted (request waterproof spacer)

Resistant to UV ray

Operation Temperature- 20 ℃ ~ 60 ℃- 20 ℃ ~ 60 ℃- 20 ℃ ~ 60 ℃
Operation Humidity0-90% relative humidity non-condensing0-90% relative humidity non-condensing0-90% relative humidity non-condensing
UpgradeSupport OTA software and firmware upgradeSupport OTA software and firmware upgradeSupport OTA software and firmware upgrade



* The specifications are subject to change without notice.
