3.5" Touch Screen Terminal
with Embedded Linux OS & SDK
+
Embedded 4G, WiFi, LORaWAN, TCP/IP
HTTP/HTTPs protocol for both LAN & Internet
+
Embedded Relay Control for smart Lock & Facility Control
Support Both of Host Mode & Local Mode
Experience secure, touch-free access with CT11 by integrating dual-camera facial recognition with Infrared sensor for advanced liveness detection. Anti-spoofing protection distinguishes live human from artificial materials to defend against attacks.

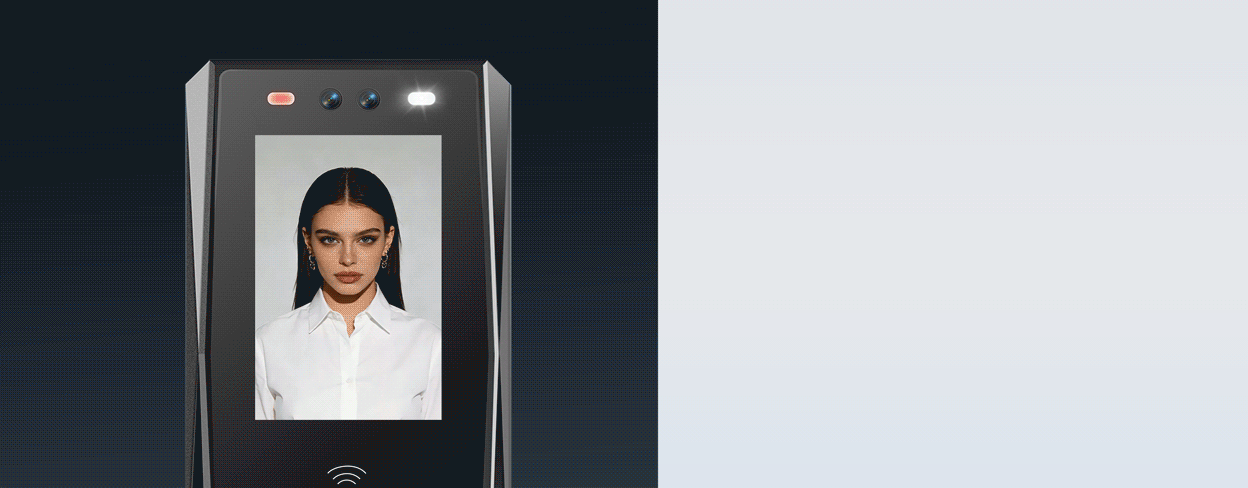

Advanced facial algorithm robustly and seamlessly identifies individuals despite common appearance variations, including makeup, eyeglasses, sunglasses, hats and facial accessories, ensuring reliable authentication without compromising user convenience.
Contactless entry, instant verification. CT11 facial recognition access control delivers fast and secure access in milliseconds.

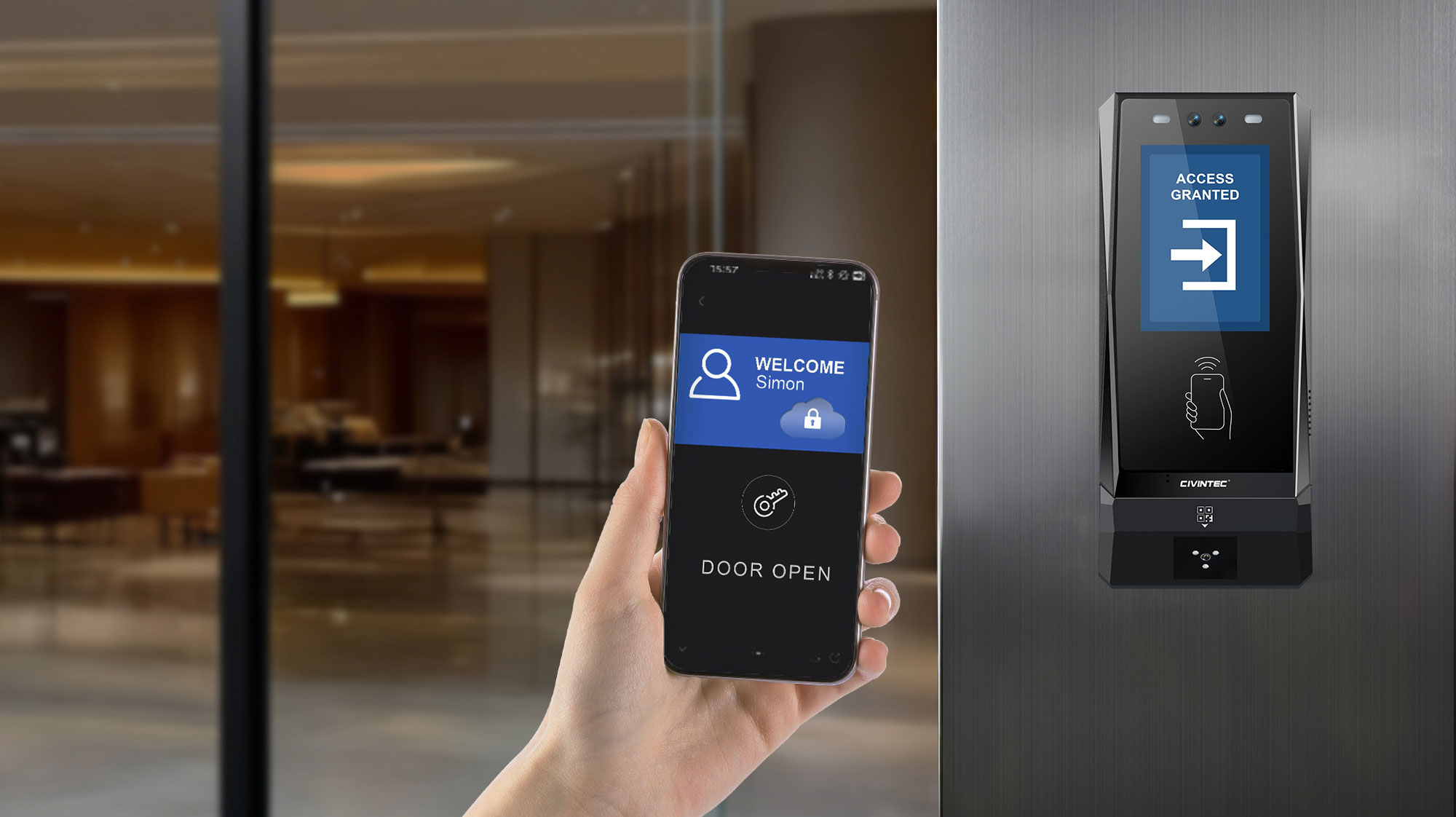

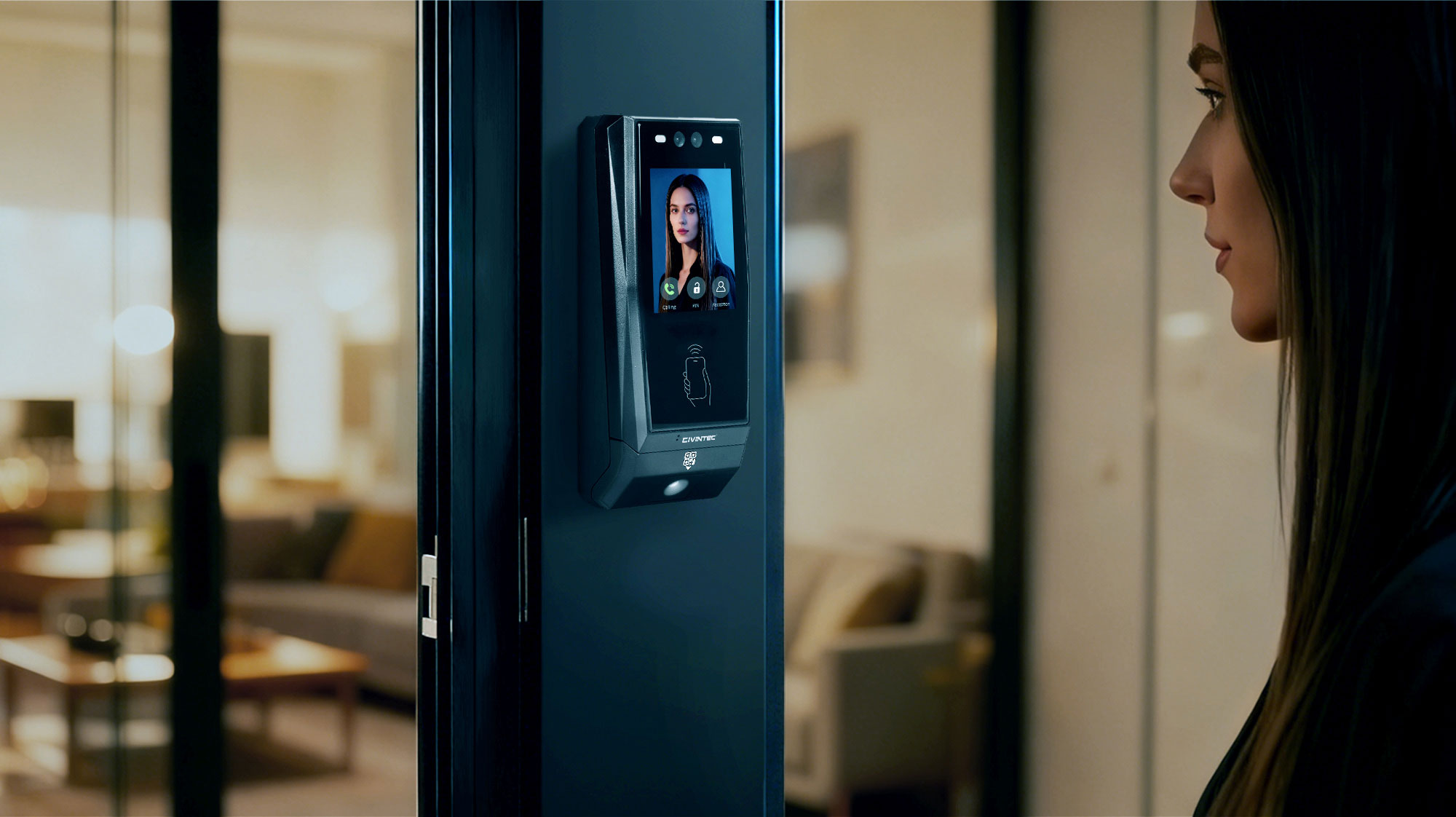

Touch free access control compliant with encrypted BLE and NFC technology to use smart phone as mobile credential

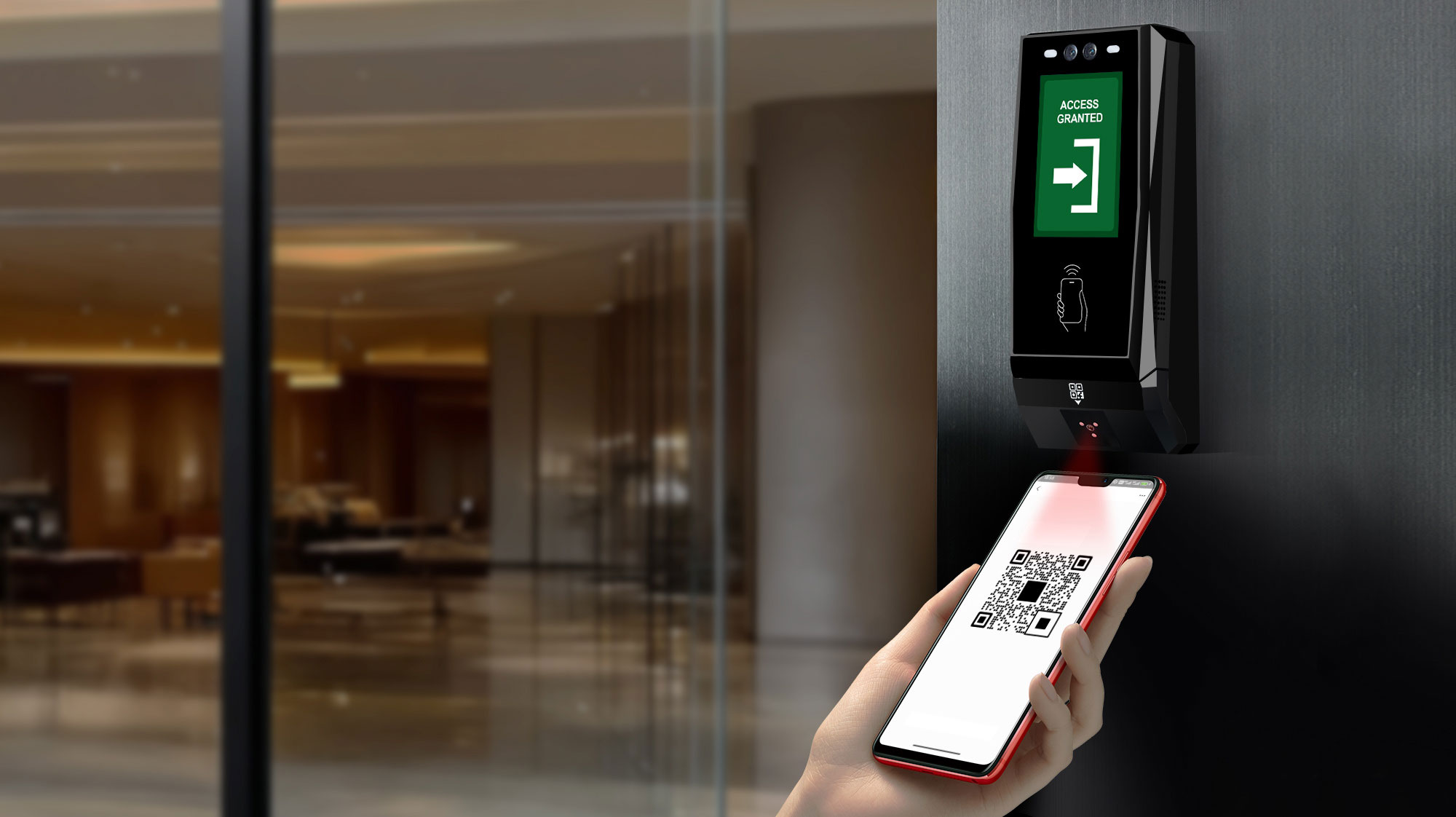

CT11 with assembled QR code scanner supports multi-formats QR Code 1D & 2D codes, QR & Micro QR codes and Barcode, ideal for touch free visitor access control

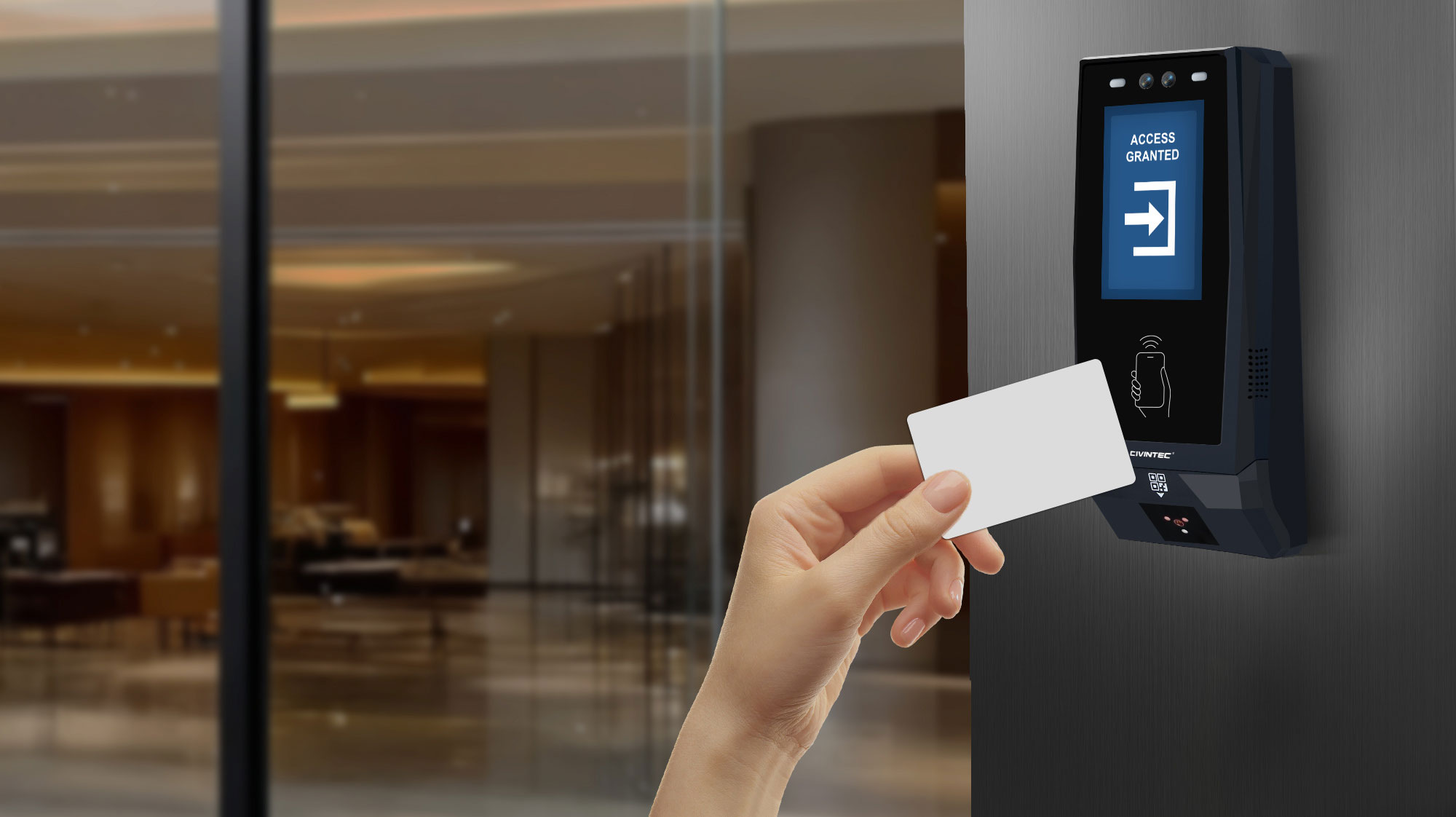

Support both 13.56MHz and 125KHz RFID, compatible with the most popular RFID smart cards including Mifare®，Mifare Plus®, DESFire® smart cards

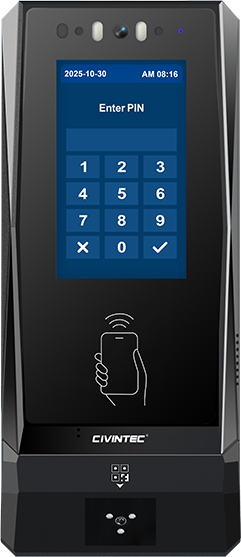

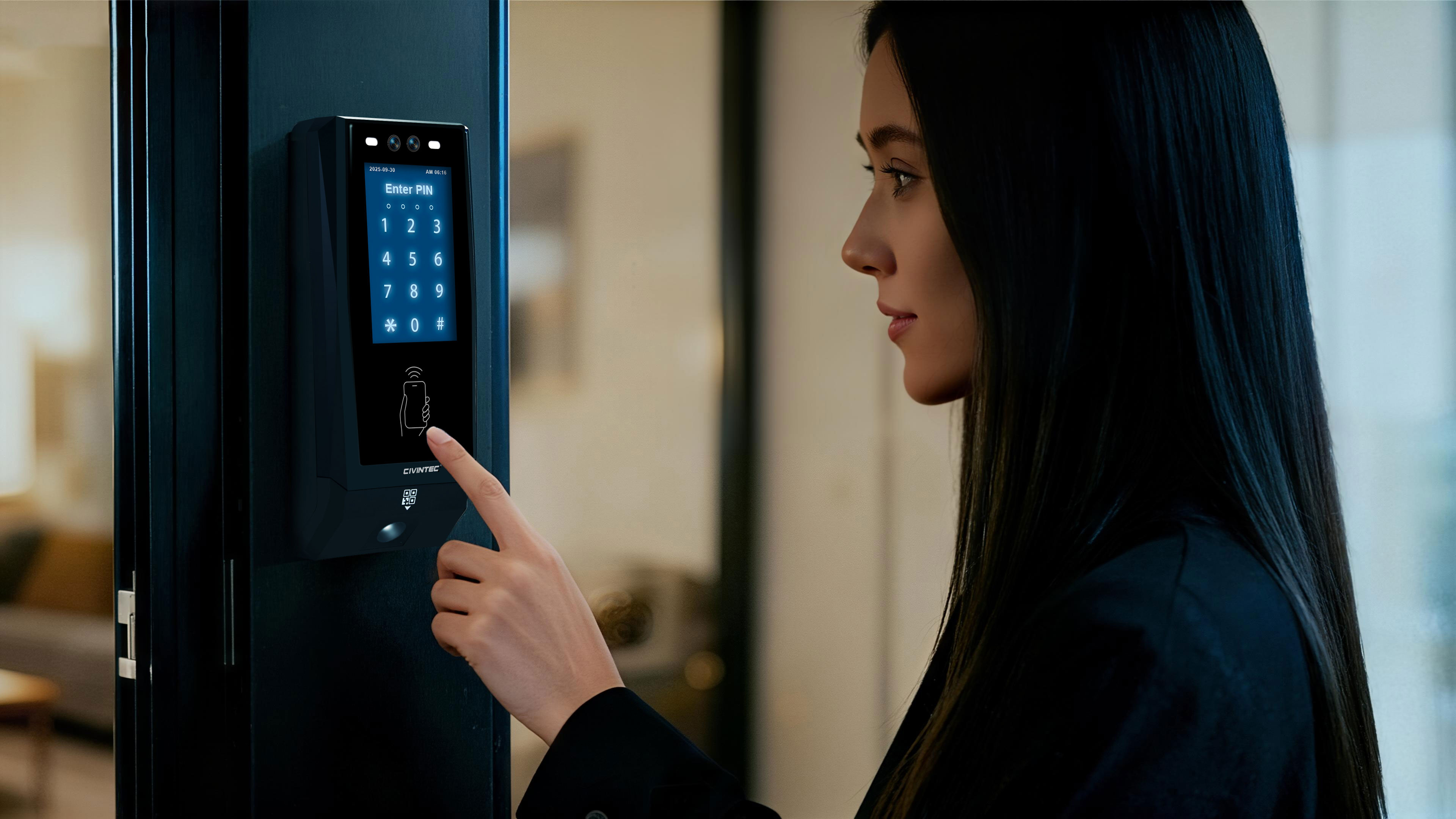

Programmable 4-8 digit length of PIN codes, supports multiple access modes, Card or PIN, Card+PIN, PIN Code Only, Card Only
CT11 enables real-time online remote control of smart locks, turnstiles, and various facilities via a centralized, cloud-based platform. Communication between CT11 and server is secured through
bi-directional encrypted HTTP/HTTPS requests (GET/POST) via versatile connectivity WiFi, LoRaWAN, 4G, and TCP/IP Ethernet (PoE) for diverse network environments.

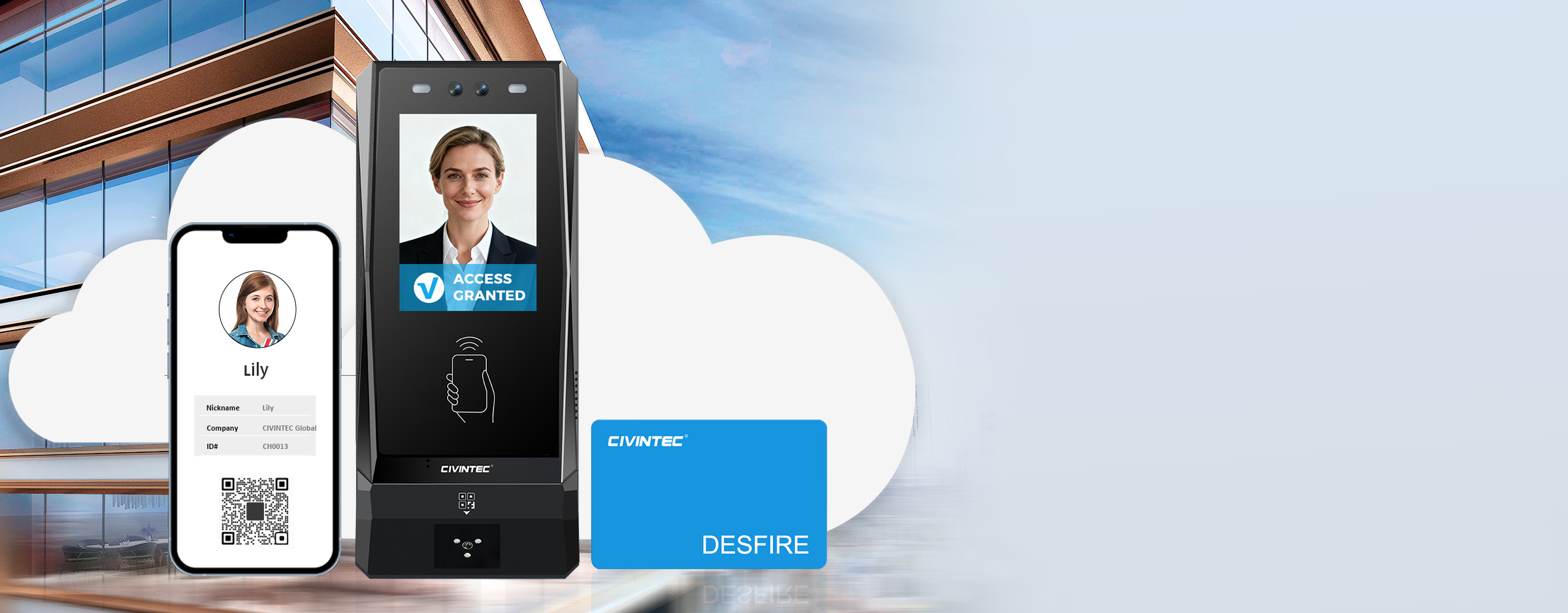

Never lose control - CT11 intelligently monitors network connectivity and automatically switches between online/offline modes while keeping all data in sync.
As an extremely secure encryption system, CT11 implements AES encryption of digital credentials and personal information avoiding the risk of cloning, and also protects data security through encrypted HTTPs communication protocols.

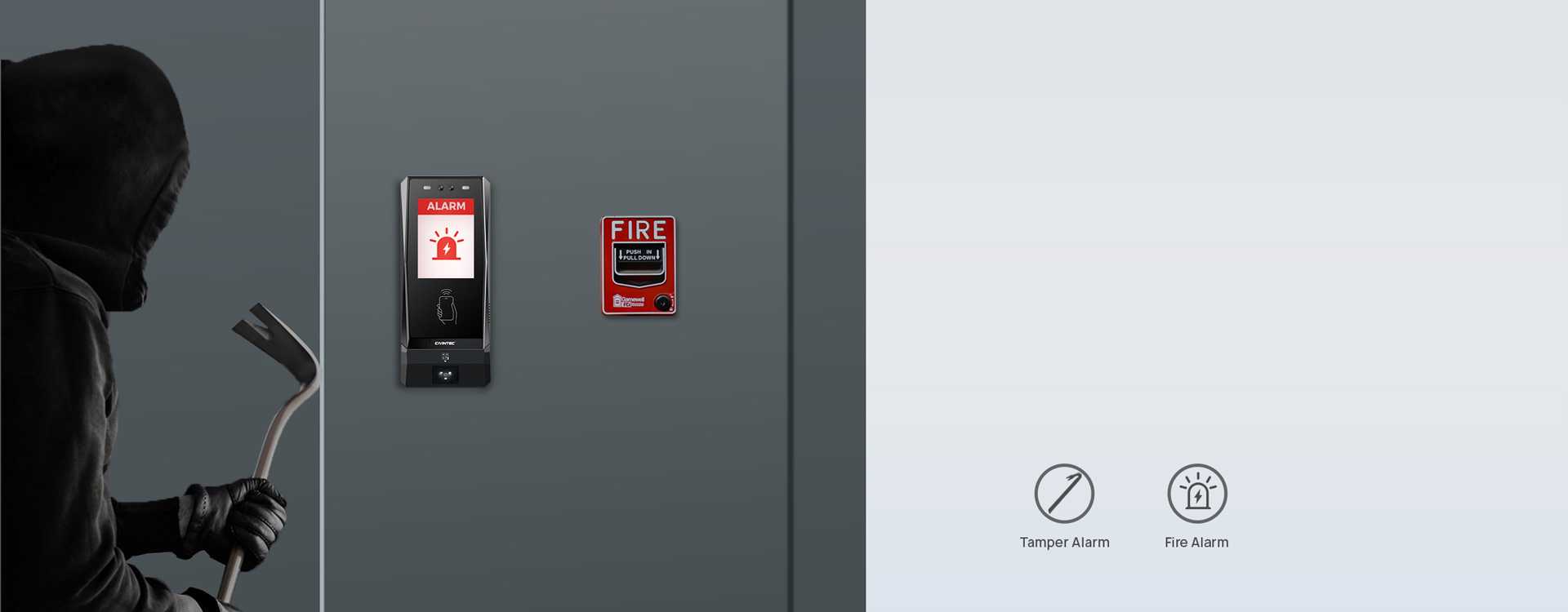

CIVINTEC door access control terminal provides comprehensive security by generating instant alerts for critical events, including unauthorized access, tampering, and fire hazards.

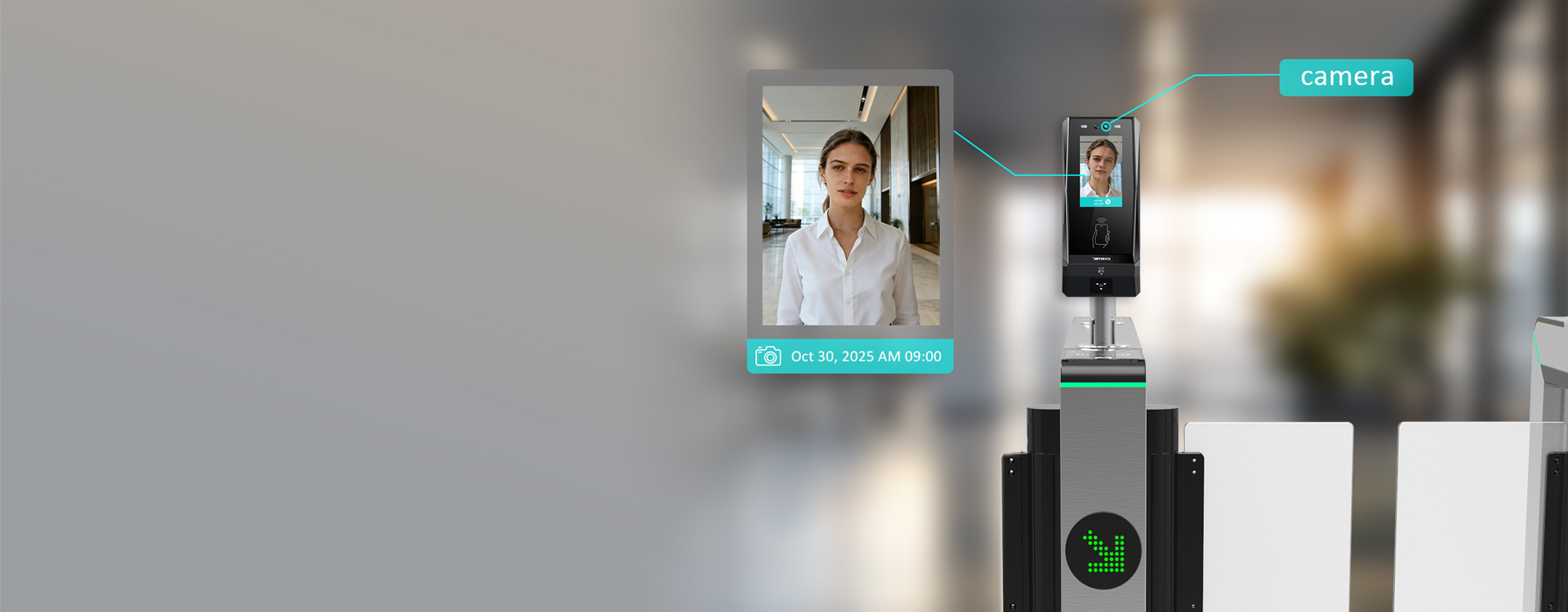

To enhance security and simplify management, the CT11 automatically takes a snapshot upon access. This visual record is then seamlessly synced to the server in real-time or saved locally, providing a clear audit trail.

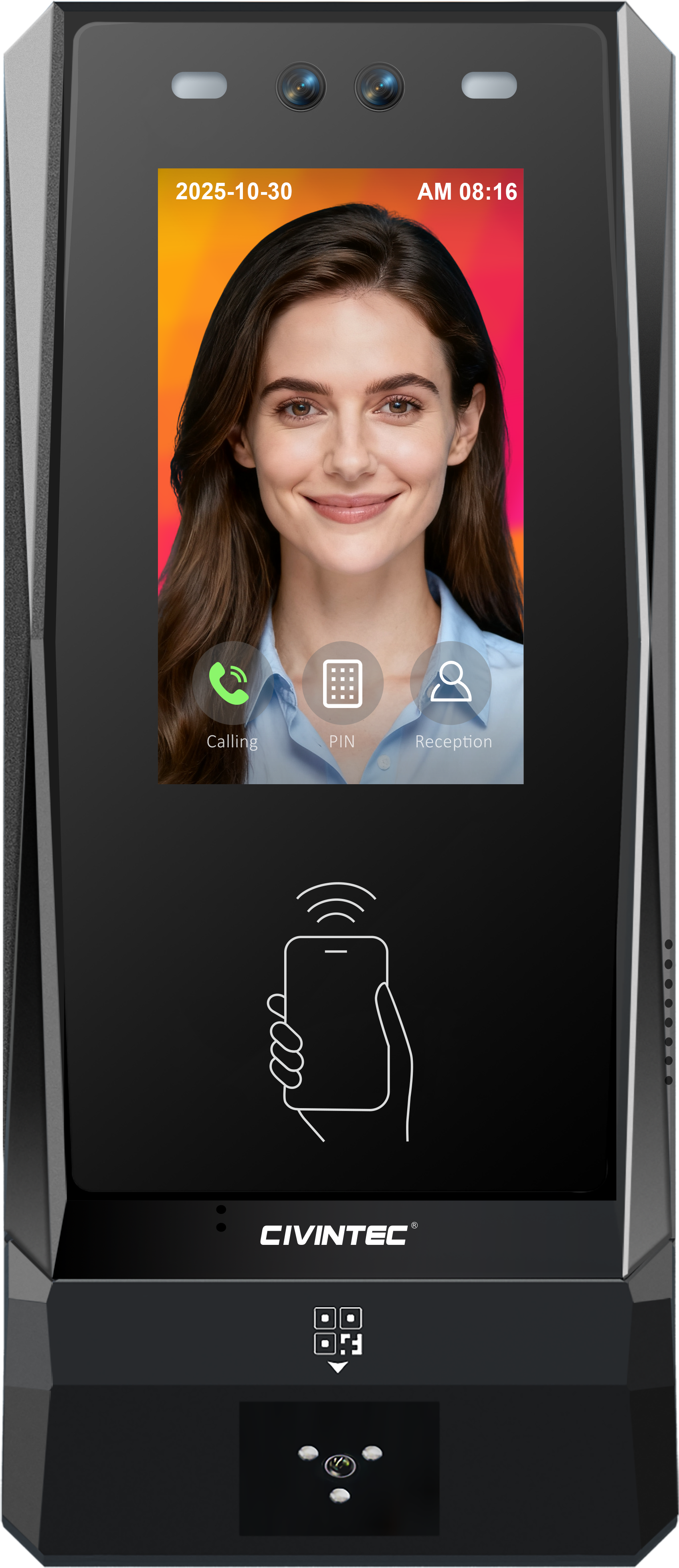

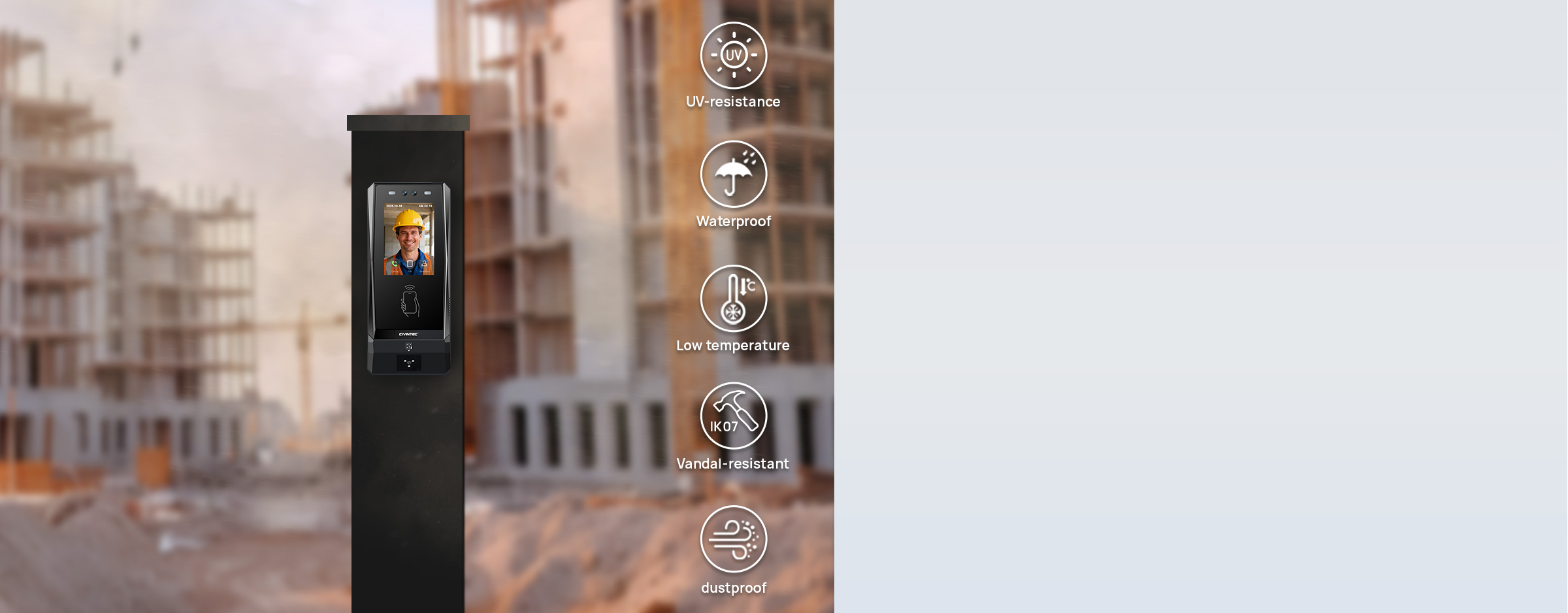

CT11 features a mullion, compact design with a 3.5-inch touch screen, making it ideal for any door environment. Built for durability, its robust weatherproof housing ensures reliable performance outdoors weather resistant to rain, dust, strong sunlight for rugged environment installations

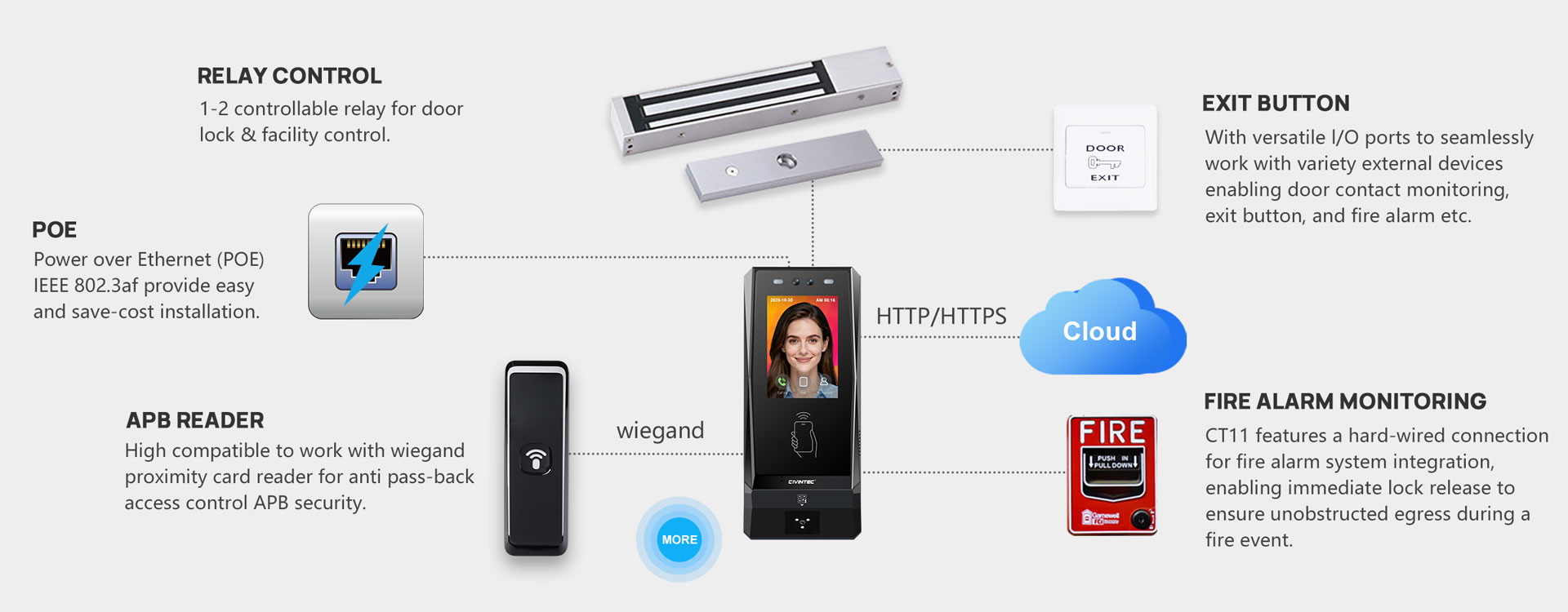

Support RS485, wiegand communication protocols, and versatile GPI/O interface, smart relay control and
Power Other Ethernet (POE) port to build comprehensive security and IoT systems features of less wiring and cost-save installation.

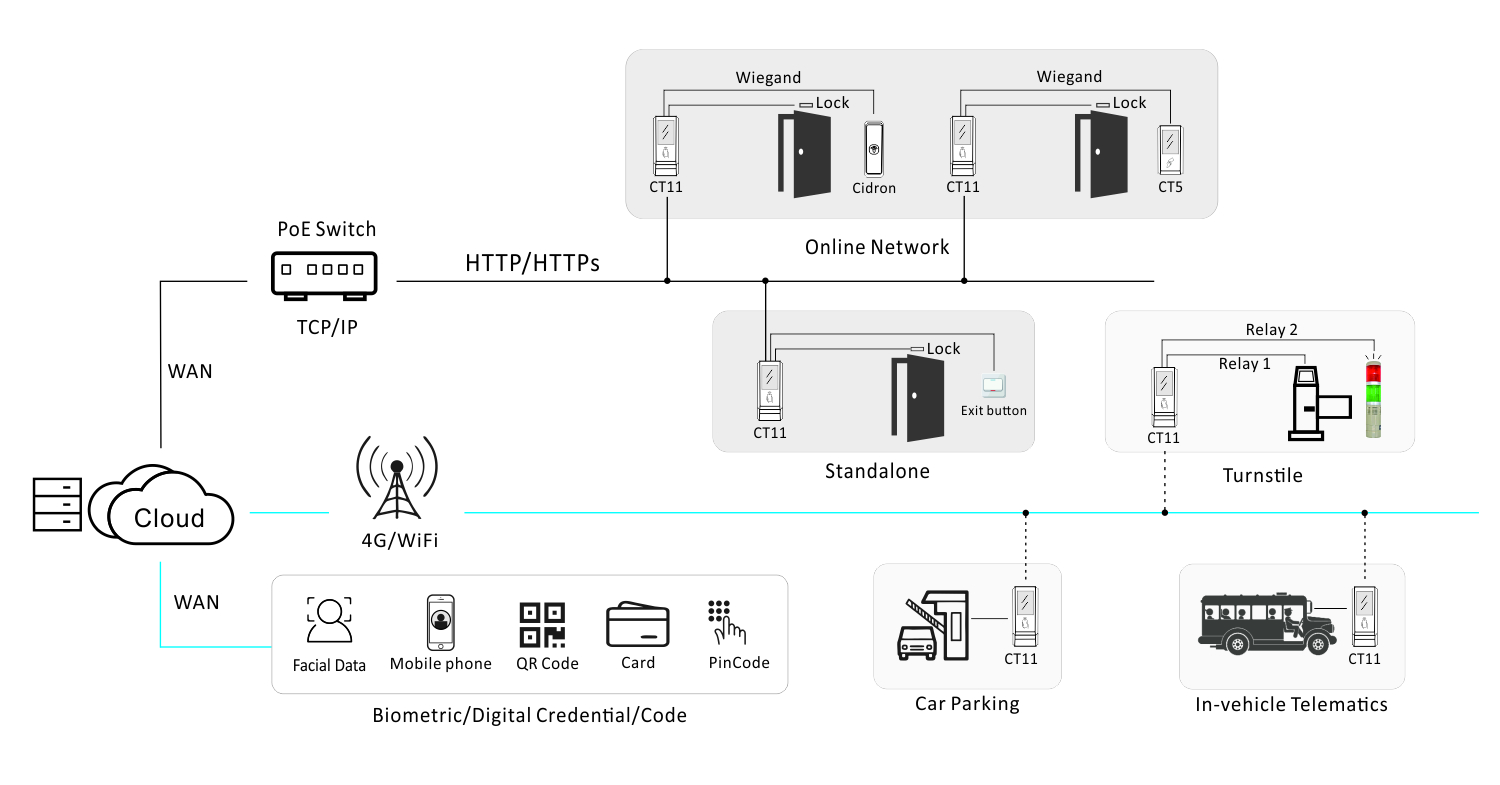

Robust SDK with demo software are offered for the third party server software integration and development. HTP plug and play hardware testing package with Configcard software and all the necessary accessories to establish full testing environment for easy test, configuration, fast development and software upgrade.
 | |
| CT11 | |
| IDENTIFICATION | |
| Face | Recognition Distance: 30-150cm |
| Authentication Speed: 15ms | |
| Anti-Spoofing: Supported | |
| Infrared Senso: Supported | |
| RFID | • 125KHz HID® PROX™, 125KHz EM • 13.56MHz Mifare®Classic, Ultralight®, Mifare®Plus, DESFire®EV1/EV2/EV3, NFC tags |
| Mobile Credential | BLE, NFC(Support BLE in iOS, and NFC/BLE in Android) |
QR Code Multiple formats supported(1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes. | |
| Keypad | Supported |
| CAPACITY | |
| Max. Face Users | 50,000 users (Based on one face enrollment per user) |
| Max.Card Users | • Local mode: 50,000 users • Online mode: Unlimited |
| Max.Event Logs | • Local mode: 200,000 logs(more on request) • Online mode: Unlimited |
| Max.Image Logs | • Local mode: 7,000 logs |
| GENERAL | |
| Operating System | LINUX OS |
| Display | 3.5" touch screen (Resistant to UV ray ) |
| LCD Resolution | 480*800 Pixels |
| Camera | 2MP camera with Autofocus and LED Flash |
| Audio | High-quality sound Speaker |
| Intercom | VoIP |
| Indicator | • TP Display • Controllable buzzer and speaker |
| INTERFACE | |
| Ethernet | TCP/IP(RJ45) |
| WiFi | 2.4GHz IEEE802.11 b/g/n |
| LoRaWAN | Supported |
| 4G | Supported |
| Network Protocol | HTTP/HTTPs |
| BLE | BLE 5.3 |
| RS485 | Supported |
| Wiegand | 1*wiegand input(26-1024bit) |
| I/O port | 3*Inputs-Door contact, Door exit, Buzzer control 4*Outputs-Tamper alarm switch, Output buzzer control, Access Granted, Access Denied |
| Relay | 1~2 relay outputs |
| Fire alarm | Support fire alarm signal input |
| INSTALLATION | |
| Power Supply | • DC 12~24V • PoE IEEE802.3af |
| Dimensions | 47.7mm(D)*198mm(H)*83.6mm(W) |
| Protection Rating | • IP65 electric epoxy potted • Resistant to UV ray |
| Impact Protection | IK07 |
| Operation Temperature | -20~60℃ |
| Upgrade | Software and firmware upgrade supported |
* The specifications are subject to change without notice.
