Case Study

Smartphone-based access is secure, flexible, and future-proof, making it ideal for offices, modern condominium and smart cities. As digital keys become the new norm, they offer compelling advantages over traditional access cards. CT5 mobile access reader is economic solution to integrate Mobile Access into your exisiting access control system to bring more benefits and marketing oppertunities.

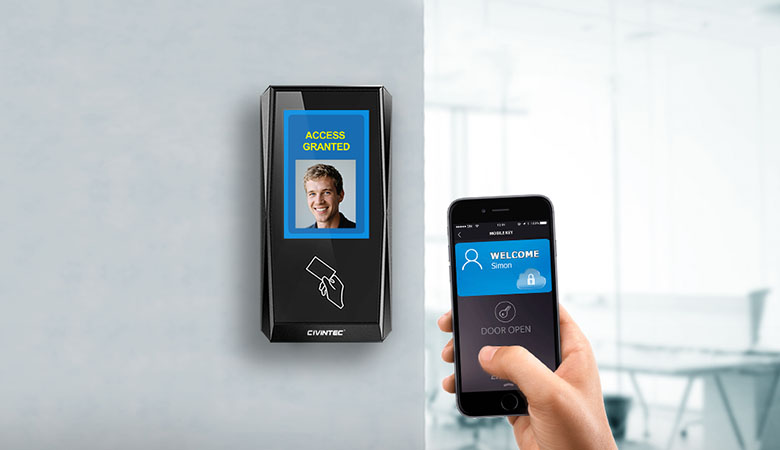

CT5 family reader supports both NFC and BLE in Android, and BLE in iOS to work with the most popular smart phone on the market. Smartphones is access key to unlock door and display visitor’s photo on the 3.5" touch screen, providing a more intuitive and clear information to confirm their identity.

• Convenience

No need to carry physical cards or keys—just use your phone, which you always have with you. Eliminates the risk of losing or forgetting an access card.

• Enhanced Security

Encrypted NFC and BLE technology ensures anti-cloning and anti-hacking protection, with remote credential revocation for lost or stolen smart phone —eliminating vulnerabilities inherent in traditional cards.

• Remote Access & Sharing

To use CT5 mobile access reader with your access control system, the mobile credentials can be real-time remote controlled and managed through cloud platforms. Grant temporary access to guests or service providers via apps. Receive real-time notifications when someone enters or exits.

• Cost & Sustainability

Reduces the need for RFID plastic cards, lowering replacement costs and environmental impact.

• Scalability & Smart Building Compatibility

Easily integrates with IoT-based access systems as hotels, offices, apartments. Supports touchless entry, improving hygiene.

CT5 touch screen reader is with complete reader functionality and support the most of brand controllers that have Wiegand or RS485 ODSP communication interfaces. Support Open Supervised Device Protocol (OSDP) work with your existing controller system and fully control the reader as custom text and images, audio buzzer to display custom messages with images on reader screen.

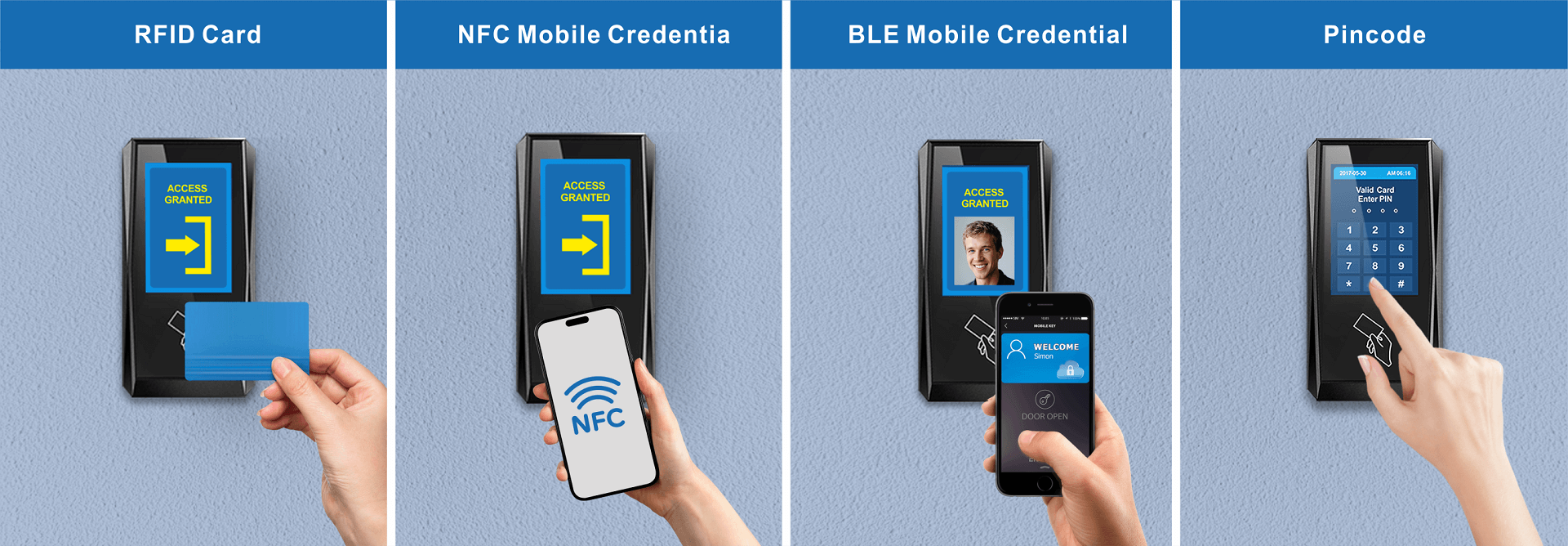

Not only support mobile credential, CT5 also supports rich RFID smart card from 13.56Mhz to 125Khz, as Mifare®, Mifare® Plus, DESFire® EV1/EV2/EV3, with embedded SAM's gives protection to further increase the security of storing encryption key for high security industry. It supports ISO7816 (T=0, T=1) 1 SAM module with AV2/AV3(on request) supports with MIFARE ® SAM AV2/AV3 which gives the possibility to further increase the security of storing encryption keys (Evaluation Assurance Level, for EAL5+/EAL6+) and also allows for diversification of encryption keys.

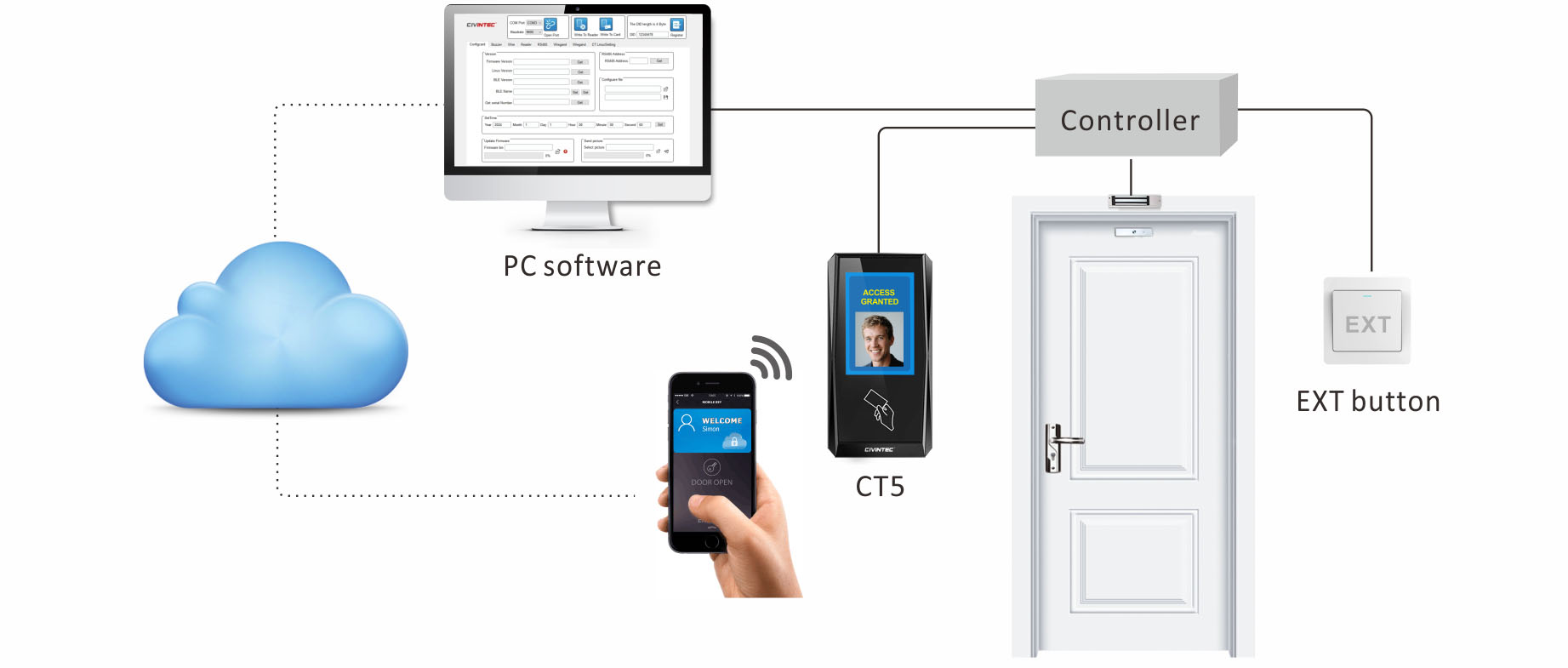

With IP65 ratings and UV-resistance, it is weather resistant to rain, dust, strong sunlight, ideal for various outdoor environments installations. For high secure level access control, CT5 is ideal to install outside out to work with a secure relay controller installed inside, managing the door lock control. This physical isolation ensures tamper attempts at the reader do not impact the control logic.

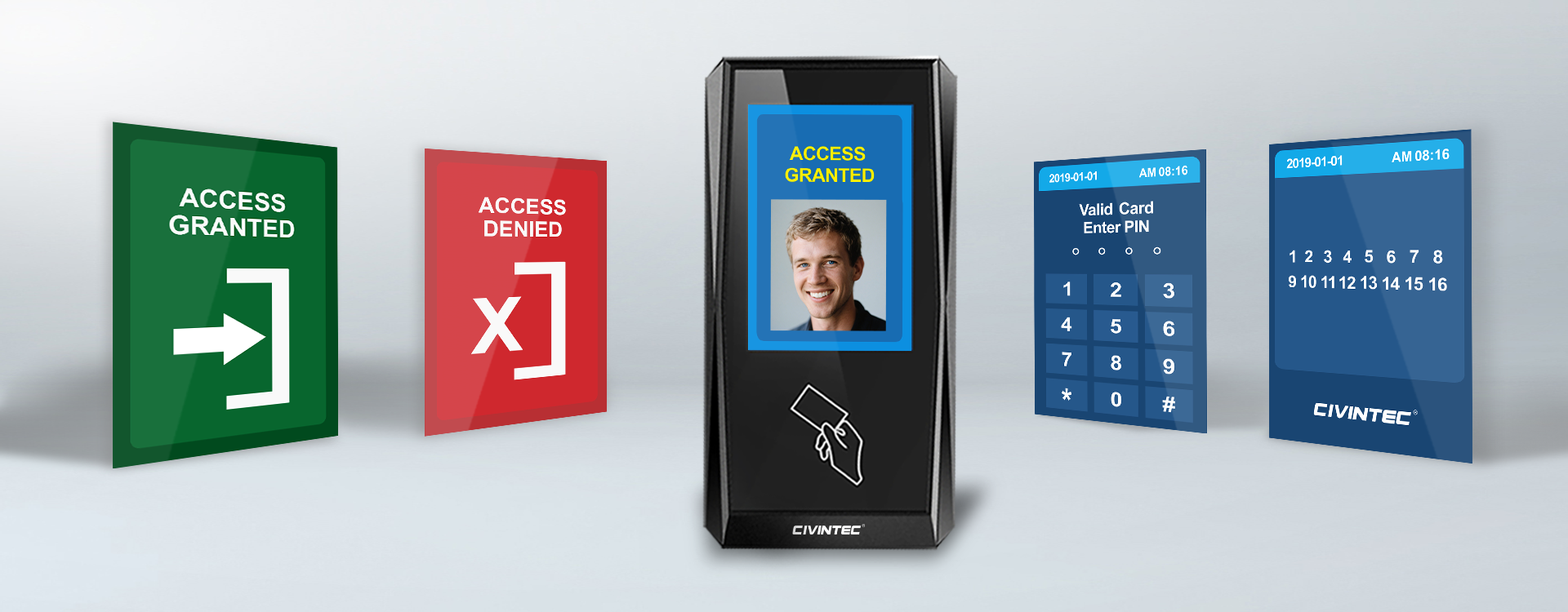

CT5 is a highly customizable reader designed to meet diverse user needs, with adjustable audio features (volume and buzzer) and display customizable interface for active with/without keyboard and a custom option menu etc. CT5 comes with user-friendly “Configcard” software to easily get and configure card reader’s setting. CT5 supports configuration card easy to download all readers programable parameters such as indication behaviours, custom unique encryption keys and communication interface settings to Configuration card for reader quick setting.
