CT10CNew

Quick Look

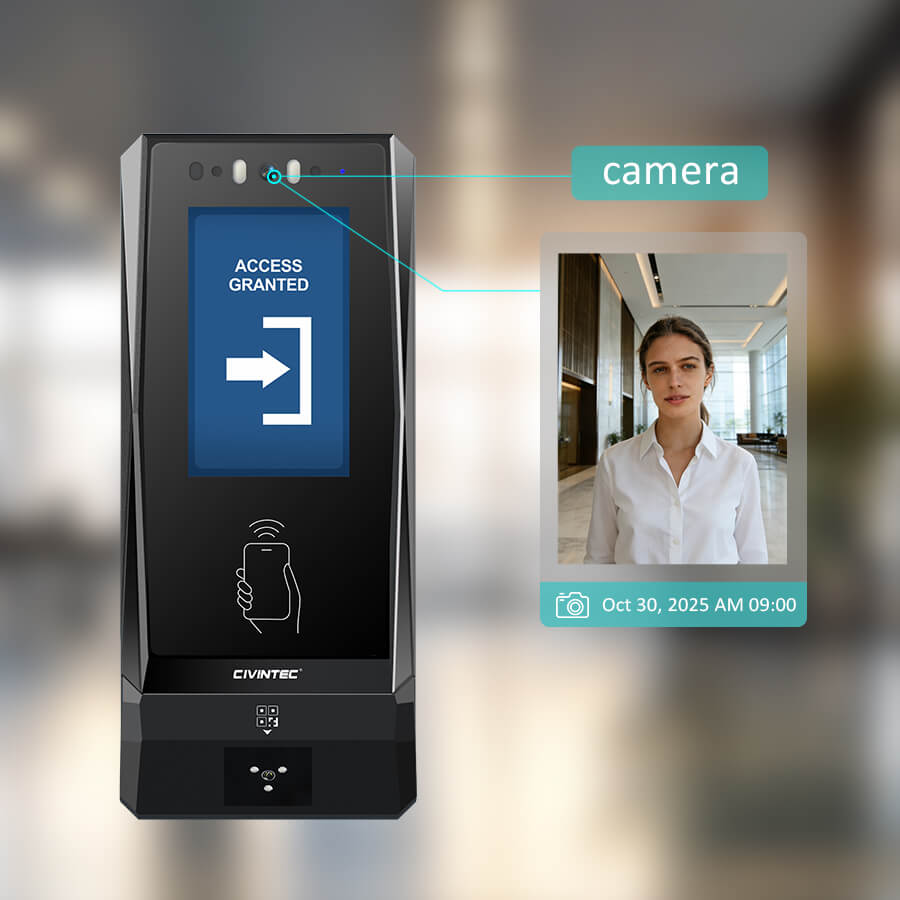

CT10C is advanced access control terminal with camera and VolP intercom that incorporates 4-factors of authentication that encompasses, BLE and NFC mobile credentials, dual-frequency RFID smart cards, QR/barcode scanning, and touch keypad input. This multi-methods approach enables truly contactless access while maintaining advanced security standards for both regular users and visitors.

The Linux-based access control terminal is designed as server centralized system, supporting multiple connectivity options including Ethernet, 4G, WiFi, and LoRawAN for real-time online monitoring in HOST mode or fully autonomous operation in standalone Local mode, guaranteeing uninterrupted access control.

Furthermore, Linux based CT10C is supported by a robust SDK with comprehensive libraries, API, encrtyped high secure HTTPs protocol and DEMO for developer to rapidly build highly customer's own professional and strong applications and requirements tailored to diverse industry needs. It also provides API for developer to display customized and intuitive Ul, background image and real-time TEXT on 3.5" touchscreen. CT10C SDK provides developers with a simple, user-friendly interface, offering high flexibility and extensibility.

Advantages

 Intuitive Touch Screen

• 3.5” Touch Screen Linux OS with SDK

• Programmable UI, background image with text content

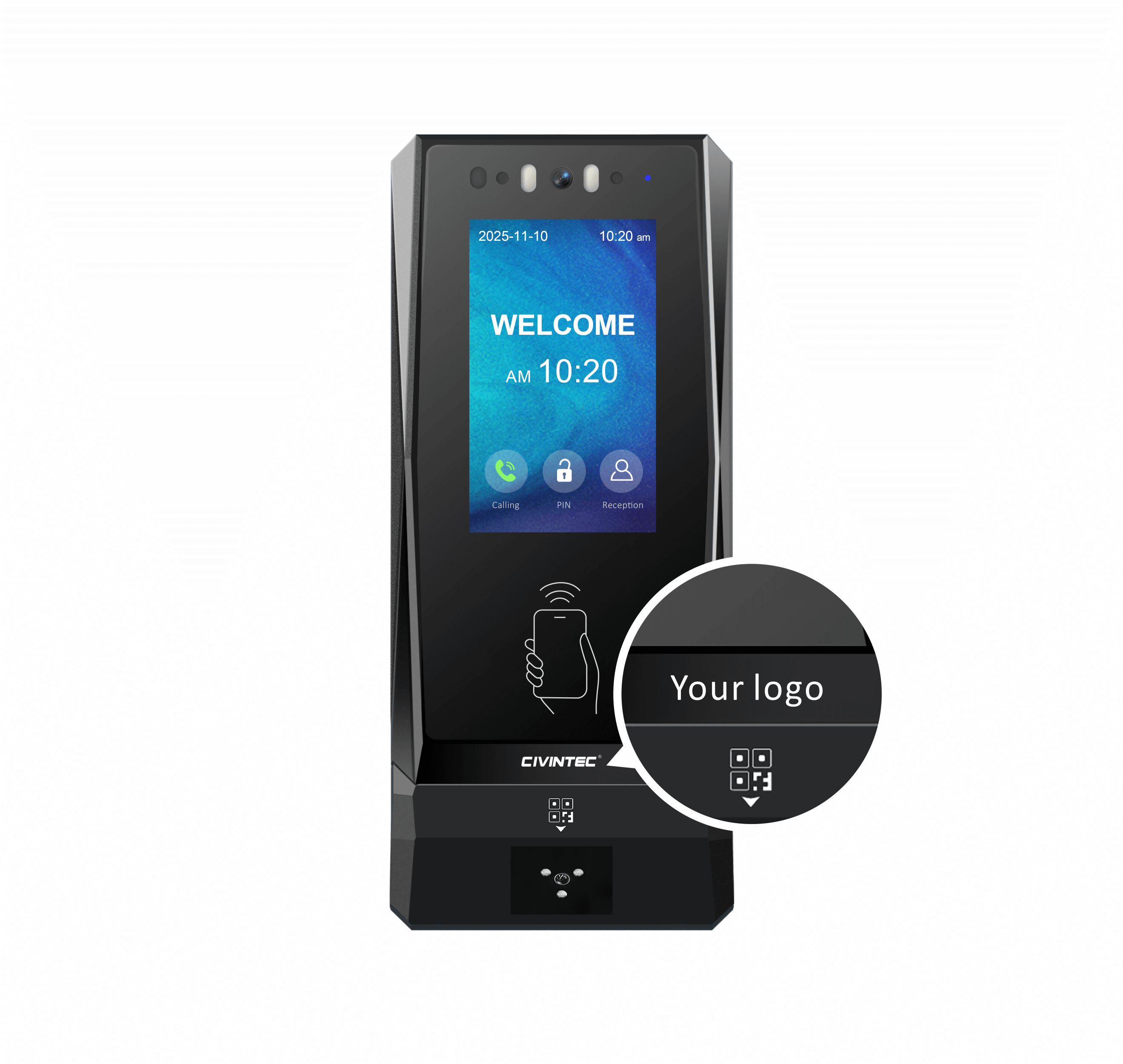

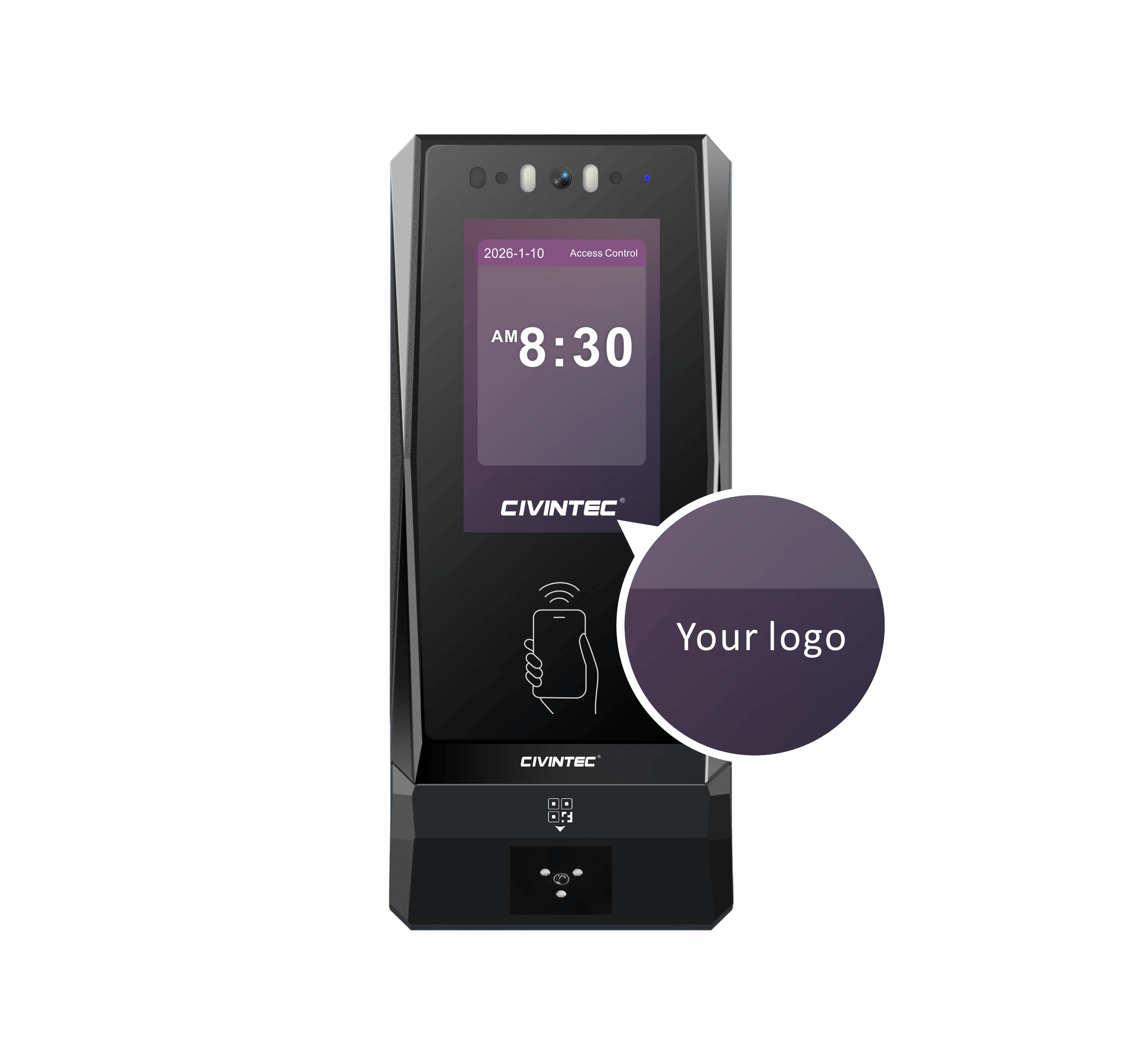

• Branding LOGO modification

 Multi-tech Mobile Credential

• Support BLE in iOS, NFC/BLE in Android, Configurable BLE Broadcast Range

• QR Code scanner with high-speed readability and large data capacity

• With dynamic QR Code generator to improve security for application requirements

Cloud-Based System

• Support both local offline and online mode under server remote control in real time

• HTTP/HTTPs encrypted communication protocol

Function Keys

• Function Keys record different activity as clock in/out, overtime, breaks and other events

• Programmable definitions to trigger specific events Customizable to expand and add more keys

Easy Upgrade

• Server Remote Update via TCP/IP, WiFi, 4G

• BLE OTA update - wireless firmware updates

• Use ConfigCard software update Linux software and firmware

To Meet Requirement of The Highest level of Security

• RFID credentials are protected by DESFire® EV1/EV2/EV3 with AES encryption and MIFARE ® SAM AV2/AV3 (EAL5+/EAL6+)


• BLE credential is protected by AES encryption

• BLE and QR code credential extended to accommodate more data to strengthen credential encryption

• HTTPs protocol with enhanced CA certificate verification

• High-security access control system working with CN56X0B reader to achieve indoor-mounted relay controlling door lock for high security

Access Control Toggle Function

• CT10C toggle function allows instant door status switching between locked mode (no access), unlocked mode (free access), and normal access control mode (validates permissions) with a HTTP/HTTPs command from cloud server.

Rich I/O port

• CT10C is with embedded 1~2 Relay output design for lock and facility control and input for Fire Alarm system integration

For developer

• Software Development Kit  (CT10C SDK)

CT10C provides SDK for customer's software development or the third party software system integration for general applications build. CT10C SDK offers developer guidance,libraries,API, HTTP/HTTPs protocol, alongside ConfigCard software, robust demo software including BLE, NFC and QR credentials, server demo and rich example codes to greatly accelerate software development.HTTP and encrypted HTTPS protocols are provided for developer to establish communication between CT10C and user's server software high security and stability.

With its extensive APl library, developers can effortlessly build customized solutions tailored to unique application across industries from corporate offices to industrial facilities. The SDK further empowers developers to fully customize intuitive Ul interfaces, display branded backgrounds, and present real-time text information on the 3.5-inch touch screen. This flexibility facilitates a tailored user experience and ensures a unified brand presence.

• Hardware Testing package (HTP) and Configuration software

CT10C supply HTP - plug & play hardware testing package for developer. It includes Configcard software and all the must-have accessories to establish full testing environment for terminal test, full functions configuration, software development and firmware/system upgrading.
