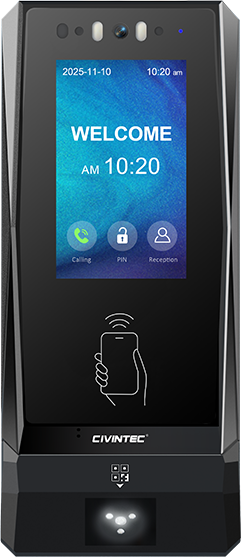

3.5" Touch Screen Terminal
with Embedded Linux OS & SDK
+
Embedded 4G, WiFi, LoRaWAN, TCP/IP
HTTP/HTTPs protocol for both LAN & Internet
+
Embedded Relay Control for Lock & Facility Control
Support Both of Host Mode & Local Mode

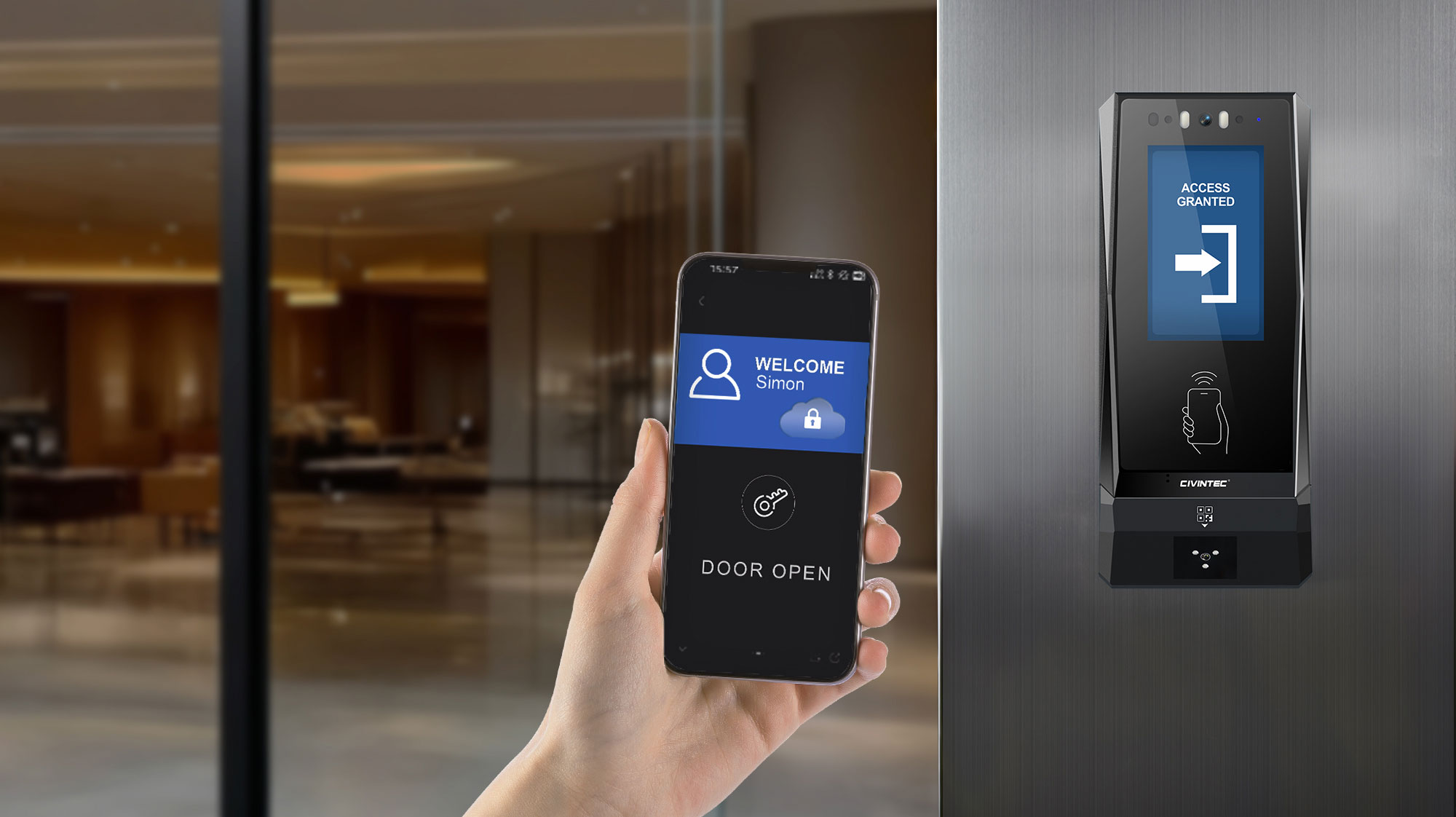

Touch free access control compliant with encrypted BLE and NFC technology to use smart phone as mobile credential

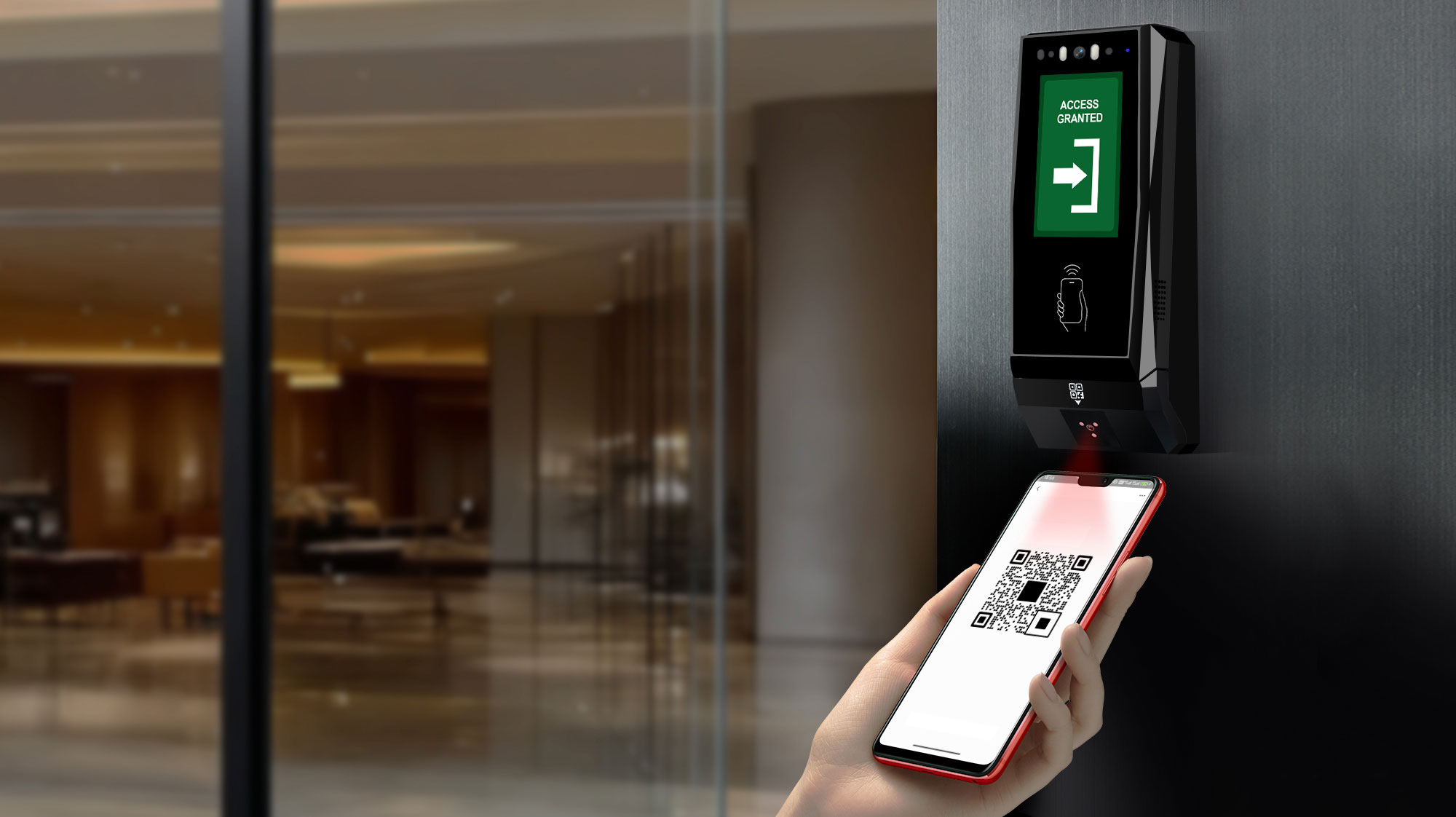

CT10C with assembled QR code scanner supports multi-formats QR Code 1D & 2D codes, QR & Micro QR codes and Barcode, ideal for touch free visitor access control

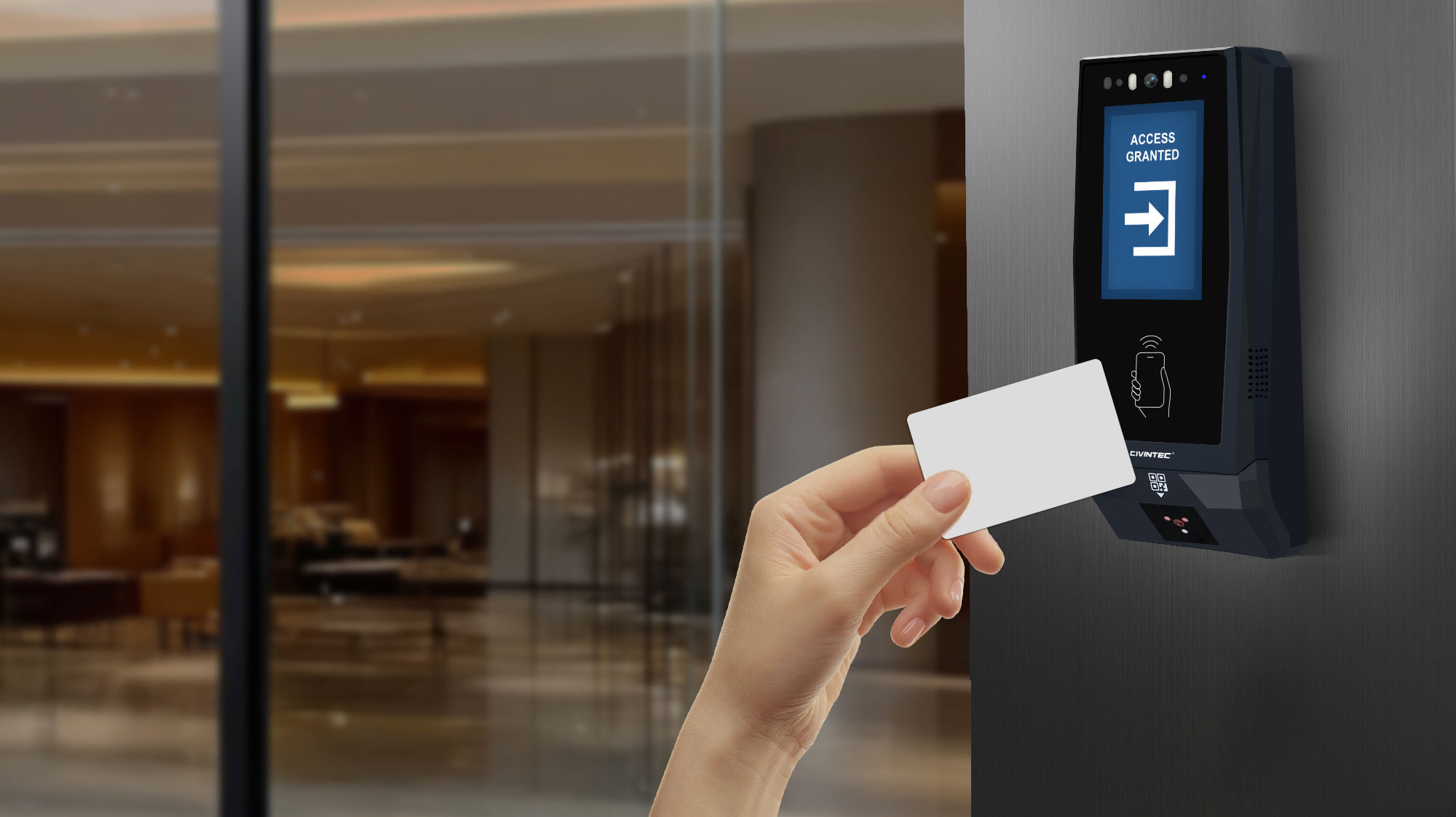

Support both 13.56MHz and 125KHz RFID, compatible with the most popular RFID smart cards including Mifare®，Mifare Plus®, DESFire® smart cards

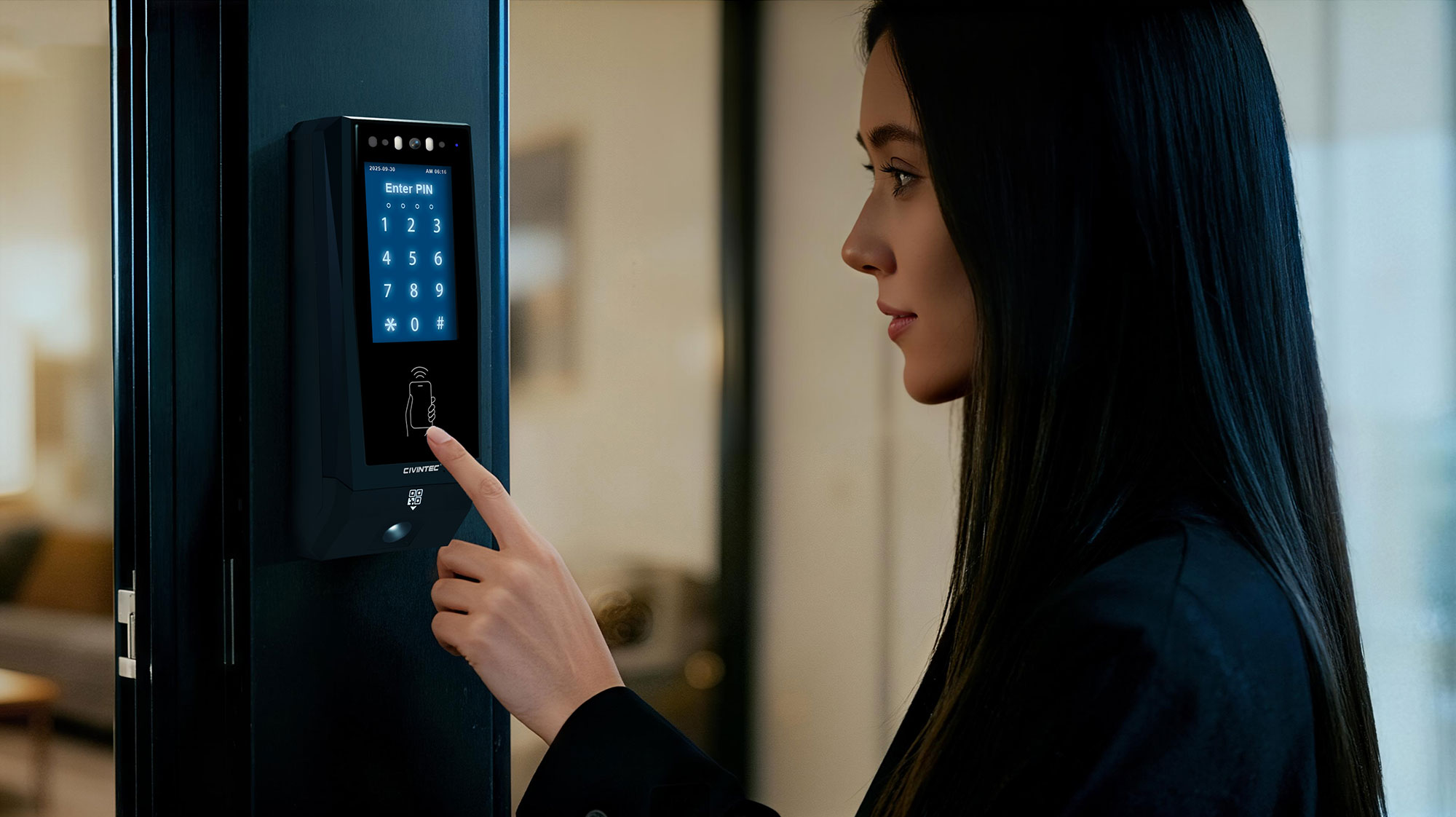

Programmable 4-8 digit length of PIN codes, supports multiple access modes, Card or PIN, Card+PIN, PIN Code Only, Card Only

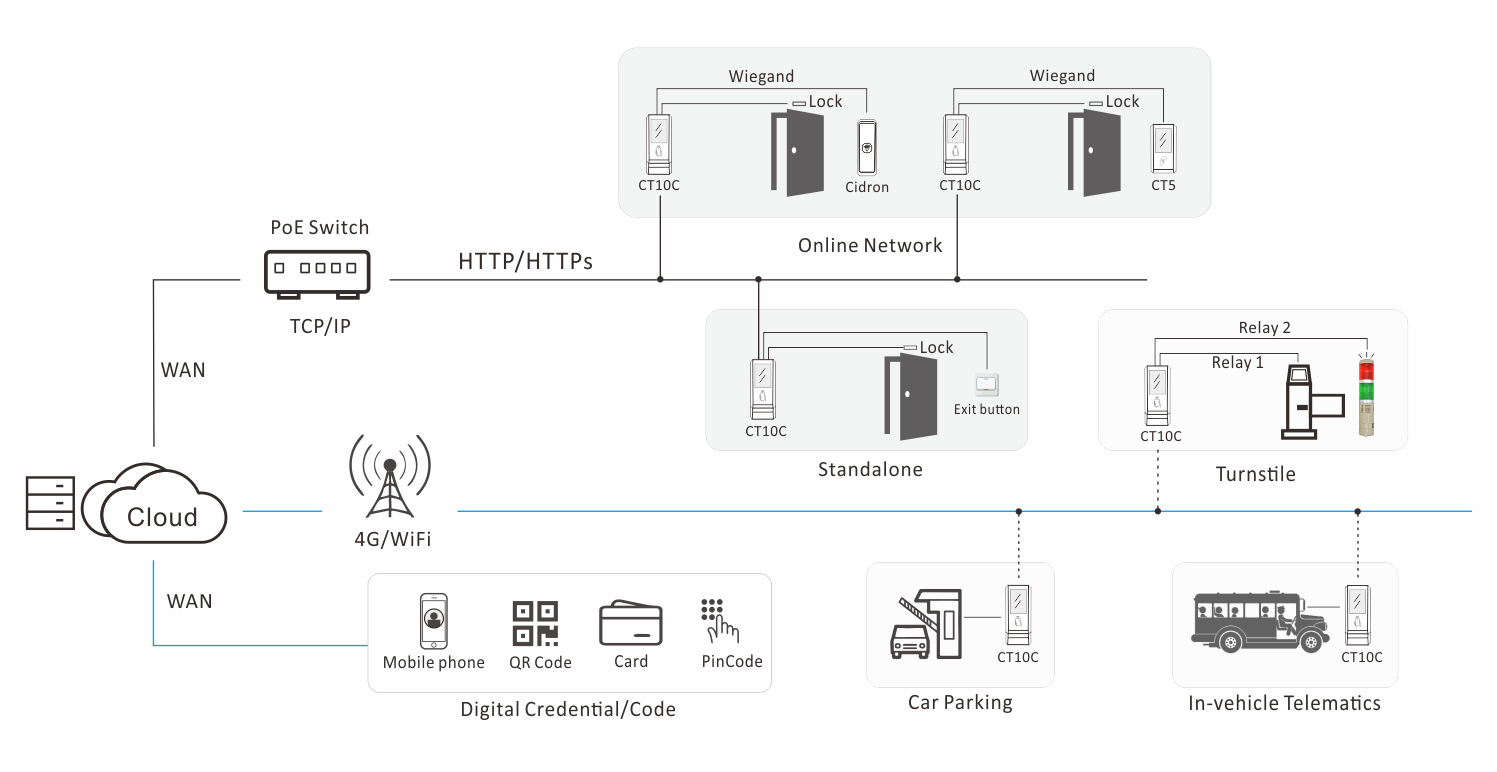

CT10C enables real-time online remote control of door locks, turnstiles, and various facilities via a centralized, cloud-based platform. Communication between CT10C and server is secured through bi-directional encrypted HTTP/HTTPS requests (GET/POST) via versatile connectivity WiFi, LoRaWAN, 4G, and TCP/IP Ethernet (PoE) for diverse network environments.
Never lose control - CT10C intelligently monitors network connectivity and automatically switches between online/offline modes while keeping all data in sync.
As an extremely secure encryption system, CT10C implements AES encryption of digital credentials and personal information avoiding the risk of cloning, and also protects data security through encrypted HTTPs communication protocols.

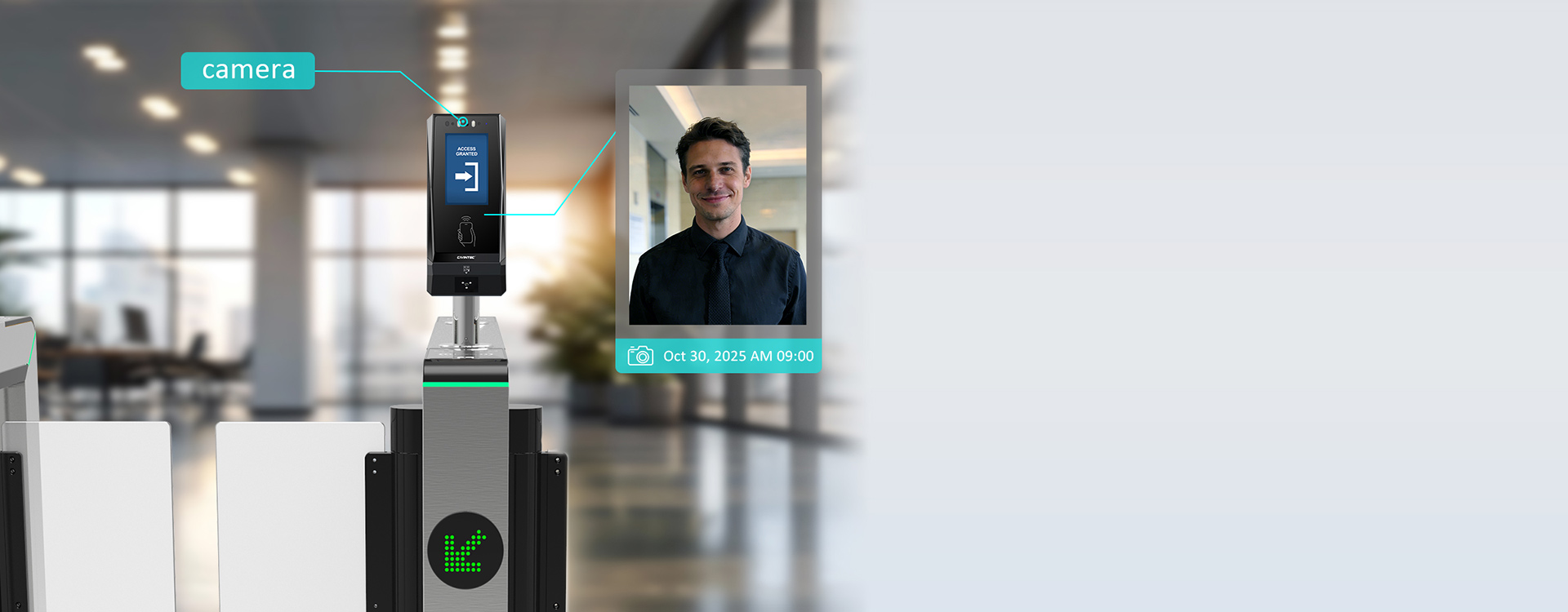

To enhance security and simplify management, the CT10C automatically takes a snapshot upon access. This visual record is then seamlessly synced to the server in real-time or saved locally, providing a clear audit trail.
CIVINTEC door access control terminal provides comprehensive security by generating instant alerts for critical events, including unauthorized access, tampering, and fire hazards.

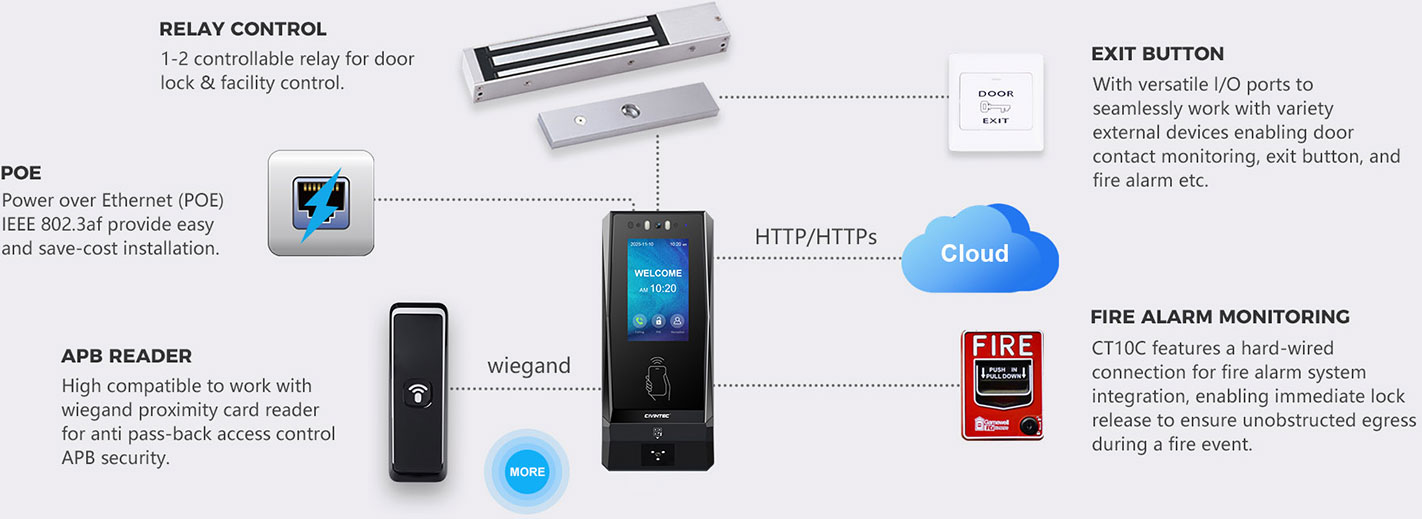

Support RS485, wiegand and HTTP/HTTPs protocols, and versatile GPI/O interface, smart relay control and
Power Other Ethernet (POE) port to build comprehensive security and IoT systems features of less wiring and cost-save installation.

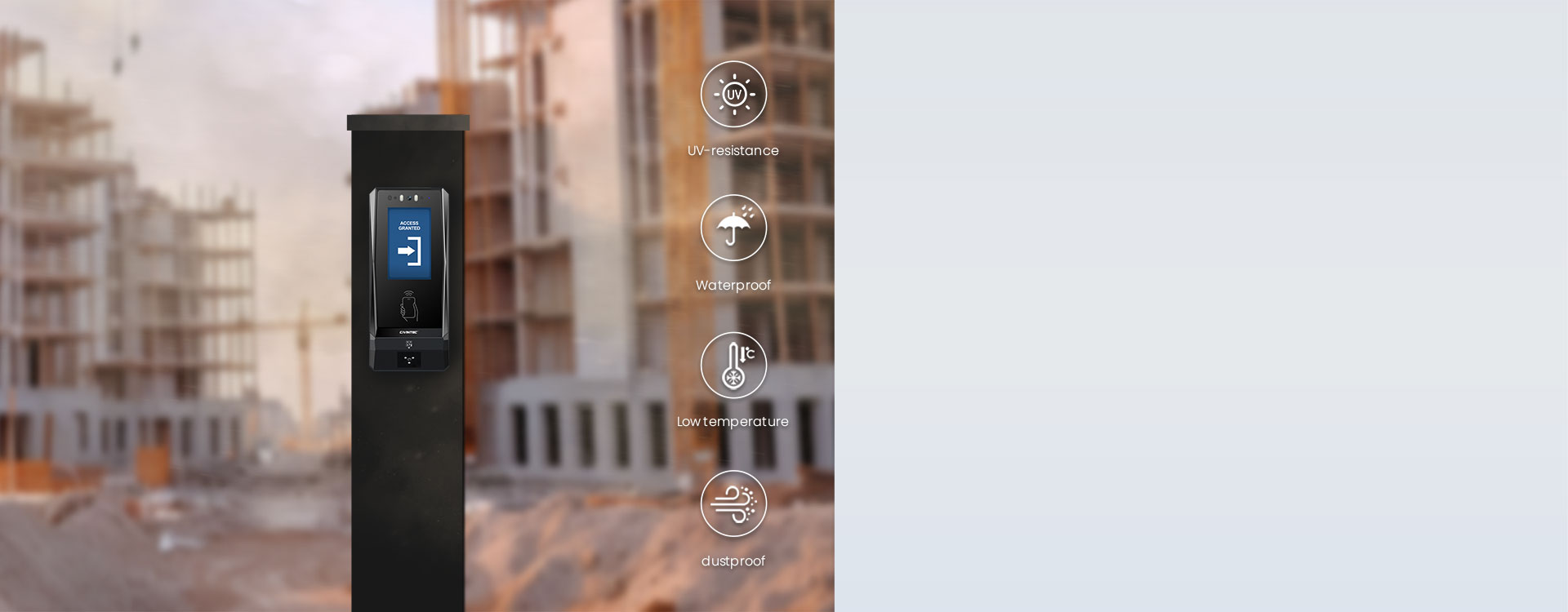

CT10C features a mullion, compact design with a 3.5-inch touch screen, making it ideal for any door environment. Built for durability, its robust weatherproof housing ensures reliable performance outdoors weather resistant to rain, dust, strong sunlight for rugged environment installations
Stylish Linux 3.5" colorful LCD touch screen smart access control terminal bring intuitive and clear feedback to visitor for good user experience. It freely displays any customized pictures with text on screen, Personalized LOGO UI design, easily controlled by server software via HTTP command.
Robust SDK with demo software is offered for the third-party server software integration and development. HTP plug and play hardware testing package with all necessary accessories, software tool to establish full testing environment for easy testing, configuration, fast development and software upgrade.
 | |
| CT10C | |
| IDENTIFICATION | |
| RFID | • 125KHz HID® PROX™, 125KHz EM • 13.56MHz Mifare®Classic, Ultralight®, Mifare®Plus, DESFire®EV1/EV2/EV3, NFC tags |
| Mobile | BLE, NFC(Support BLE in iOS, and NFC/BLE in Android) |
QR Code Multiple formats supported(1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes. | |
| Keypad | Supported |
| CAPACITY | |
| Max.Card Users | • Local mode: 100,000 users • Online mode: Unlimited |
| Max.Event Logs | • Local mode: 200,000 logs(more on request) • Online mode: Unlimited |
| Max.Image Logs | • Local mode: 7000 logs |
| GENERAL | |
| Operating System | LINUX OS |
| Display | 3.5” touch screen |
| LCD Resolution | 480*800 Pixels |
| Camera | 2MP camera with Autofocus and LED Flash |
| Audio | High-quality sound Speaker |
| Intercom | VoIP |
| Indicator | • TP Display • Controllable buzzer and speaker |
| INTERFACE | |
| Ethernet | TCP/IP(RJ45) |
| WiFi | 2.4GHz IEEE802.11 b/g/n (suitable for CT10C-W-XX model) |
| LoRaWAN | Supported Operating Frequency: 860~930MHz (suitable for CT10C-L-XX model) |
| 4G | Supported(suitable for CT10C-H-XX model) |
| Network Protocol | HTTP/HTTPs |
| BLE | BLE 5.3 |
| RS485 | Supported |
| Wiegand | 1*wiegand input(26-1024bit) |
| I/O port | 3*Inputs-Door contact, Door exit, Buzzer control 4*Outputs-Tamper alarm switch, Output buzzer control, Access Granted, Access Denied |
| Relay | 1~2 relay outputs |
| Fire alarm | Support fire alarm signal input |
| INSTALLATION | |
| Power Supply | • DC 12~24V • PoE IEEE802.3af |
| Dimensions | 46mm(D)*198mm(H)*82.6mm(W) |
| Protection Rating | • IP65 electric epoxy potted • Resistant to UV ray (suitable for UV-resistance model) |
| Operation Temperature | -20~60℃ |
| Upgrade | Software and firmware upgrade supported |
* The specifications are subject to change without notice.
