CT9 PRO

3.5" touch screen access control terminal with reader

Identifications

Communication Interface

Power

Protection

Relay

Clear selection

Quantity

    -

    +

cart
Book Demo Get Quote

Share

Quick look


CT9 PRO is all in one intelligent terminal with reader, no need of additional controller unit. It supports multiple identification technology options which is convenient to manage different types of visitors as regular staff, resident, temporary visitors, installer and contractors etc. CT9 PRO provides a smart and real-time monitoring solution to enable the third party server to verify visitor credential and control lock or facilities in real time under host online mode. Colorful touch screen is fully controlled by server to display any customized information to guide visitor for different purpose. CT9 PRO with SDK can be integrated into general application solutions as access control, time attendance, membership, cashless payment and facility control, and widely used in condominium, parking lot, campus, factory, construction building management, leisure club and gym, public transportation, petrol station and many projects globally.



Advantages


· Linux based 3.5” colorful touch screen intelligent terminal

· TCP/IP Ethernet PoE port with 4G option for wire and wireless communication

· Support HTTP & HTTPs protocols for server remote centrialized control in real time and data synchronization

· With embedded RFID reader compatible to dual frequency full range of 125KHz and 13.56MHz Ultralight, Mifare, Mifare® Plus, DESFire® EV1/EV2/EV3, HID® iCLASS, HID® Seos cards.

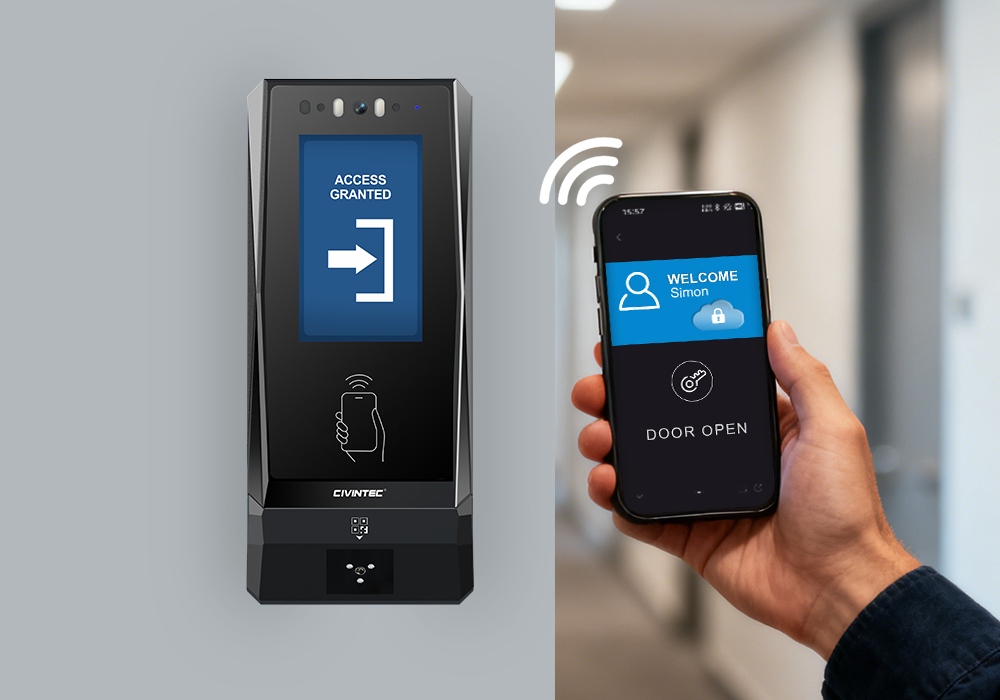

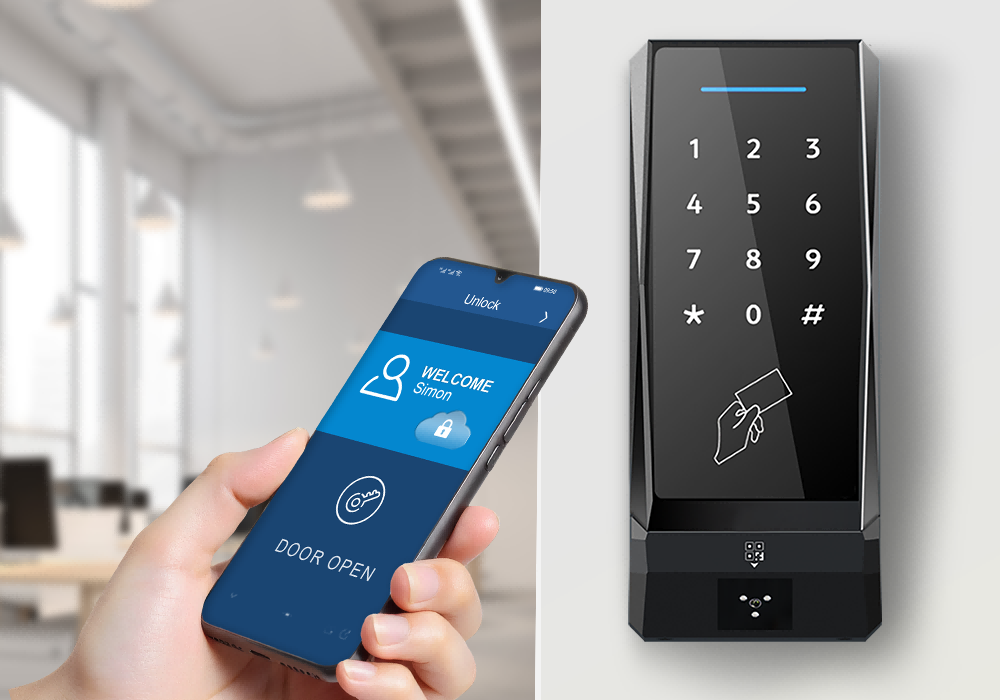

· NFC and BLE smart mobile credential access control, unlock door by smart phone APP

· With embedded Barcode, QR Code scanner, and display dynamic QR Code on display, ideal for temporary visitor access control.

· Support Host mode and Local mode with 10,000 or more users and 50,000 event logs

· With versatile input & output interfaces to work with external devices seamlessly as APB wiegand reader, electronic lock, turnstile, exit button etc. to enhance access control security protection

· CT9 PRO door entry system is designed with special material for waterproof resistance, UV-resistance, low temperatures ideal for various rugged usage environments.

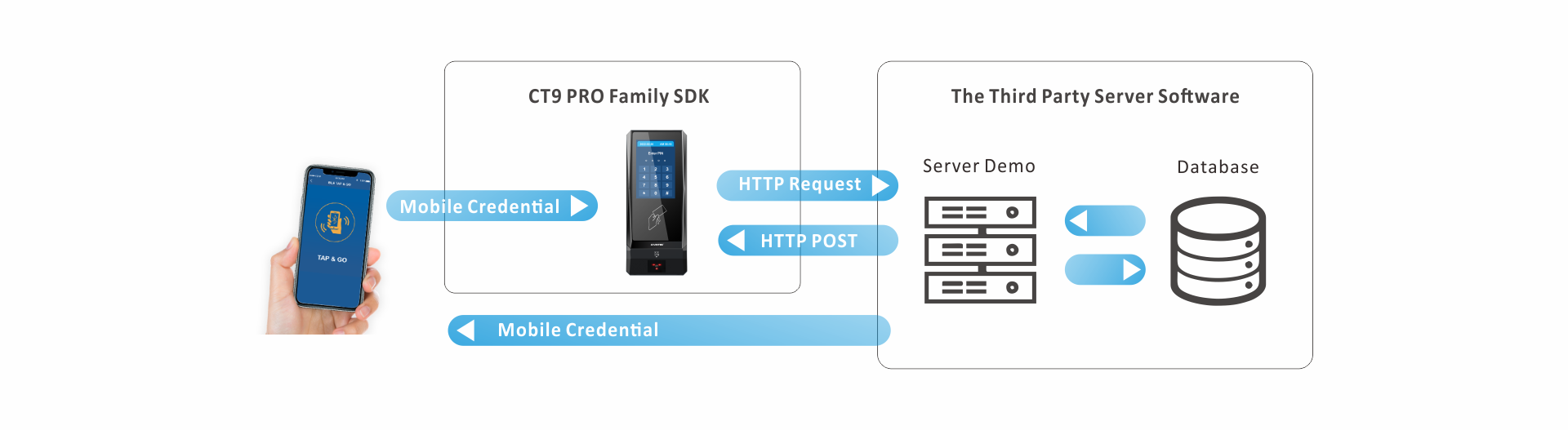

For developer- SDK

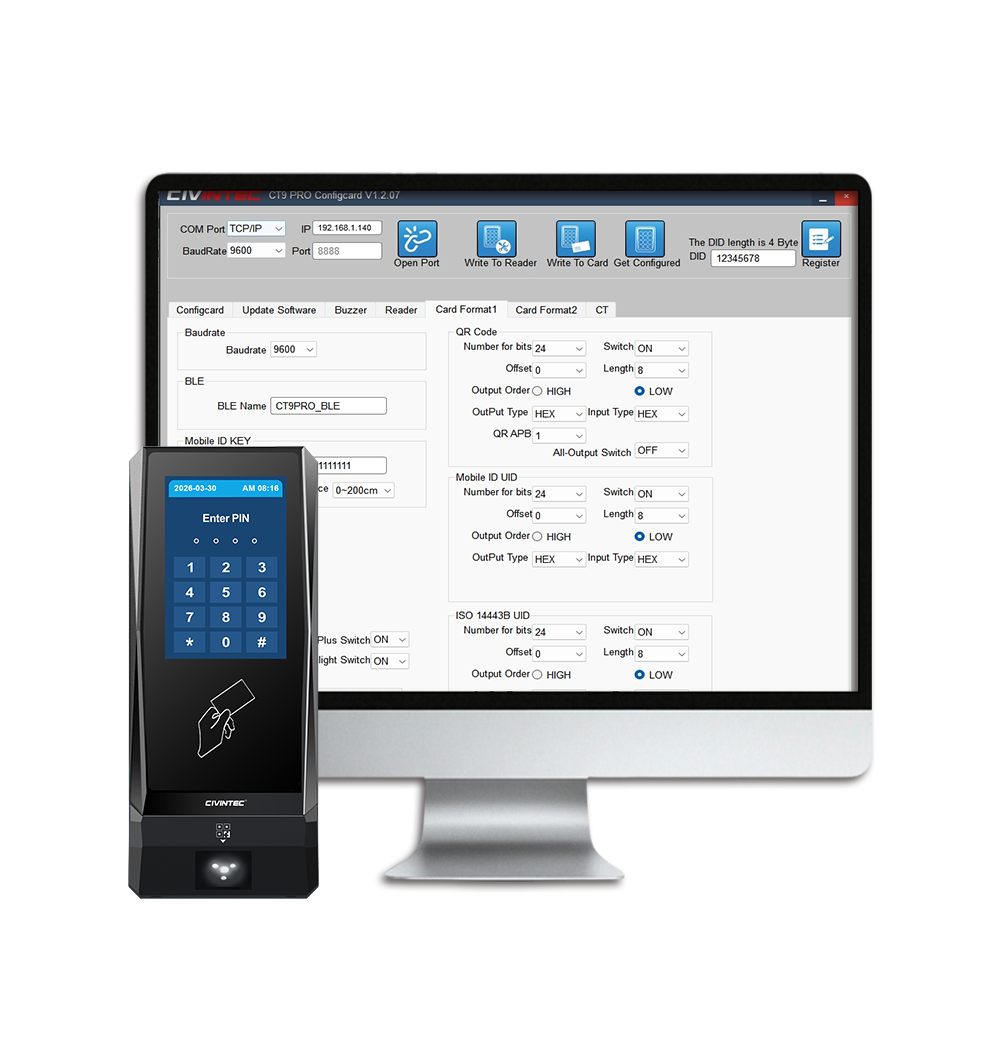

Robust SDK with demo software are offered for the third party server software integration and development. It’s able to get HTTP requests directly from CT9 device and reply using HTTP/HTTPs without any middleware in form of SDK library. After setting, CT9 automatically establish a connection and communication with customer’s server. Under offline mode, CT9 automatically keep detecting the network connection status and try to establish a connection with customer server.



CT9 PRO SDK



- Hardware testing package (HTP)

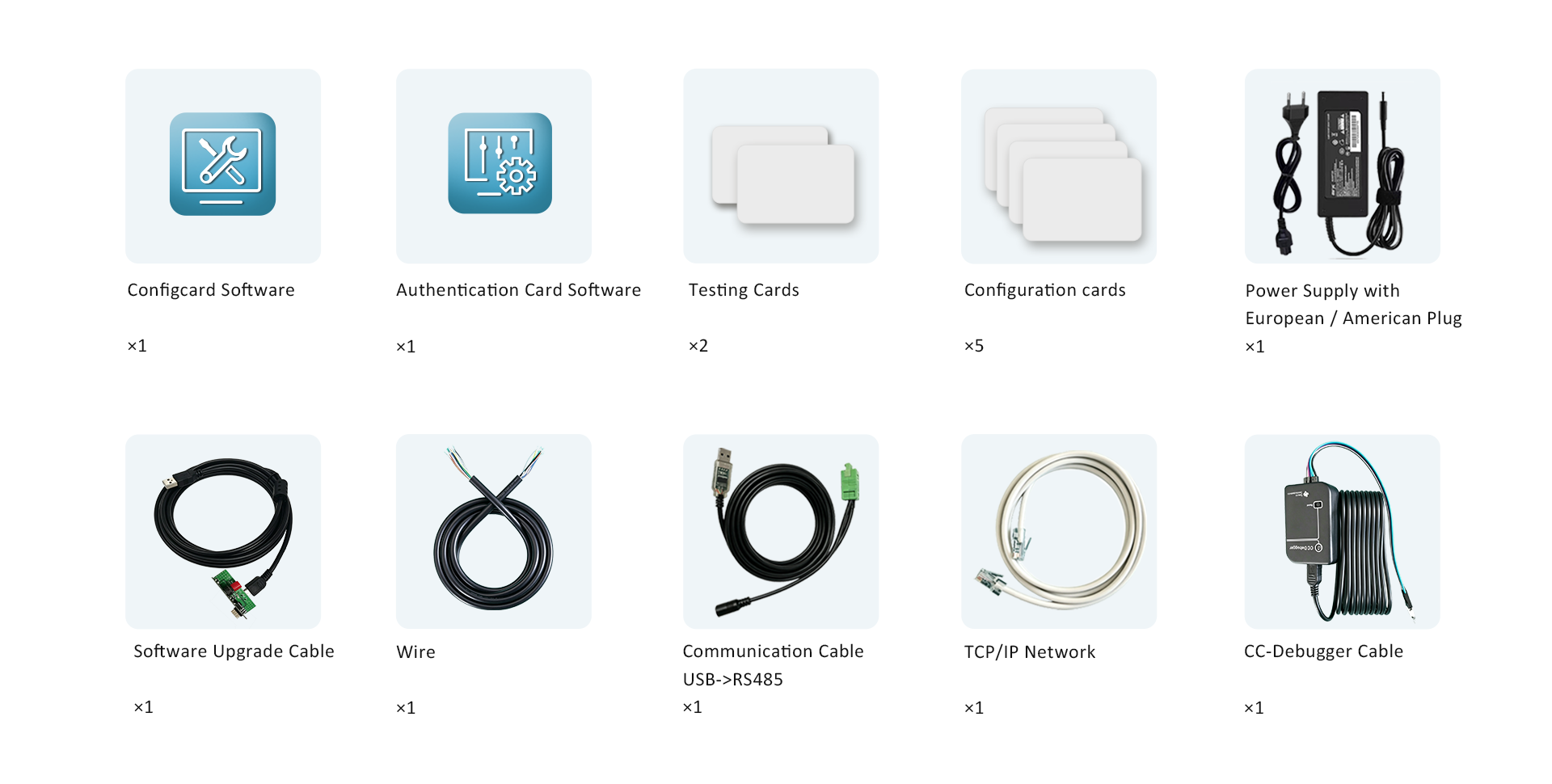

HTP is plug and play hardware testing, debug and upgrading package with all necessary accessories, software tool, configuration card to establish full testing environment for customer’s easy test, device configuration, fast development and software upgrade


 Hardware testing package


OEM & Customization Service


To make product stand out from the crowd, we offer the opportunity to profile your readers for increased recognition.

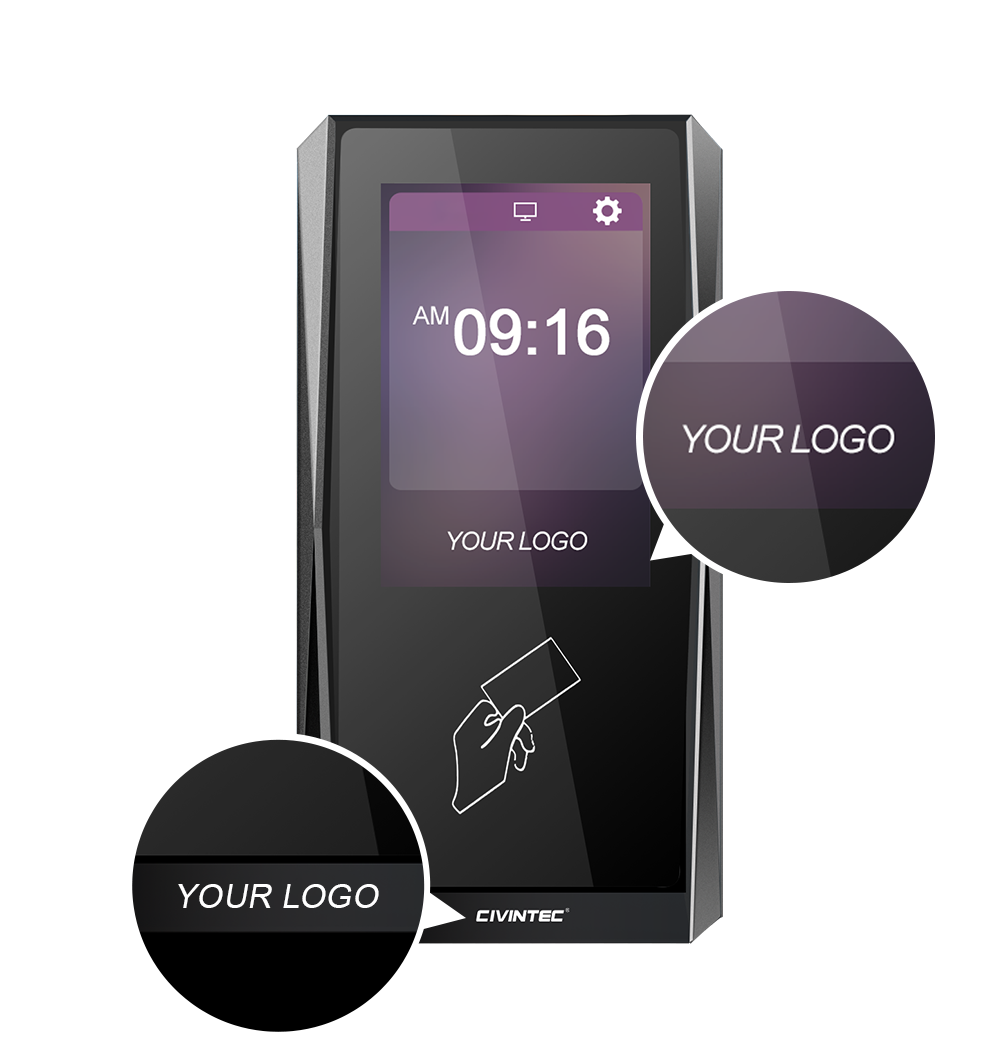

OEM service to enable logo printing in single or full color or program LOGO to display on touch screen. We also offer development customization service from hardware new features to software development.




Case Study

FAQ

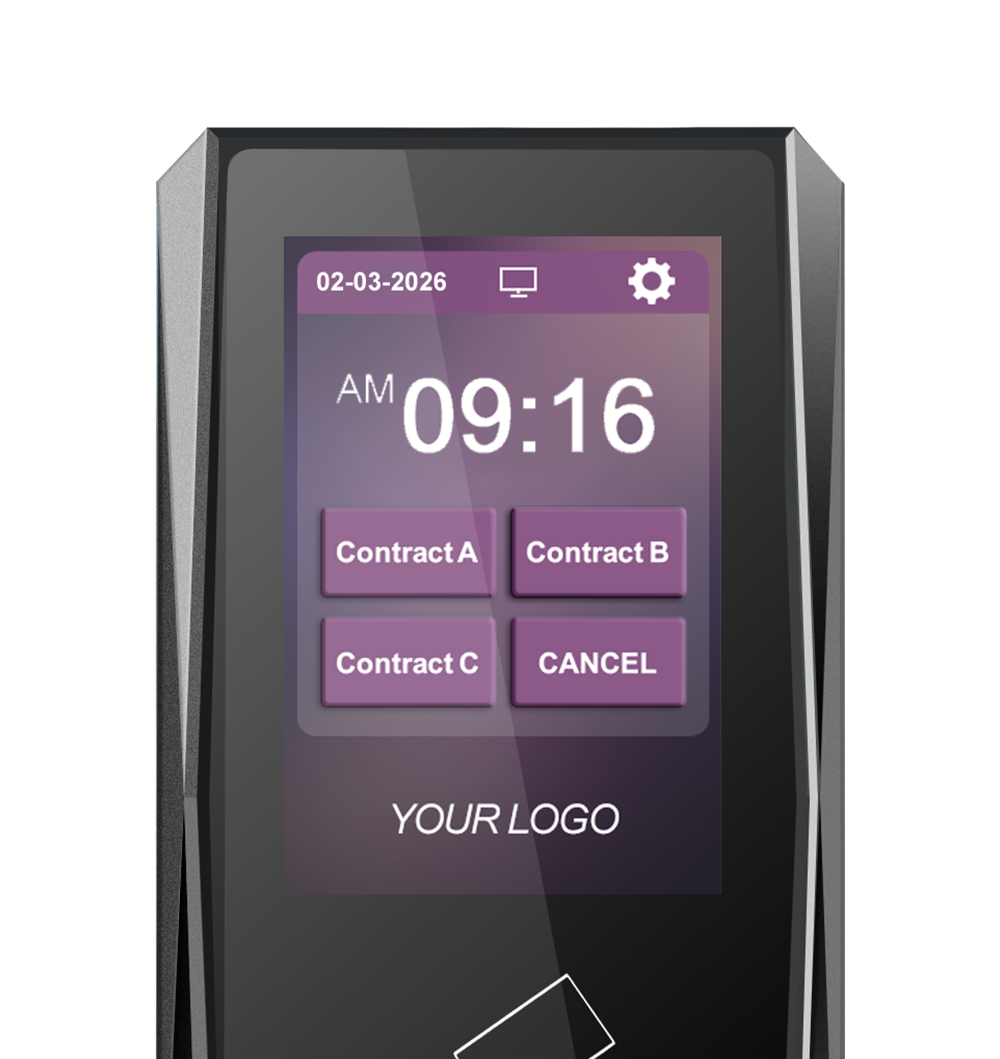

Is CT9 PRO UI programmable or changed?

Yes,CT9 PRO UI can be programmable or changed.

CT9 PRO have QR code function. How does the QR code work?

For CT9 PRO QR code function, there are two different methods for selection.

(1) QR code is dynamic shown on screen:

CT9 PRO is with embedded QR code generator to display dynamic QR code on touchscreen for mobile phone to scan it.

(2) CT9 PRO scan QR code:

CT9 PRO has integrated QR reader to scan the QR code displayed on mobile phone or printed on paper.

Does CT9 PRO/CT9 E work on HTTP?

Yes, CT9 PRO/CT9 E supports HTTP/HTTPs protocol.

Can CT9 PRO/CT9 E be configured by server for remote control?

Yes, in HTTP/HTTPS protocol, for the convenience of customer’s usage and ensure the security, some configuration of CT9 PRO/CT9 E can be configured with server.

Can CT9 PRO/CT9 E support online/offline method?

Yes, there are two working modes online/offline for CT9 PRO/CT9 E.

(1) Online mode:

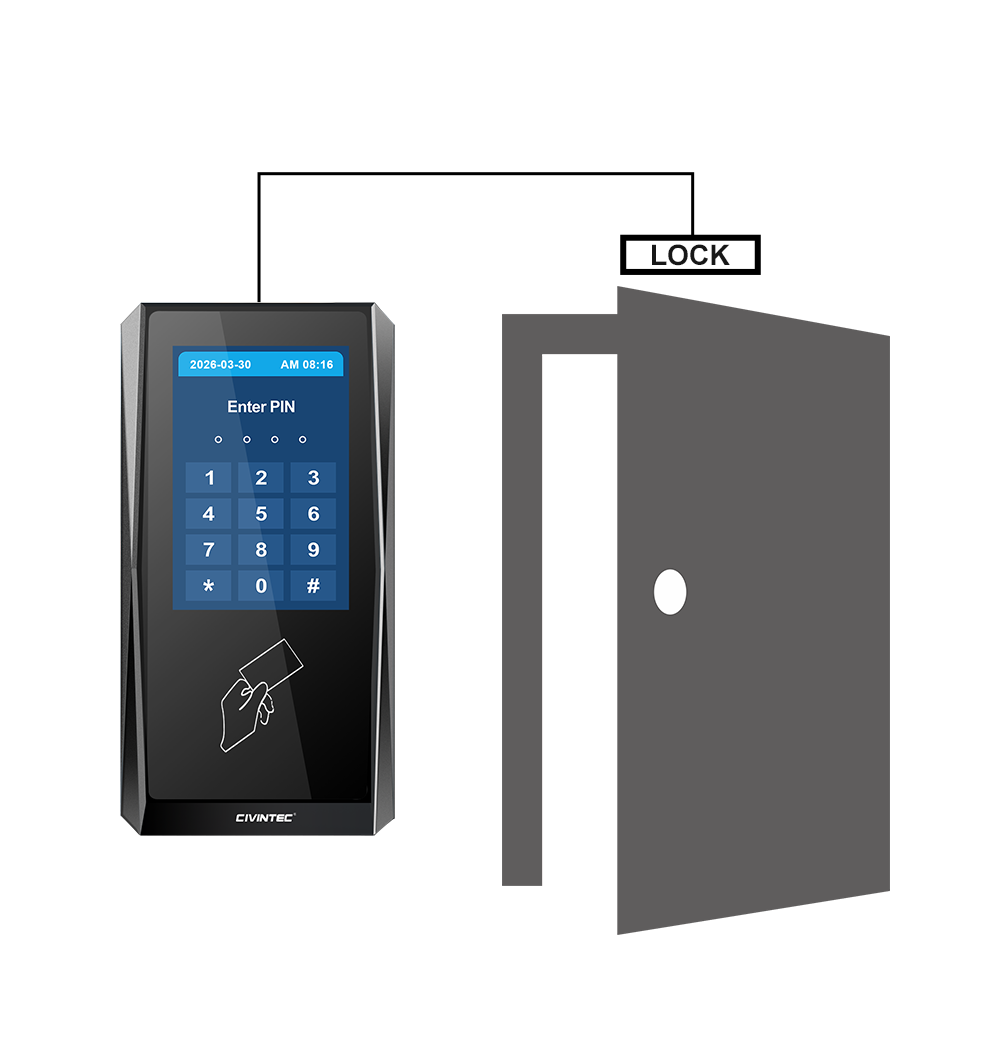

CT9 PRO/CT9 E read and send card ID or mobile credential to your server software to identify its validity. If it is valid, server software will return "Access Granted" command to the machine, CT9 PRO/CT9 E will control door lock to open and display image or text as "Access Granted" on touch screen.

(2) Offline mode:

CT9 PRO/CT9 E has memory to keep user IDs and events to identify the ID validity and control door lock to open or keep closed.

What will happen for CT9 PRO/CT9 E if network disconnection?

When network is disconnected, CT9 PRO/CT9 E can work as standalone to store user IDs and events records. When network gets connection, CT9 will connect server automatically. All the local events records can be uploaded to server if CT9 PRO/CT9 E receive the command from server.

Can CT9 PRO/CT9 E achieve the web server function?

Yes, CT9 PRO/CT9 E can be integrated with the web server to achieve the function.

I have special requirements on my software functions and hardware housing look. Can you make the product?

As manufacturer and designer, we provide technical customization service from hardware, firmware to software to well meet various requirements from the market. Please contact our sales team for further discussion.
