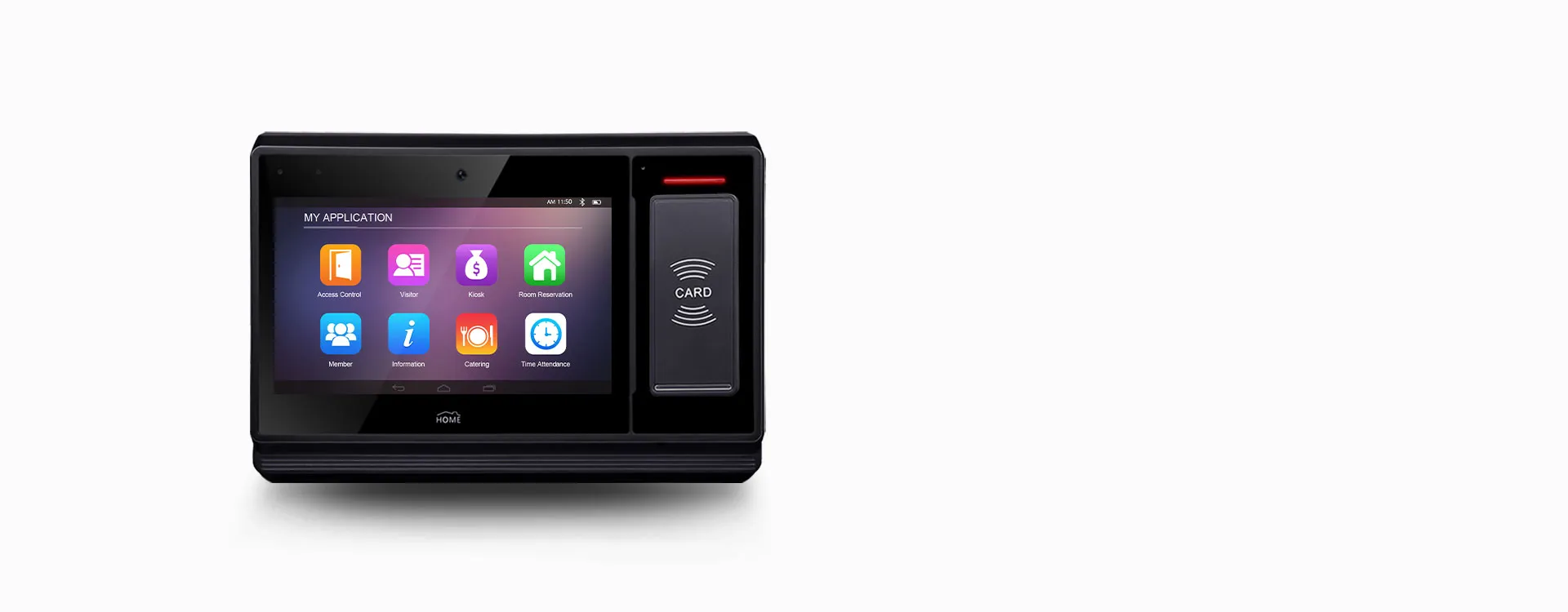

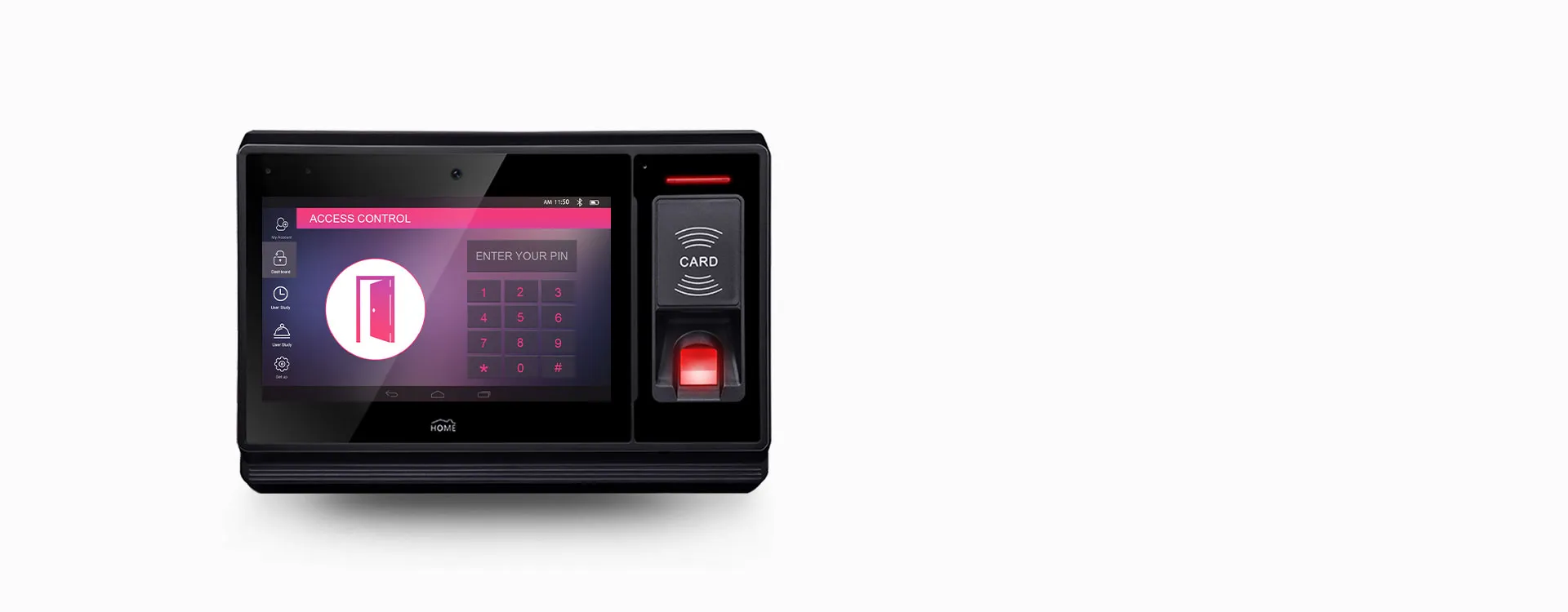

UTOUCH X

New Generation Biometric & Mobile Access Control Terminal With Dual Os For General Purpose Management

UTOUCH X

General purpose intelligent terminal provide powerful and comprehensive solution, such as member management , access control, time and attendance, facility control.

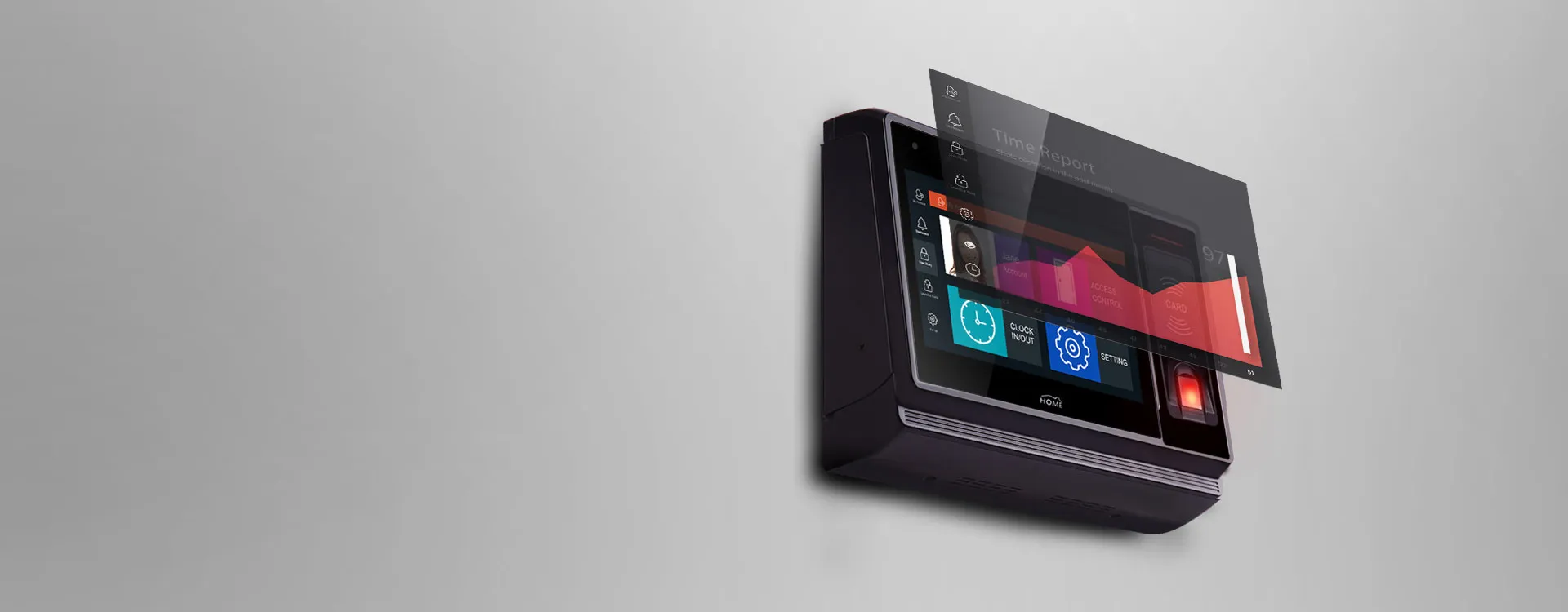

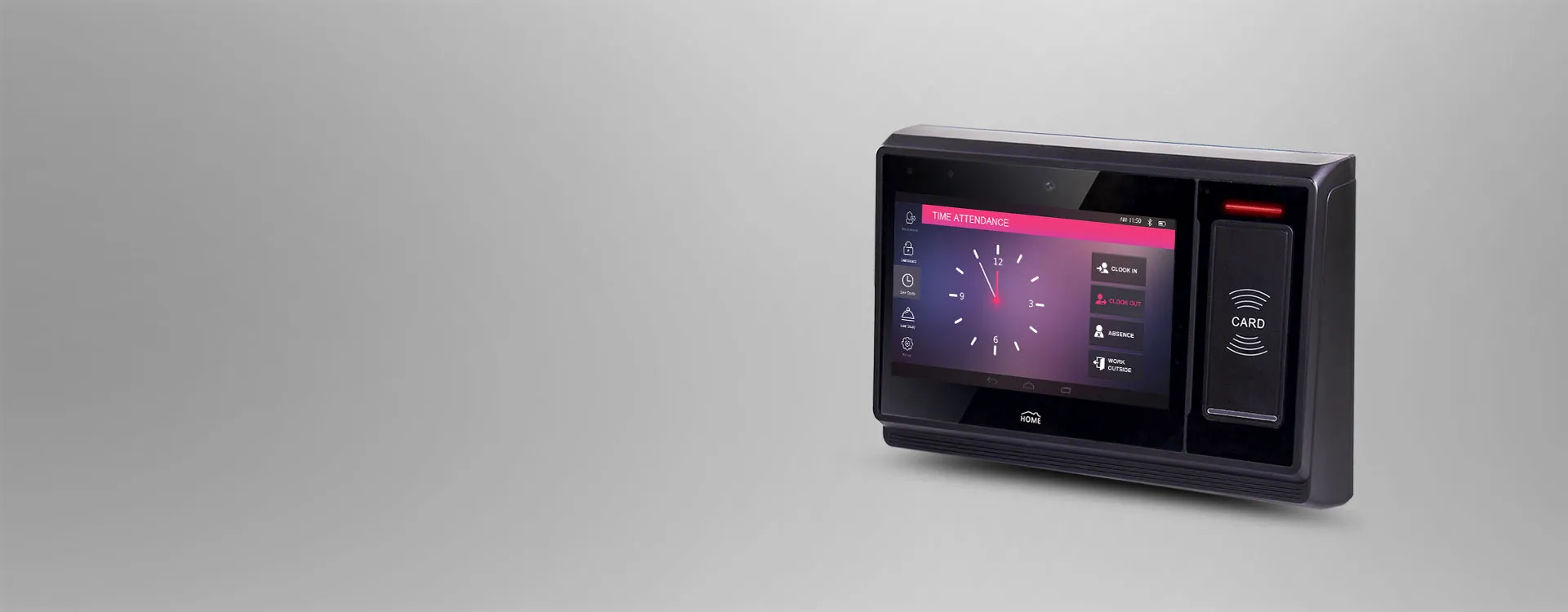

Time & Attendance

Mutli-shift and time management on lateness, early leave, outside duty and holiday to track working time for intelligent data-driven decisions.

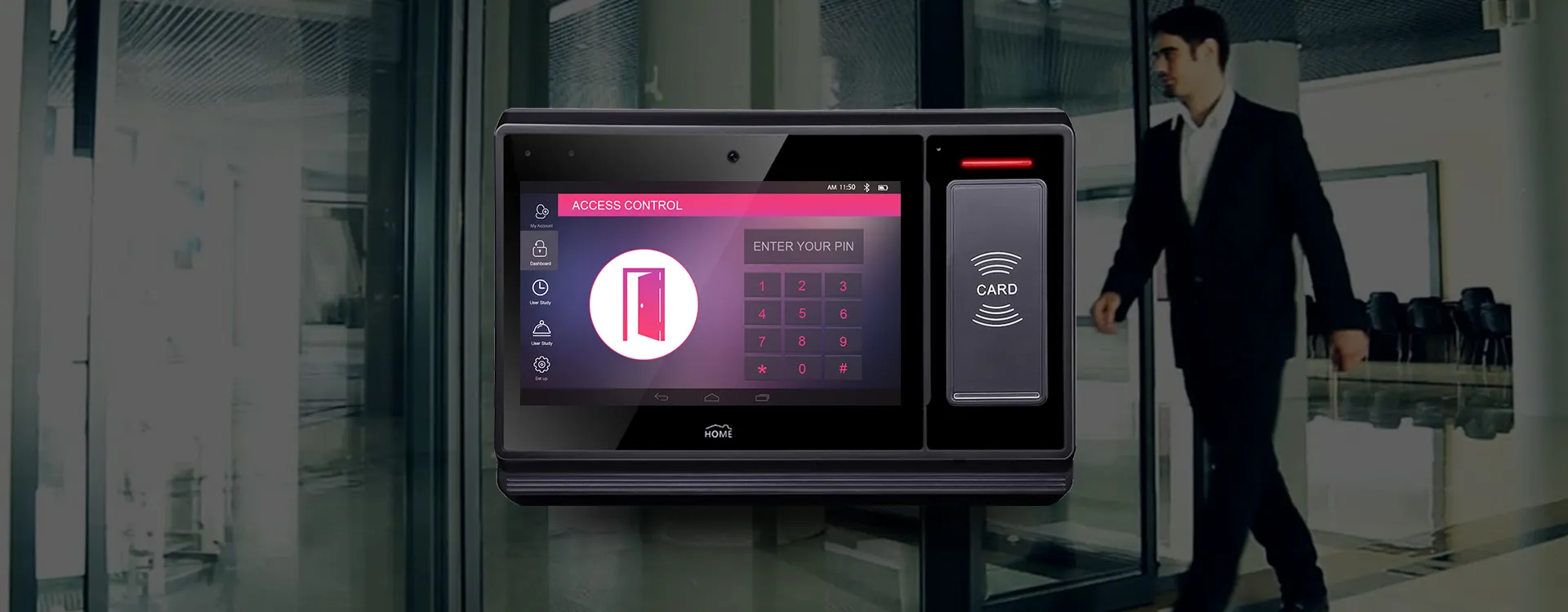

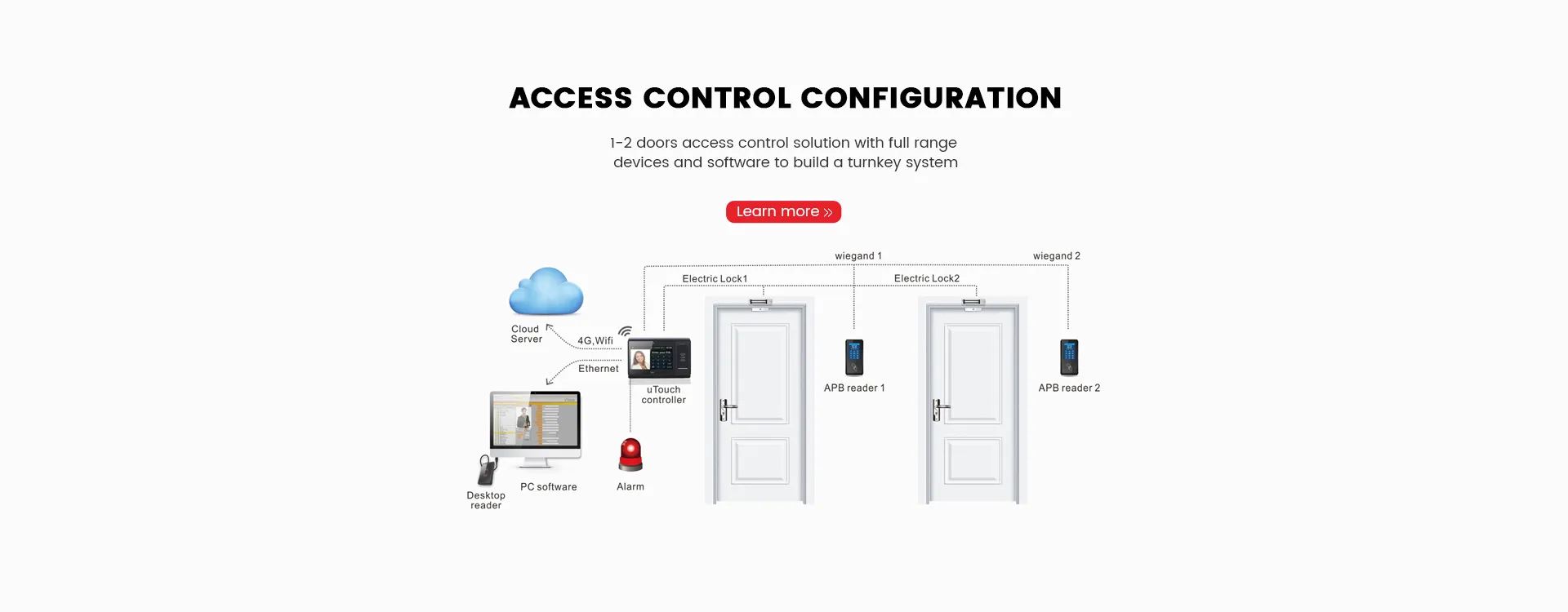

Access Control

Advanced secure entrance system manage networked central physical access with unlimited control points

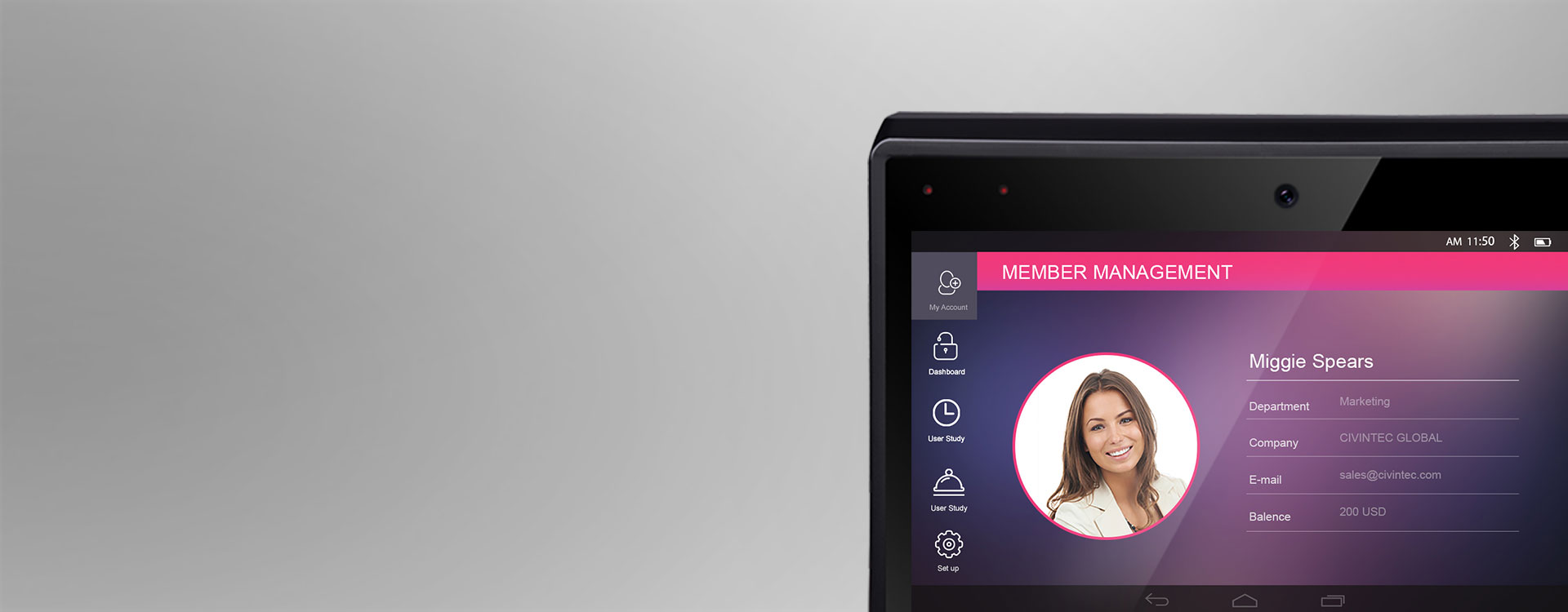

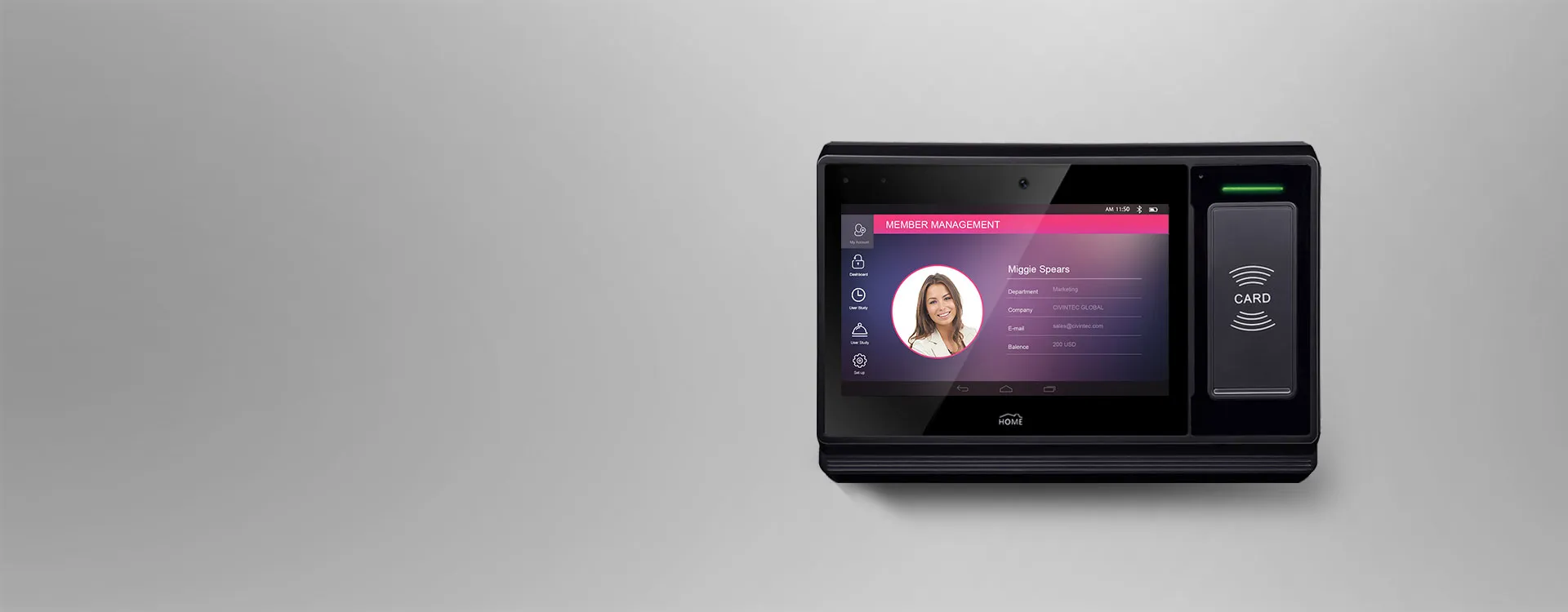

Membership & Loyalty

Collect and manage member information to better use the resources for data-driven decisions, And benefit membership and friendly end-user experience

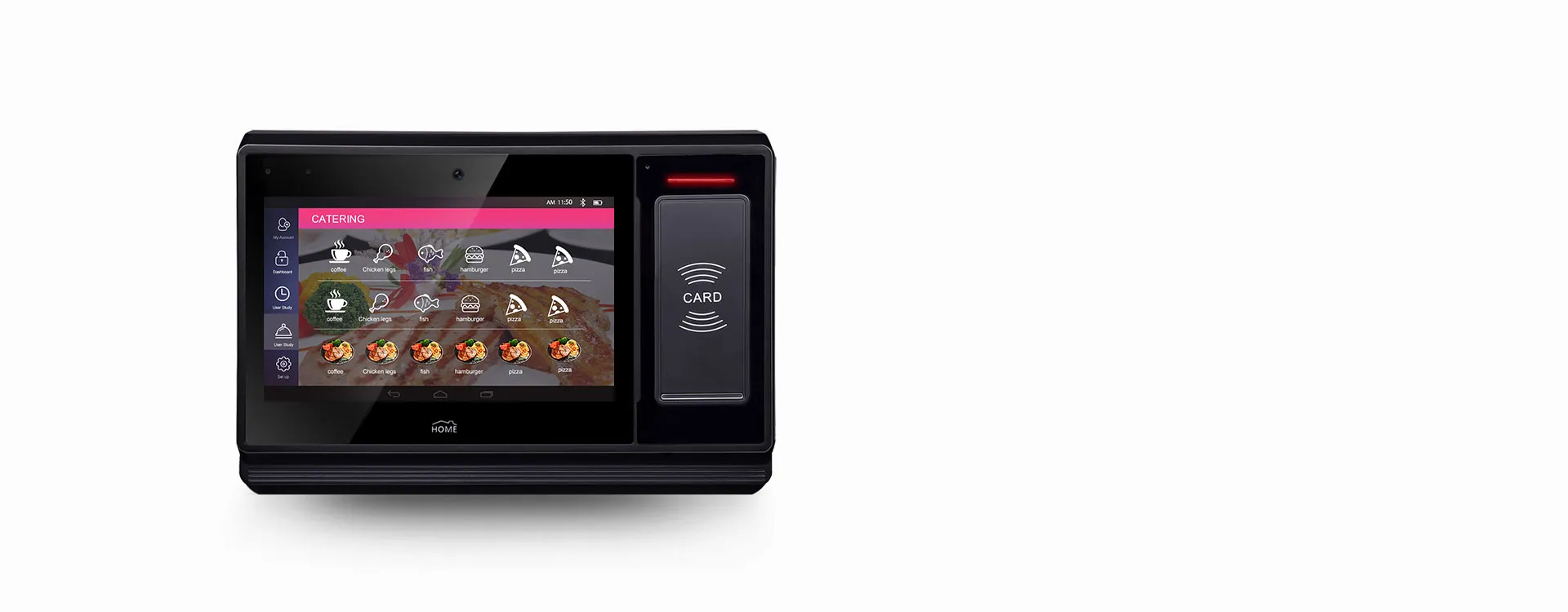

Cashless Payment

Manage cashless payment by using contactless smart cards, Mobile phone payment for catering, E-ticket, etc.

Multi-identification Access Technologies

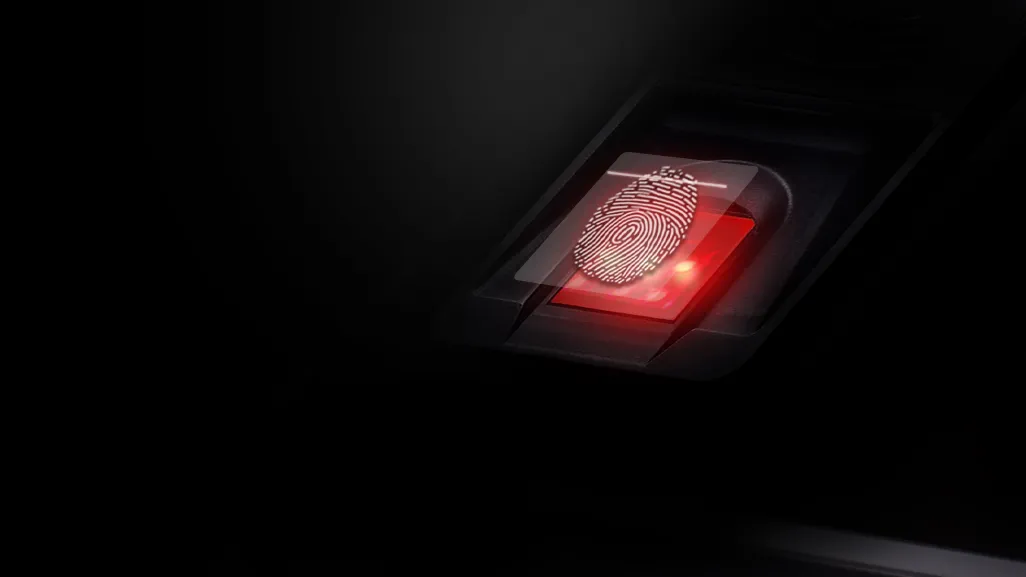

Full Speed Fingerprint Verification

Full Speed Fingerprint Verification

250ms verification speed in 3 TIMES increase. 1:1 or 1:N with 25,000 fingerprint template in 13 TIMES increase protected by AES encryption

Your Phone Is The Room Key

Your Phone Is The Room Key

Smart phone as access credential with AES encryption for door lock control in 5CM to 10M reading range

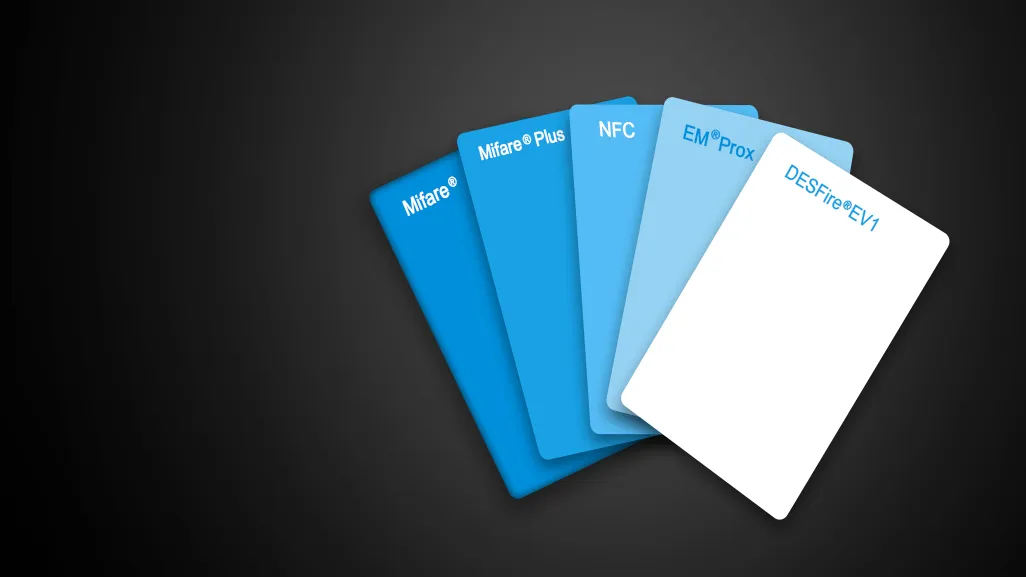

125KHz+13.56MHz RFID & NFC Tags

125KHz+13.56MHz RFID & NFC Tags

Read & Write the most of HF contactless smart cards with Secure Access Module for data encryption

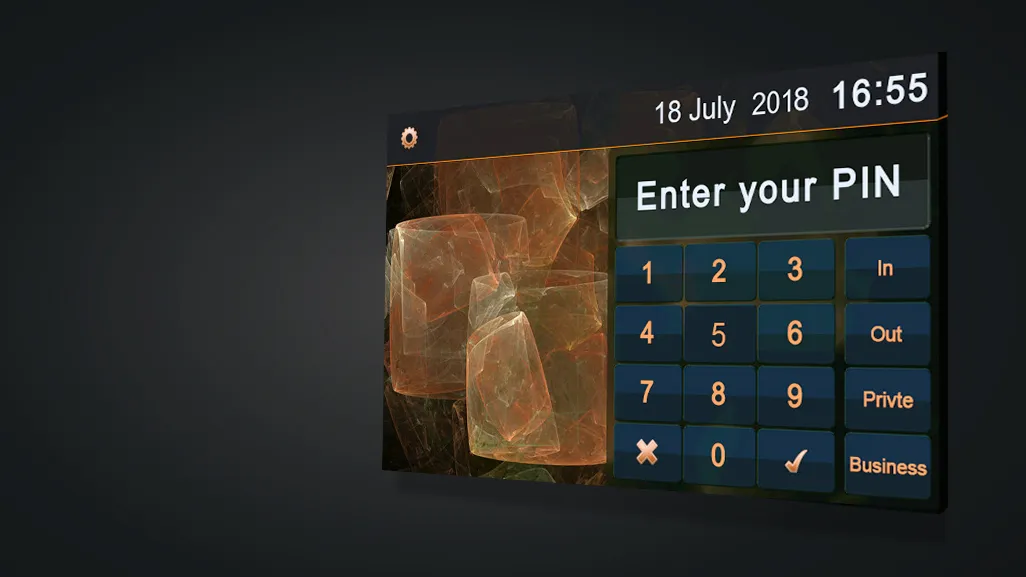

Touch Keypad

Touch Keypad

Sensitive touch screen keypad with secure random key and flexible valid time setting

Android 5.1 / Linux

Quad-core Processor

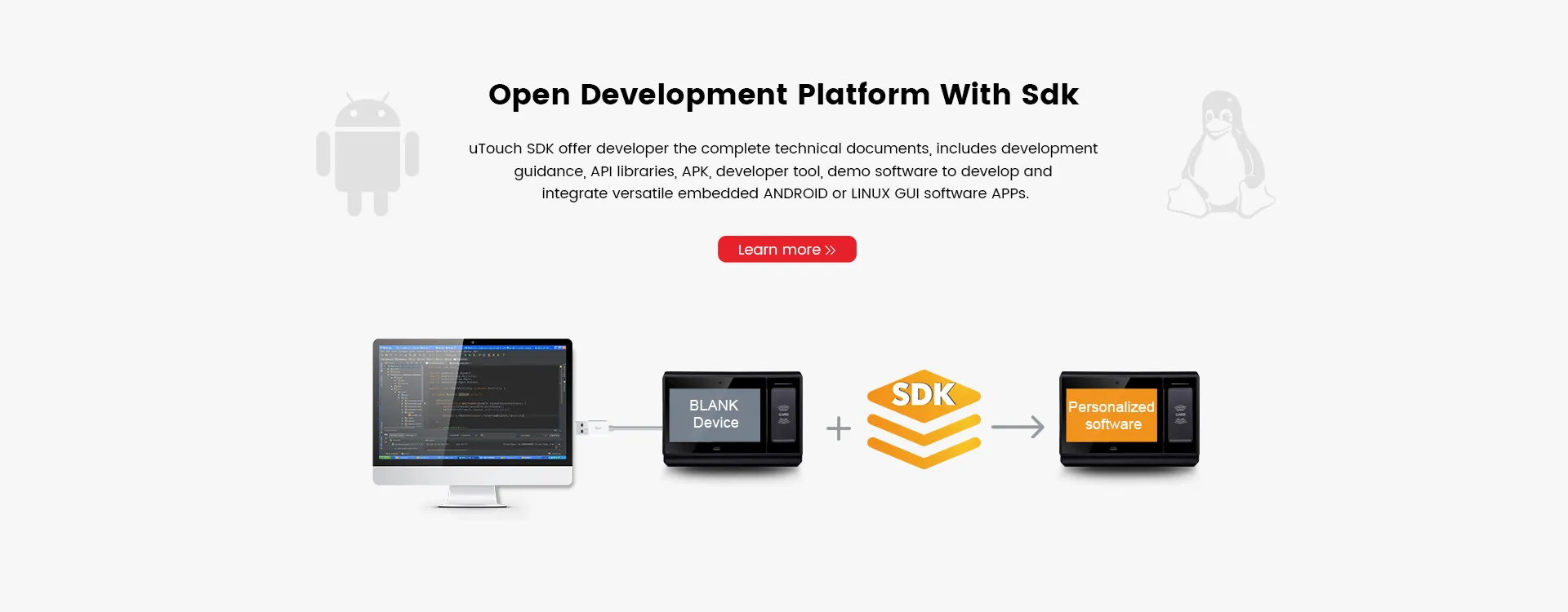

Customizable friendly user interface and easier to integrate new APPs with SDK API

CAMERA ++

AUTO FOCUS Camera with 2.5 TIMES higher resolution increase. Flexible to customize camera functions with open API for software development.

Controllable Speaker

High quality sound with controllable volume, workable for both quiet and outdoor noisy environment.

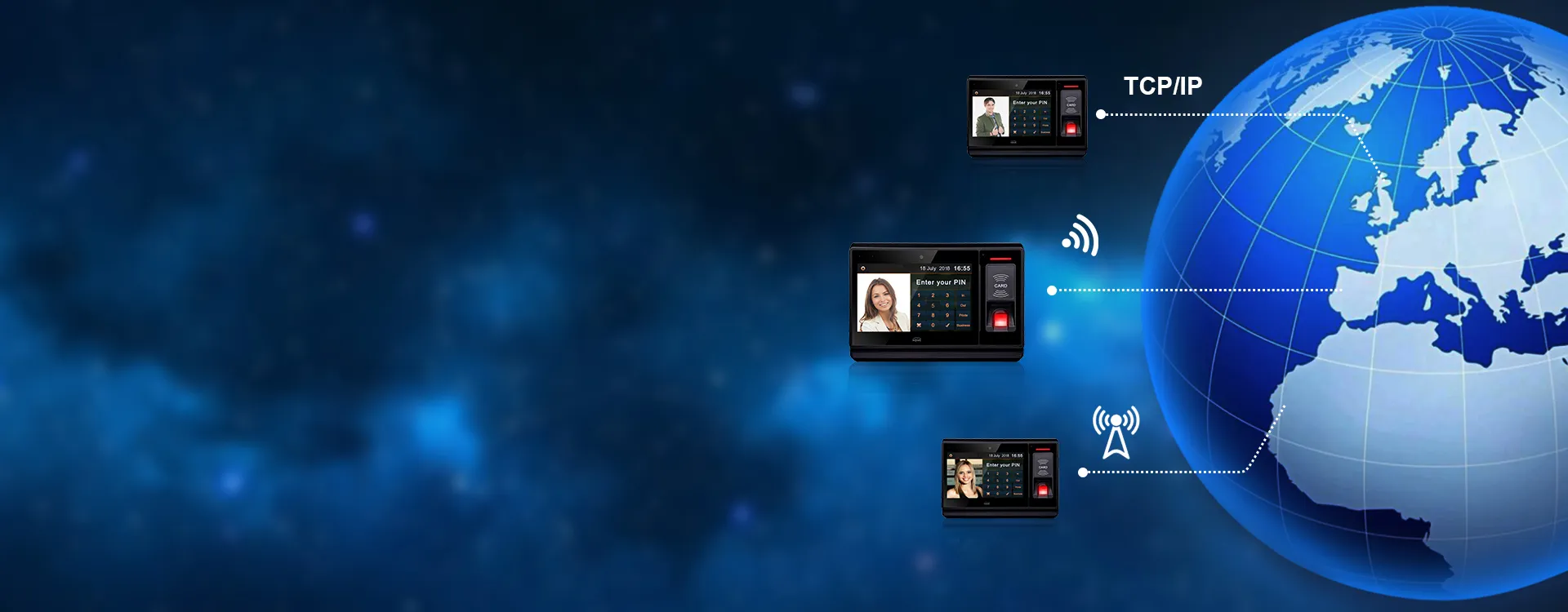

Versatile Communications

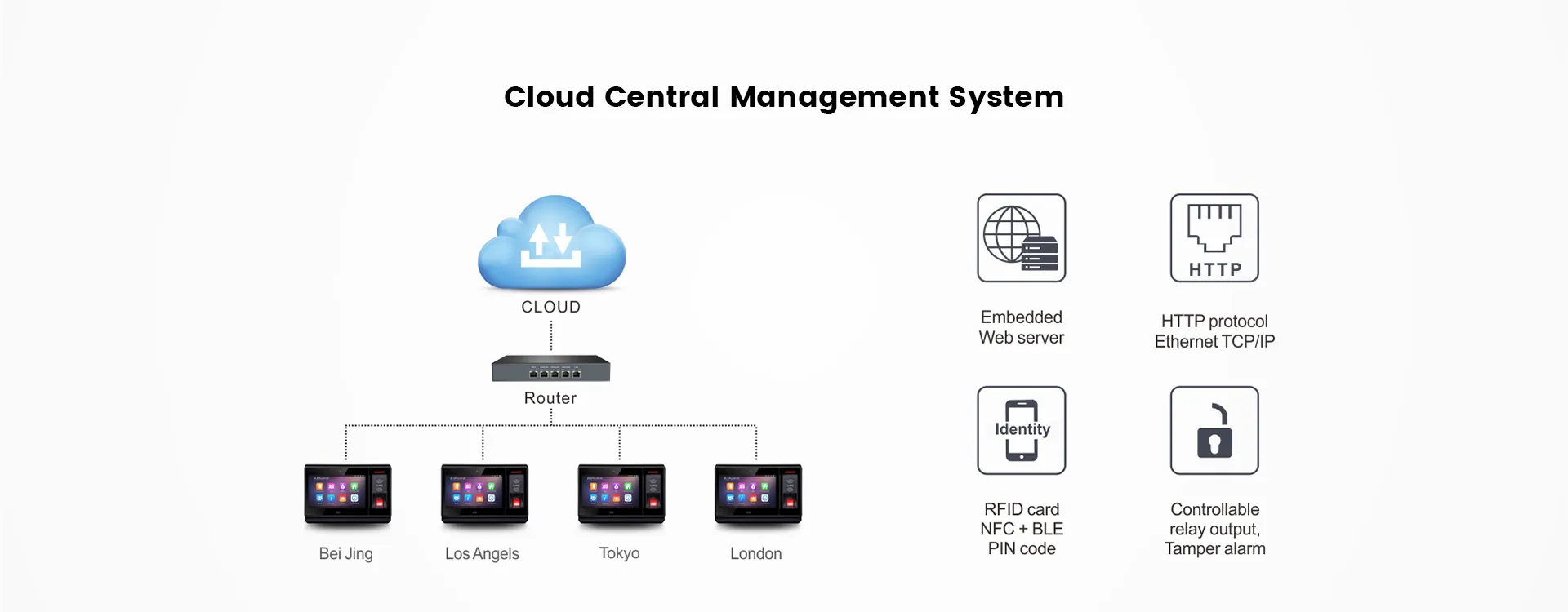

Easily get networked through LP Ethernet, BT, Wi-Fi and 4G for Bi-direction data communication and synchronize in real time, And remotely manage networked Utouch X from different locations.

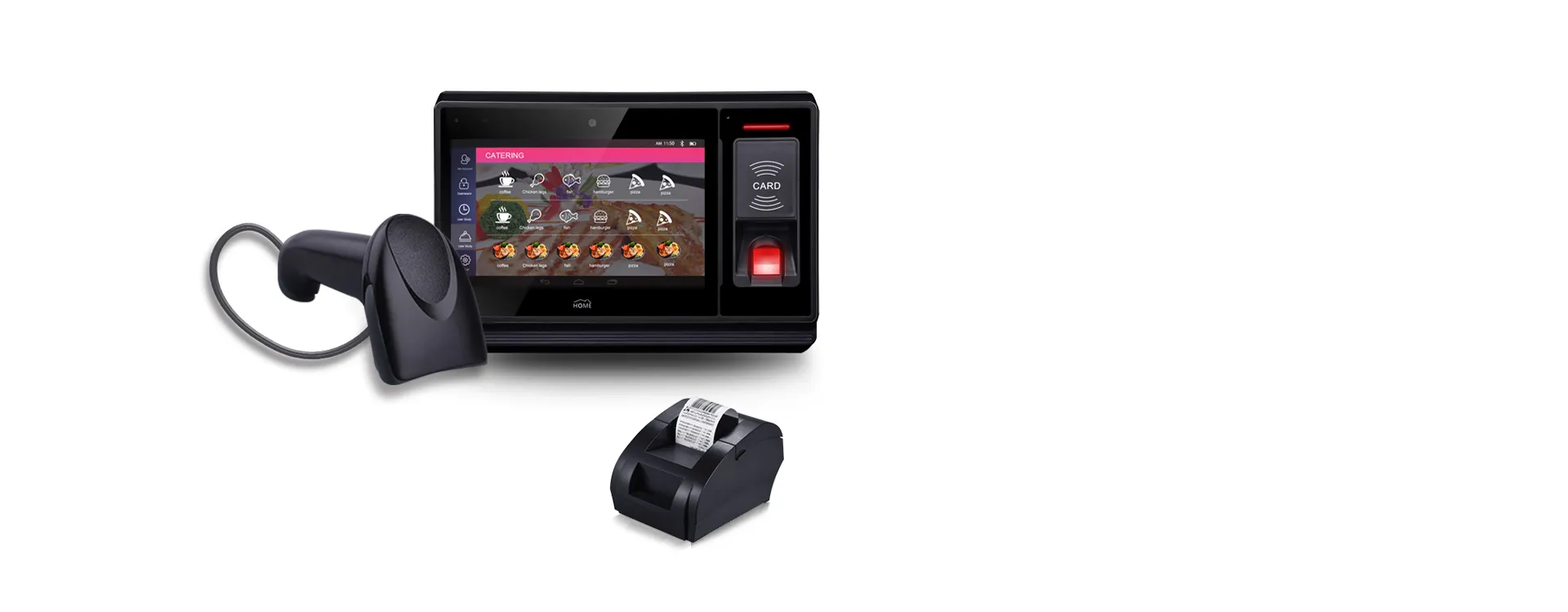

External Devices Control

UTOUCH X with rich interface options BT, WiFi, USB (OTG), RS232/RS485, GPIO port and Relay output to connect & control external devices for functional extension, as Printer, QR scanner, Alarm and various kinds of facility control.

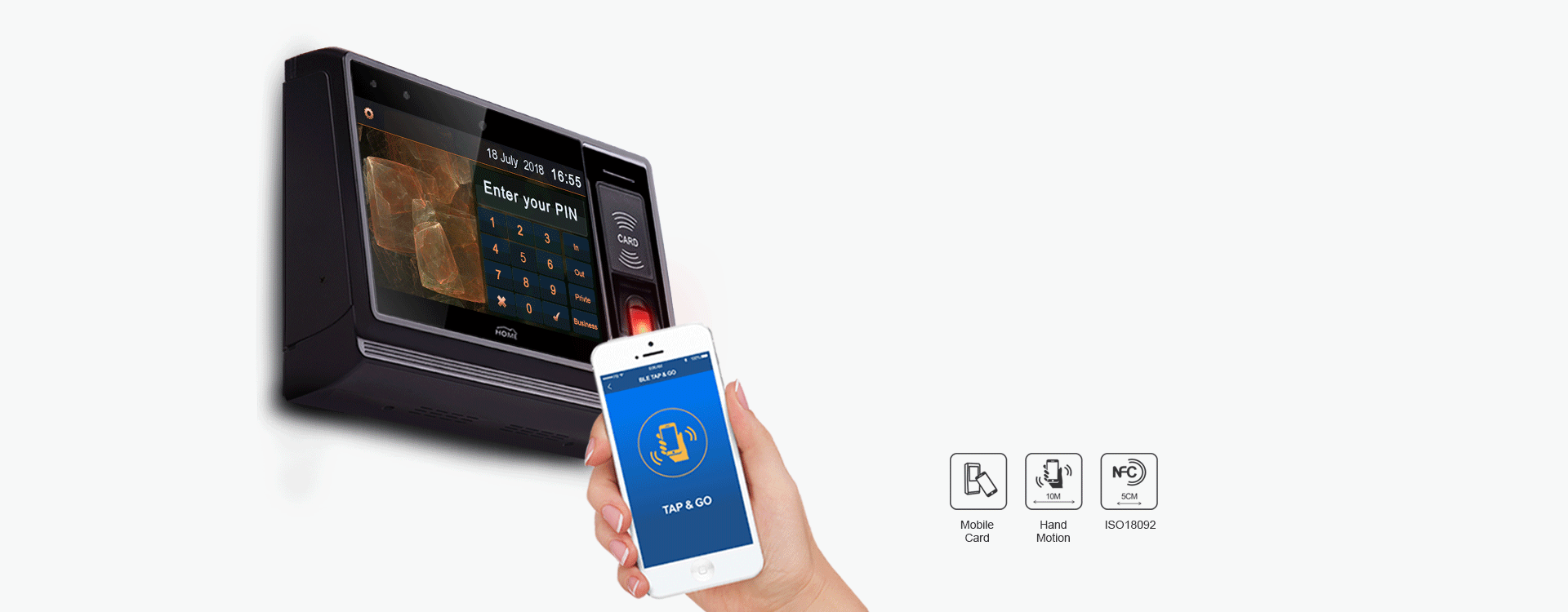

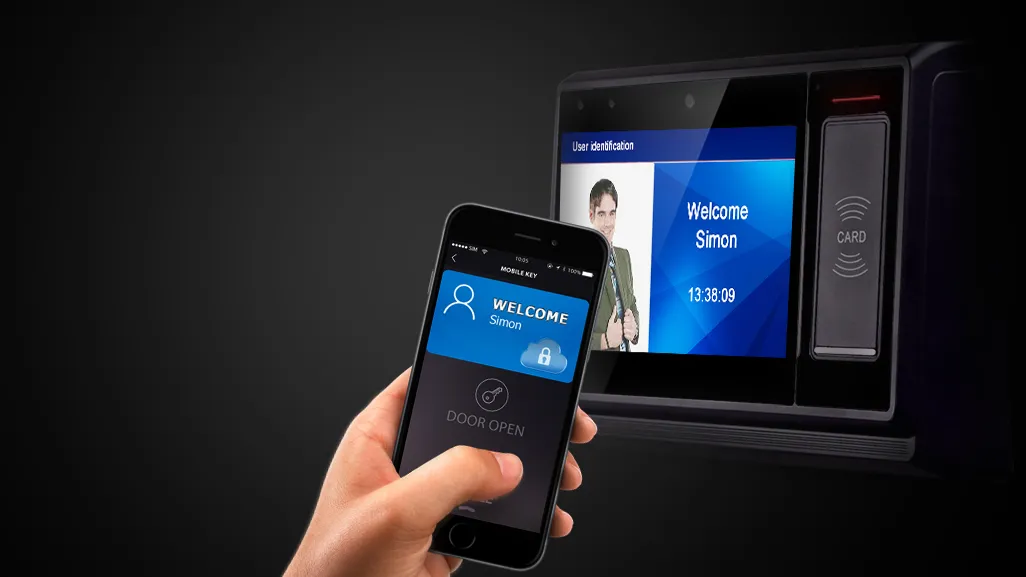

Your Phone Is Room Key

Widely work with all brands of smart phone. Your smart phone works as access credential to open door lock by using NFC or BT technology encrypted by AES algorithm.

Image Records Auto Message

UTOUCH X auto snap a picture when door opens, record the image of person clock-in with auto email/SMS notification. The Camera usage is good for enhancing system secure and easy management.

Applications

Specification


CN8

UTOUCH X
UTOUCH X TERMINAL
Operation SystemANDROID & LINUX
CPU1.4GHz quad-core processor
Memory1G RAM + 8G Flash

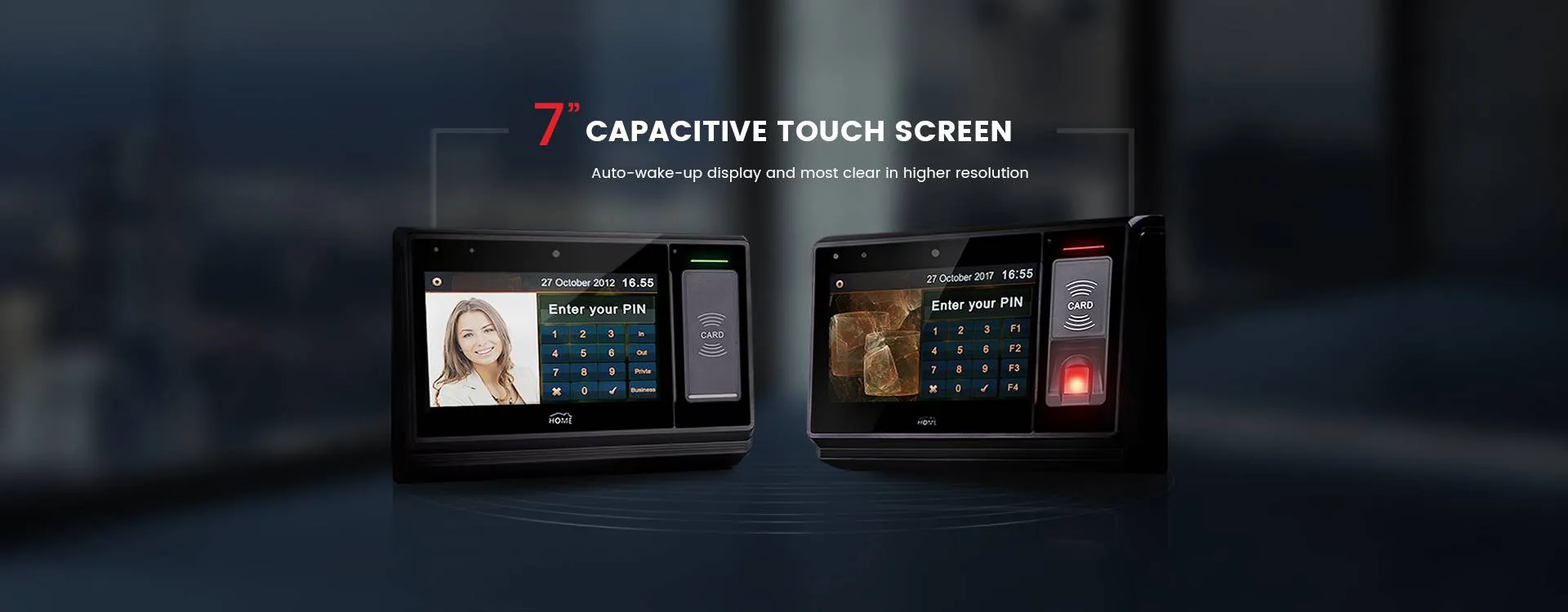

Display7.0” capacitive touch screen, 1024*600 dpi resolution
ISO-protocol

125KHz & Pro, 13.56MHz ISO14443A/B, ISO15693, ISO18092 NFC

Contactless cards

EM 125KHz , 13.56MHz Mifare® Classic, Mifare® CSN,Mifare®Plus, DESFire®EV1, Ultralight®C,ISO18092 NFC tags (T2T, T3T, T4T)

Contact smart cardISO7816 (T=0,T=1) 1 SAM module
Fingerprint sensor500 dpi optical sensor
Sensing area16.0*19.0mm
Image size272*320 pixels
FRR/FAR0.001%/0.1%
Template capacity1:1 (100,000); 1:N (25,000)
User capacity100,000 users
Communication interfaces4G, WiFI, BT4.0, TCP/IP, RS232, RS485/OSDP, Wiegand, USB2.0 (OTG)
Power supplyOperating Voltage: 9-24V DC PoE : Power over Ethernet IEEE802.3at
CameraAuto focus 5.0 megapixel digital camera
Door phoneMicrophone, speaker (controllable volume)
SD card1 SD card slot
GPIO port4* I/O port (default input)
Tamper alarm2 relay
DimensionW230*H160*D45(mm)
Tamper alarm1 tamper alarm switch
Operating temperature0℃~ +50℃
Storage temperature-10℃ ~+60℃
Operating humidityW230*H160*D45(mm)
Installation1 tamper alarm switch
CertificationCE, FCC


* The specifications are subject to change without notice.
