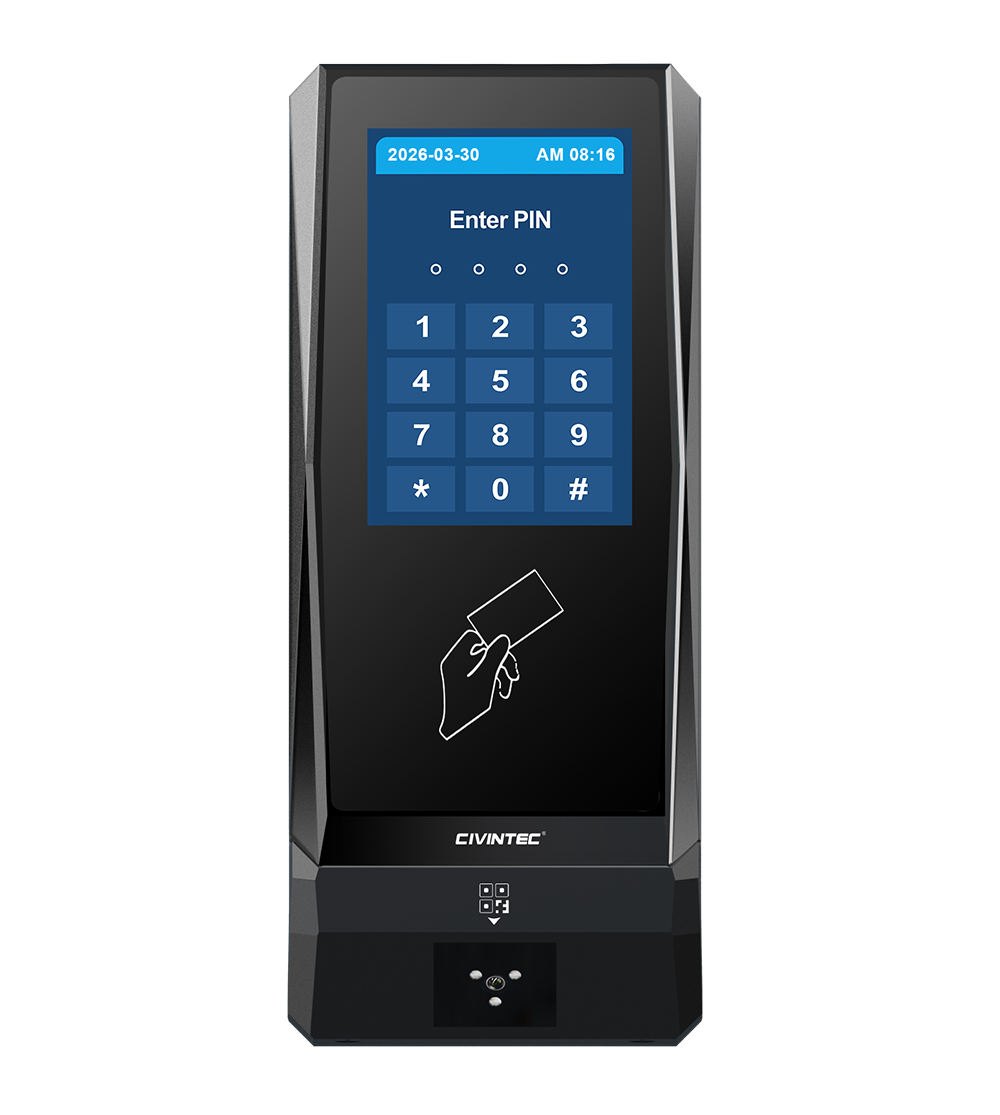

CRYSTAL CT9 PRO

CRYSTAL CT9 PRO-D

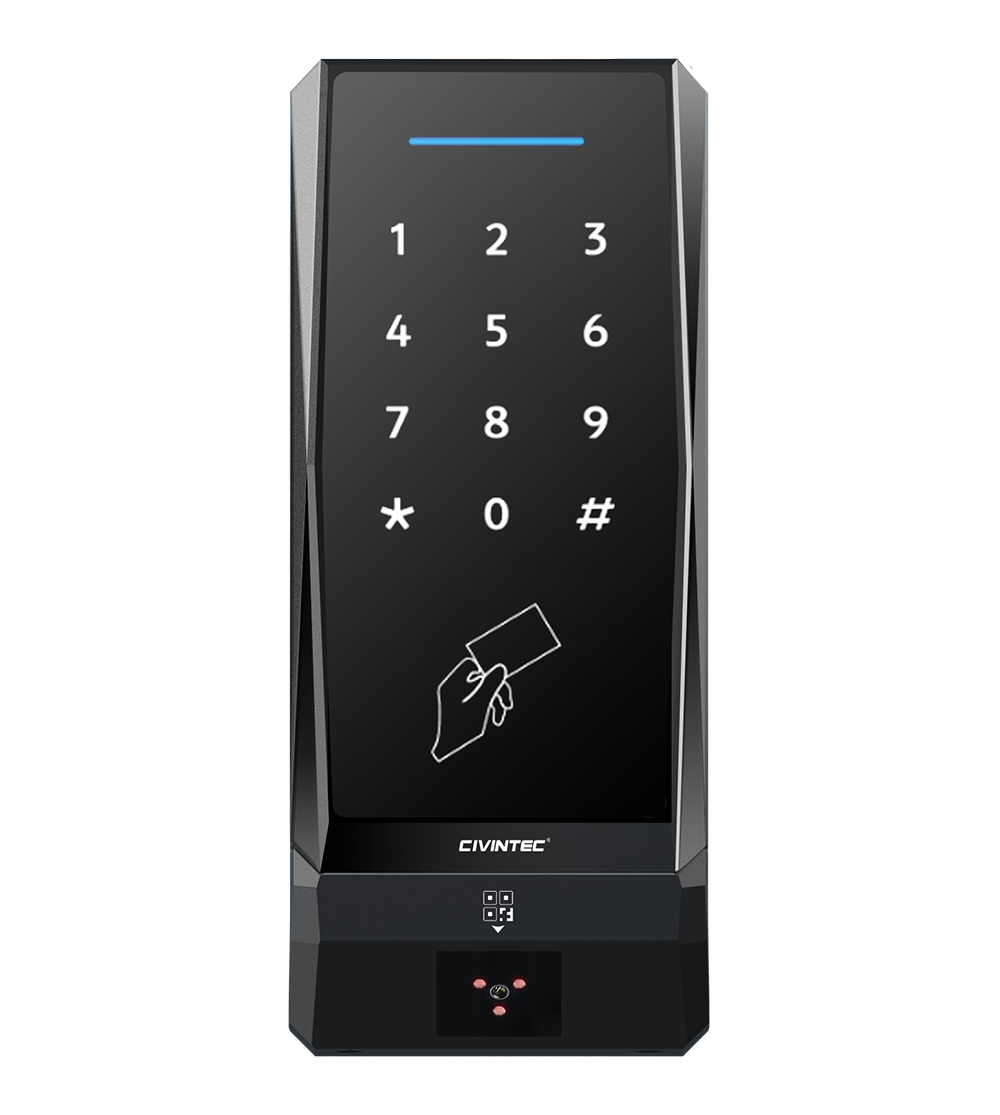

CRYSTAL CT9 E

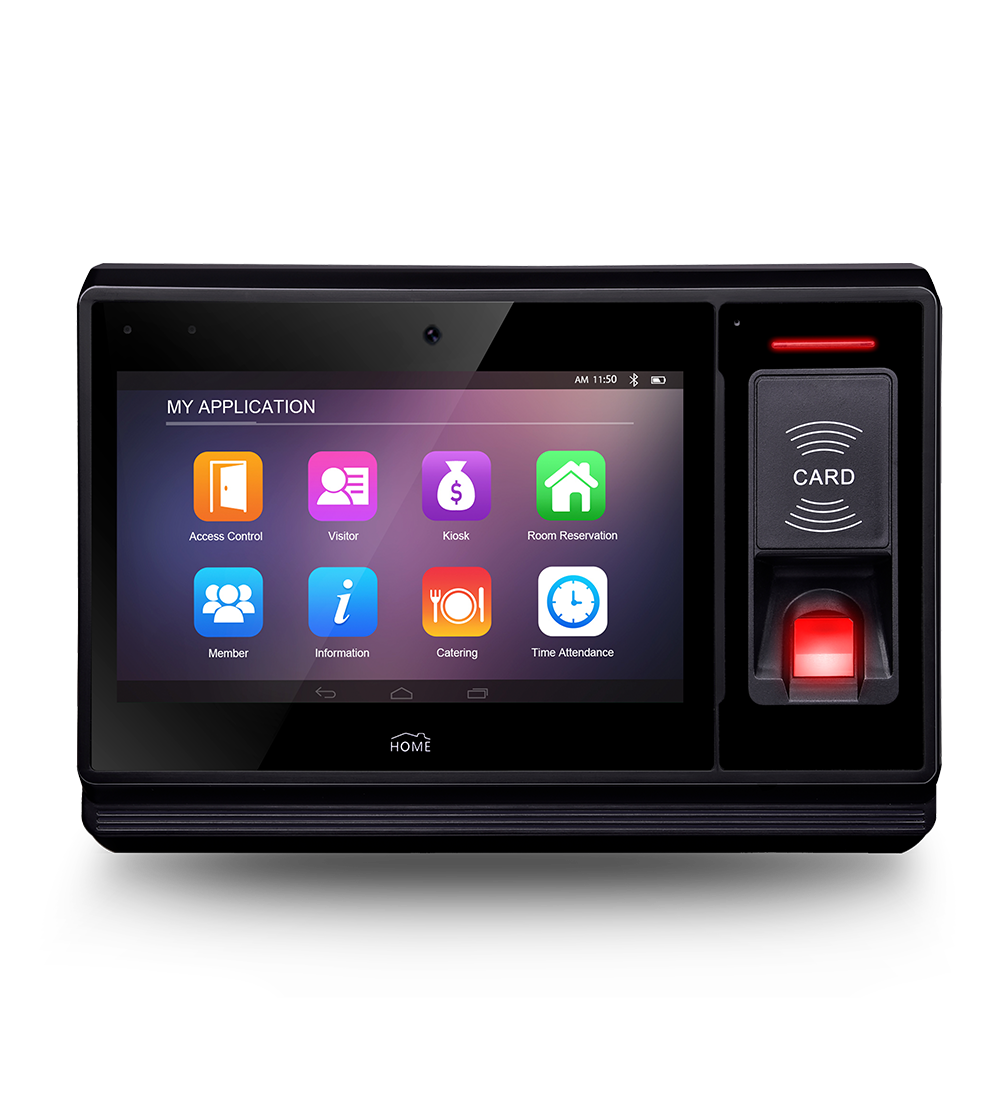

UTOUCH X CN890

W84*H165*D24(mm)

W84*H200*D45(mm)

W84*H165*D24(mm)

W84*H200*D45(mm)

W84*H165*D24(mm)

W84*H200*D45(mm)

W230*H160*D45(mm)

LINUX

LINUX

LINUX

ANDROID 5.1 or LINUX

1.0GHz MIPS Core

1.0GHz MIPS Core

1.0GHz MIPS Core

1.4GHz quad-core processor

64MB DDR2 SDRAM, 128MB SLC Nand Flash

64MB DDR2 SDRAM, 128MB SLC Nand Flash

64MB DDR2 SDRAM, 128MB SLC Nand Flash

8G flash + 1G RAM

3.5" touch screen

3.5" touch screen

3.5" touch screen

7.0" touch screen

320*480 dpi

320*480 dpi

/

1024*600 dpi

125KHz, 13.56MHz ISO14443A, ISO14443B, ISO18092 NFC

125KHz, 13.56Mhz ISO14443A, ISO14443B, ISO15693, ISO18092 NFC

125KHz, 13.56MHz ISO14443A, ISO14443B, ISO18092 NFC

125KHz & Pro, 13.56MHz ISO14443A, ISO14443B, ISO15693, ISO18092 NFC (P2P)

125KHz Prox, 125KHz EM, 13.56MHz Mifare®Classic, Ultralight®, Mifare®Plus, DESFire EV1/EV2/EV3, NFC tags

13.56MHz Mifare® Classic, Ultralight®, Mifare® Plus, NFC tags, DES Fire®EV1/EV2/EV3; HID® iCLASS; HID® Seos 125KHz HID® Prox, Indala, EM4100/4102 and HITAG

125KHz Prox, 125KHz EM13.56MHz Mifare®Classic,Ultralight®, Mifare®Plus,DESFire EV1/EV2/EV3, NFC tags

EM 125KHz, 13.56MHz Mifare®Classic, Mifare® CSN, Mifare® Plus, DESFire® EV1, Ultralight®C, ISO18092 NFC tags (T2T, T3T, T4T)

ISO7816(T=0,T=1) 1 SAM module

/

/

ISO7816(T=0,T=1) 1 SAM module

BLE, NFC reader and QR Code/Barcode Scanner

BLE, NFC reader and HID® mobile virtual card

BLE, NFC reader and QR Code/Barcode Scanner

BT + NFC

. Decode range: 20mm-150mm(QR 20MIL)

. Roll/Pitch/Yaw: 360°, +55°, +55°

. Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes.

. Decode range: 20mm-150mm(QR 20MIL)

. Roll/Pitch/Yaw: 360°, +55°, +55°

. Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes.

. Decode range: 20mm-150mm(QR 20MIL)

. Roll/Pitch/Yaw: 360°, +55°, +55°

. Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes.

/

Touch screen pincode in 4 rows of 3 keys

Touch screen pincode in 4 rows of 3 keys

12 digit Touch keypad

Touch Screen Pincode

/

/

/

Fingerprint

Host mode or Local mode

Host mode or Local mode

Host mode or Local mode

Host mode or Local mode

unlimited

unlimited

unlimited

unlimited

10,000 users /50,000 logs

10,000 users /50,000 logs

10,000 users /50,000 logs

100,000 users/1,000,000 events

TP display Controllable buzzer and speaker

TP display Controllable buzzer and speaker

Controllable tri-color LEDs

Controllable Buzzer and speake

Controllable LEDs

Controllable Buzzer and speake

Volume controllable speaker

Volume controllable speaker

Volume controllable speaker

2W/8 OHM speaker

/

/

/

Auto focus 5.0 megapixel digital camera

12-24V DC; PoE IEEE 802.3af

12-24V DC; PoE IEEE 802.3af

12-24V DC; PoE IEEE 802.3af

9-24V DC; PoE IEEE802.3at

- 4G

- TCP/IP, RS485, Wiegand input

- 4G

- TCP/IP, RS485, Wiegand input

- 4G, WiFi

- TCP/IP, RS485, Wiegand input

4G, WiFI, BT4.0, TCP/IP, RS232, RS485/OSDP, wiegand,USB2.0 (OTG)

3* inputs - door contact,door exit,Buzzer control

4* tamper alarm switch, output Buzzer control, Access Granted, Access Denied

3* inputs-door contact door evit Buzzer control

4* tamner alarm switch outnut Buzzer control

Access Granted,Access Denied

3* Inputs - Door contact, Door exit, Buzzer control

4* Outputs - Tamper alarm switch, Output Buzzer control, Access Granted, Access Denied

4* I/O port

On request

-----

1 input to connect fire alarm the supported models refer to Page 7

On request

1~2 relay output

1~2 relay output

1~2 relay output

2* relay outputs

Yes, external wiegand reader

Yes, external wiegand reader

Yes, external wiegand reader

/

yes

yes

yes

yes

-20 ~ +60°C

-20 ~ +60°C

-20 ~ +60°C

0~ + 60℃

0-90% relative humidity non-condensing

0-90% relative humidity non-condensing

0-90% relative humidity non-condensing

5%-90% non-condensing

-20 ~ +60°C

-20 ~ +60°C

-20 ~ +60°C

-10 ~+60℃

Terminal block connector

Terminal block connector

Terminal block connector

VESA75 mounting plate

yes

yes

yes

yes

IP65 electric epoxy potted (request waterproof spacer)

Resistant to UV ray (suitable for UV-resistance model)

IP65 electric epoxy potted (request waterproof spacer)

Resistant to UV ray (suitable for UV-resistance model)

IP65 electric epoxy potted (request waterproof spacer)

Resistant to UV ray

IP54

Support OTA software and firmware upgrade

Support OTA software and firmware upgrade

Support OTA software and firmware upgrade

/
