CT10New

Quick Look

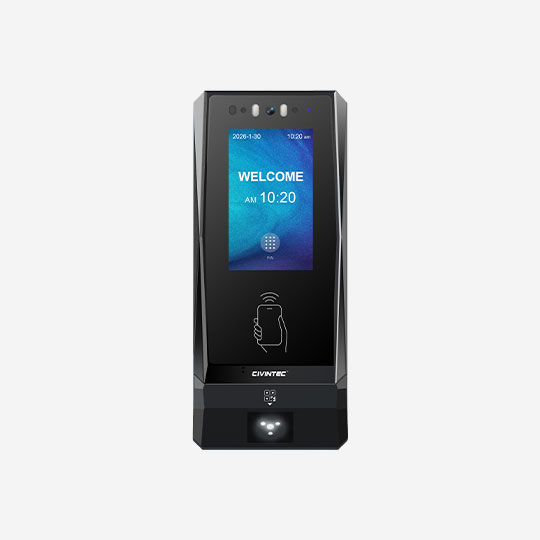

CT10 is advanced access control terminal with camera that incorporates 4-factors of authentication that encompasses, BLE and NFC mobile credentials, dual-frequency RFID smart cards, QR/barcode scanning, and touch keypad input. This multi-methods approach enables truly contactless access while maintaining advanced security standards for both regular users and visitors.

The Linux-based access control terminal is designed as server centralized system, supporting multiple connectivity options including Ethernet, 4G, WiFi, and LoRawAN for real-time online monitoring in HOST mode or fully autonomous operation in standalone Local mode, guaranteeing uninterrupted access control.

CT10 Smart Access Control System features embedded 4G LTE and GPS technology, designed for reliable outdoor and mobile applications. This rugged (IP65-rated) system ensures continuous connectivity without WiFi or Ethernet cable dependency, while its GPS capability provides essential location verification - perfect for construction sites, mobile assets, campsite and remote facilities. With instant remote management via cloud platform and industrial-grade durability, the CT10 delivers enterprise-level access control anywhere. Its always-on 4G connection enables real-time monitoring and alarm notifications, making it an ideal choice for temporary job sites and outdoor management.

Furthermore, Linux based CT10 is supported by a robust SDK with comprehensive libraries, API, encrtyped high secure HTTPs protocol and DEMO for developer to rapidly build highly customer's own professional and strong applications and requirements tailored to diverse industry needs. It also provides API for developer to display customized and intuitive Ul, background image and real-time TEXT on 3.5" touchscreen. CT10 SDK provides developers with a simple, user-friendly interface, offering high flexibility and extensibility.

Advantages

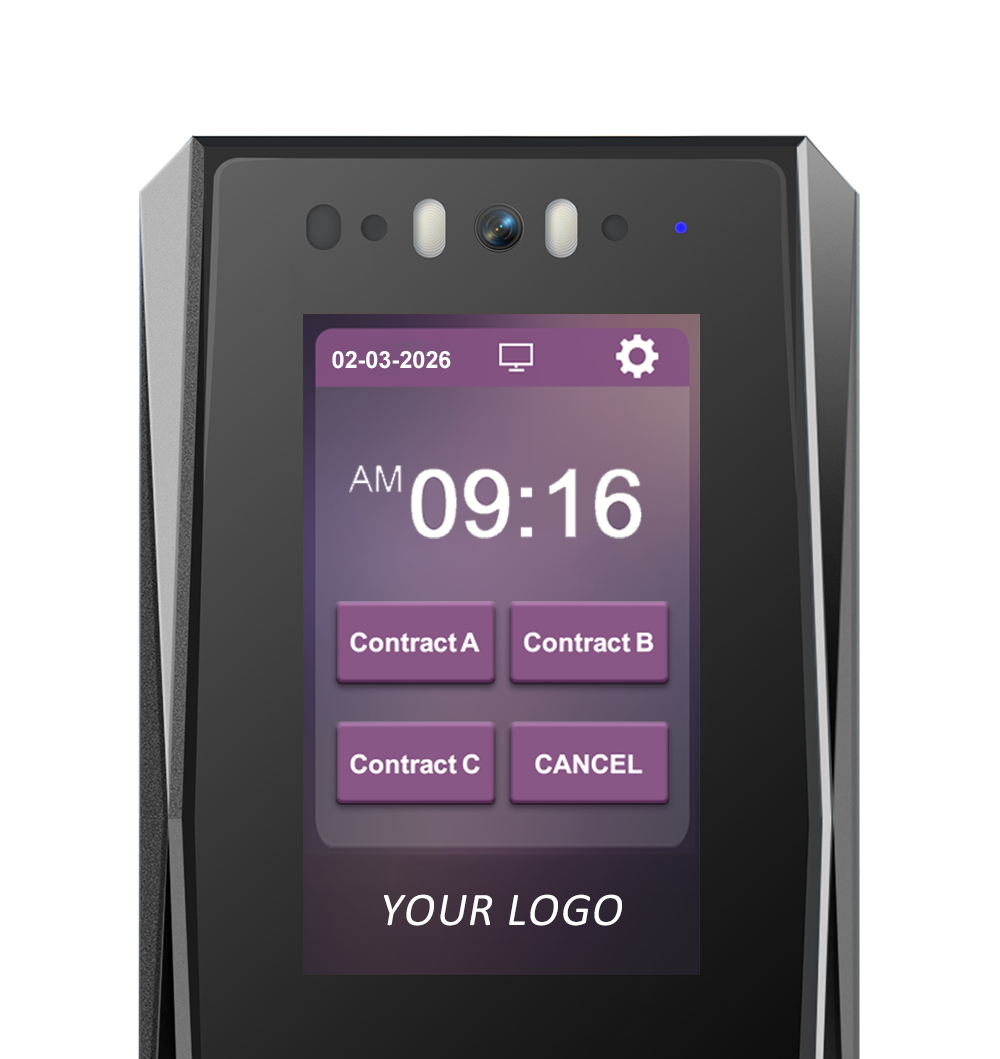

 Intuitive Touch Screen

• 3.5” Touch Screen Linux OS with SDK

• Programmable UI, background image with text content

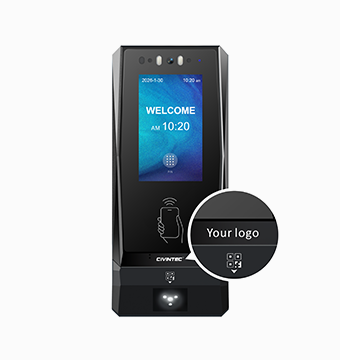

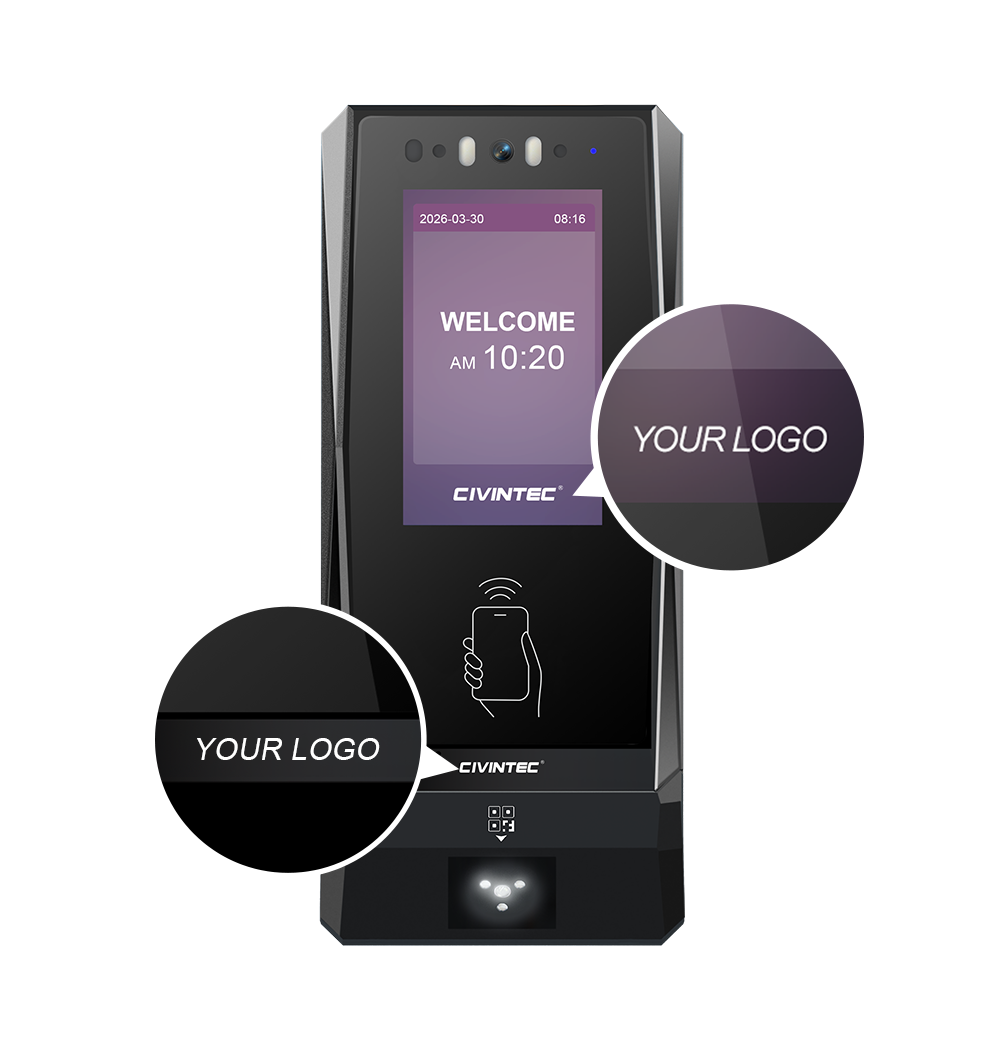

• Branding LOGO modification

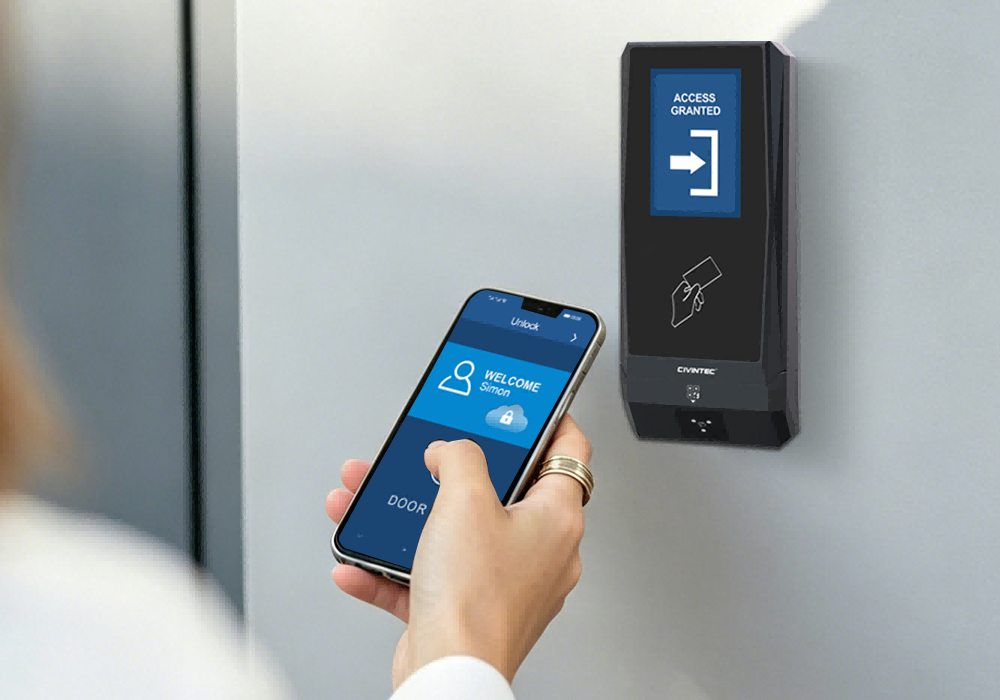

 Multi-tech Mobile Credential

• Support BLE in iOS, NFC/BLE in Android, Configurable BLE Broadcast Range

• QR Code scanner with high-speed readability and large data capacity

• With dynamic QR Code generator to improve security for application requirements

Cloud-Based System

• Support both local offline and online mode under server remote control in real time

• HTTP/HTTPs encrypted communication protocol

Function Keys

• Function Keys record different activity as clock in/out, overtime, breaks and other events

• Programmable definitions to trigger specific events Customizable to expand and add more keys

Easy Upgrade

• Server Remote Update via TCP/IP, WiFi, 4G

• BLE OTA update - wireless firmware updates

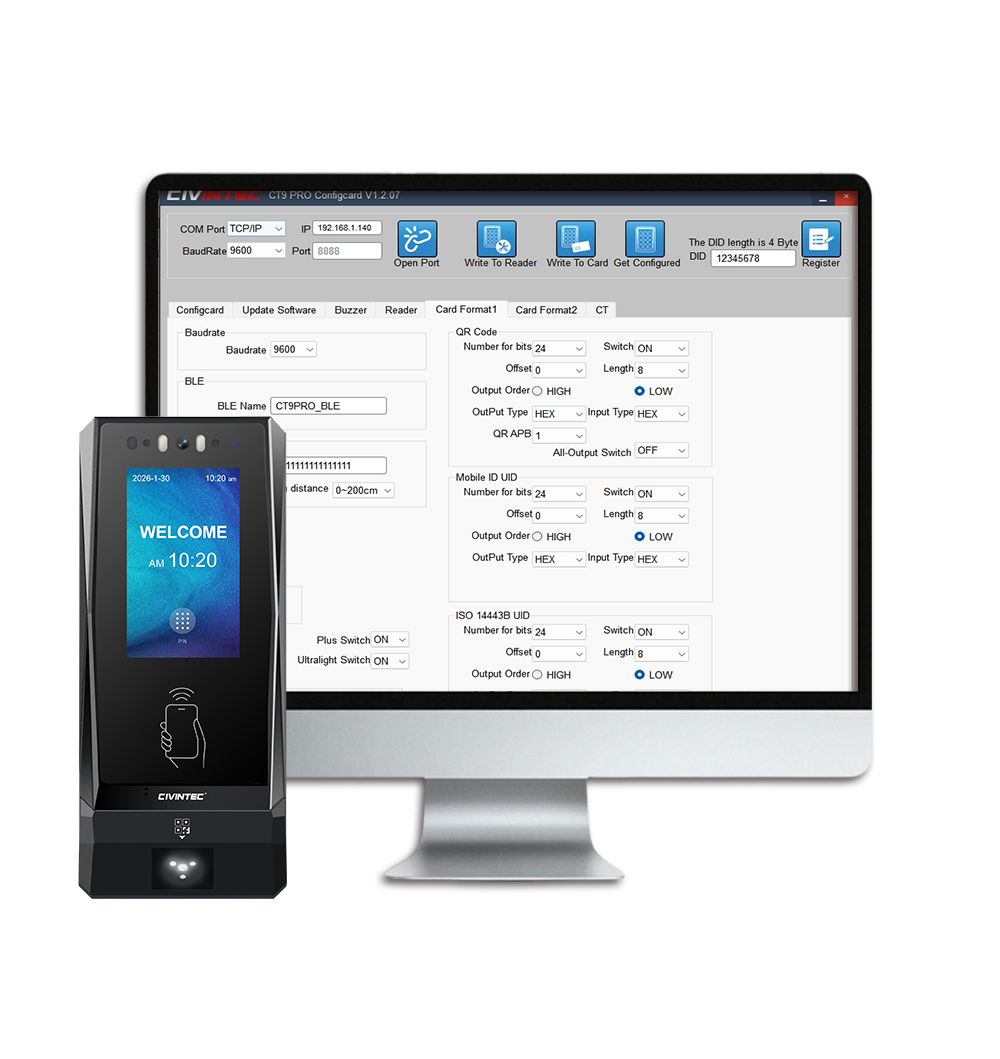

• Use ConfigCard software update Linux software and firmware

To Meet Requirement of The Highest level of Security

• RFID credentials are protected by DESFire® EV1/EV2/EV3 with AES encryption and MIFARE ® SAM AV2/AV3 (EAL5+/EAL6+)


• BLE credential is protected by AES encryption

• BLE and QR code credential extended to accommodate more data to strengthen credential encryption

• HTTPs protocol with enhanced CA certificate verification

• High-security access control system working with CN56X0B reader to achieve indoor-mounted relay controlling door lock for high security

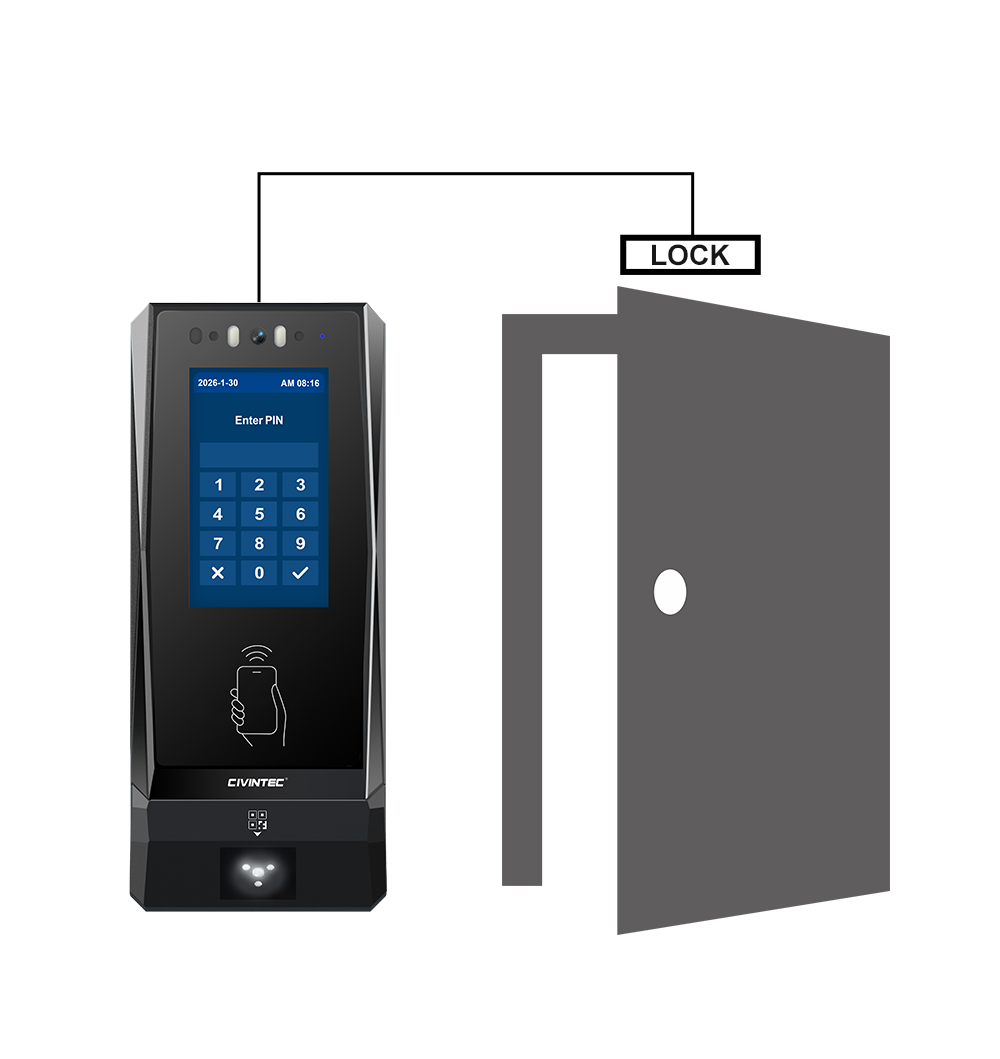

Access Control Toggle Function

• CT10 toggle function allows instant door status switching between locked mode (no access), unlocked mode (free access), and normal access control mode (validates permissions) with a HTTP/HTTPs command from cloud server.

Rich I/O port

• CT10 is with embedded 1~2 Relay output design for lock and facility control and input for Fire Alarm system integration

4G + GPS Enabled for Outdoor Reliability

• The CT10 revolutionizes access control with built-in 4G LTE connectivity and GPS capability, delivering enterprise-grade security anywhere.

For developer

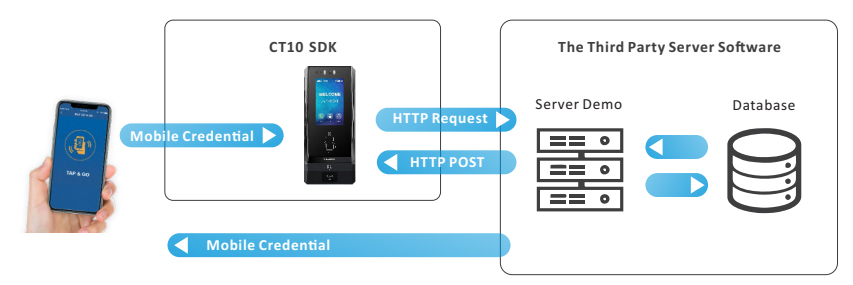

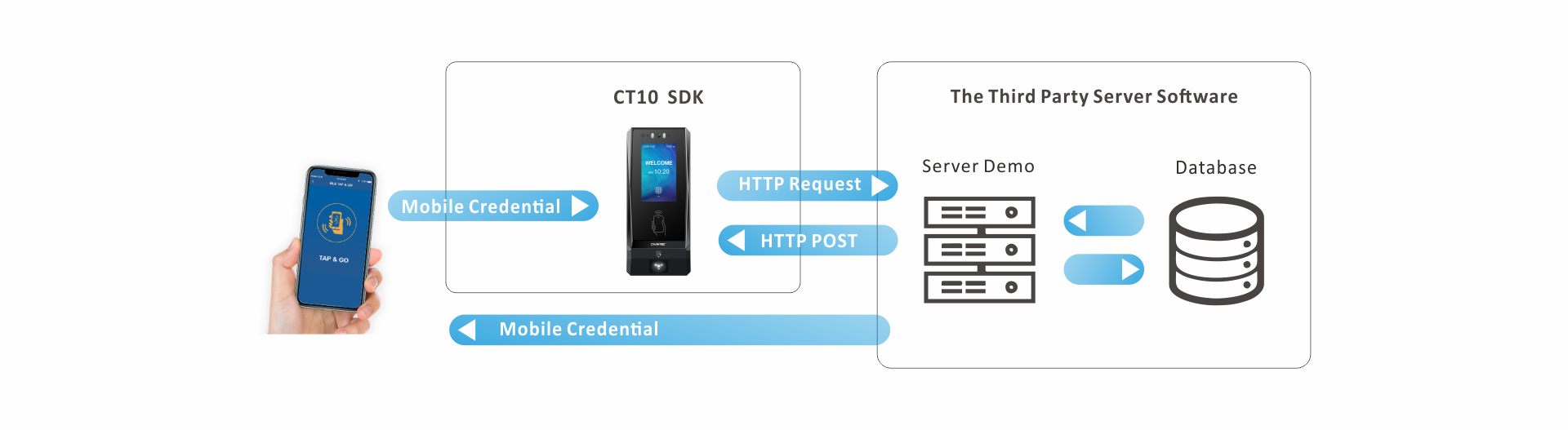

• Software Development Kit  (CT10 SDK)

CT10 provides SDK for customer's software development or the third party software system integration for general applications build. CT10 SDK offers developer guidance,libraries,API, HTTP/HTTPs protocol, alongside ConfigCard software, robust demo software including BLE, NFC and QR credentials, server demo and rich example codes to greatly accelerate software development.HTTP and encrypted HTTPS protocols are provided for developer to establish communication between CT10 and user's server software high security and stability.

With its extensive APl library, developers can effortlessly build customized solutions tailored to unique application across industries from corporate offices to industrial facilities. The SDK further empowers developers to fully customize intuitive Ul interfaces, display branded backgrounds, and present real-time text information on the 3.5-inch touch screen. This flexibility facilitates a tailored user experience and ensures a unified brand presence.

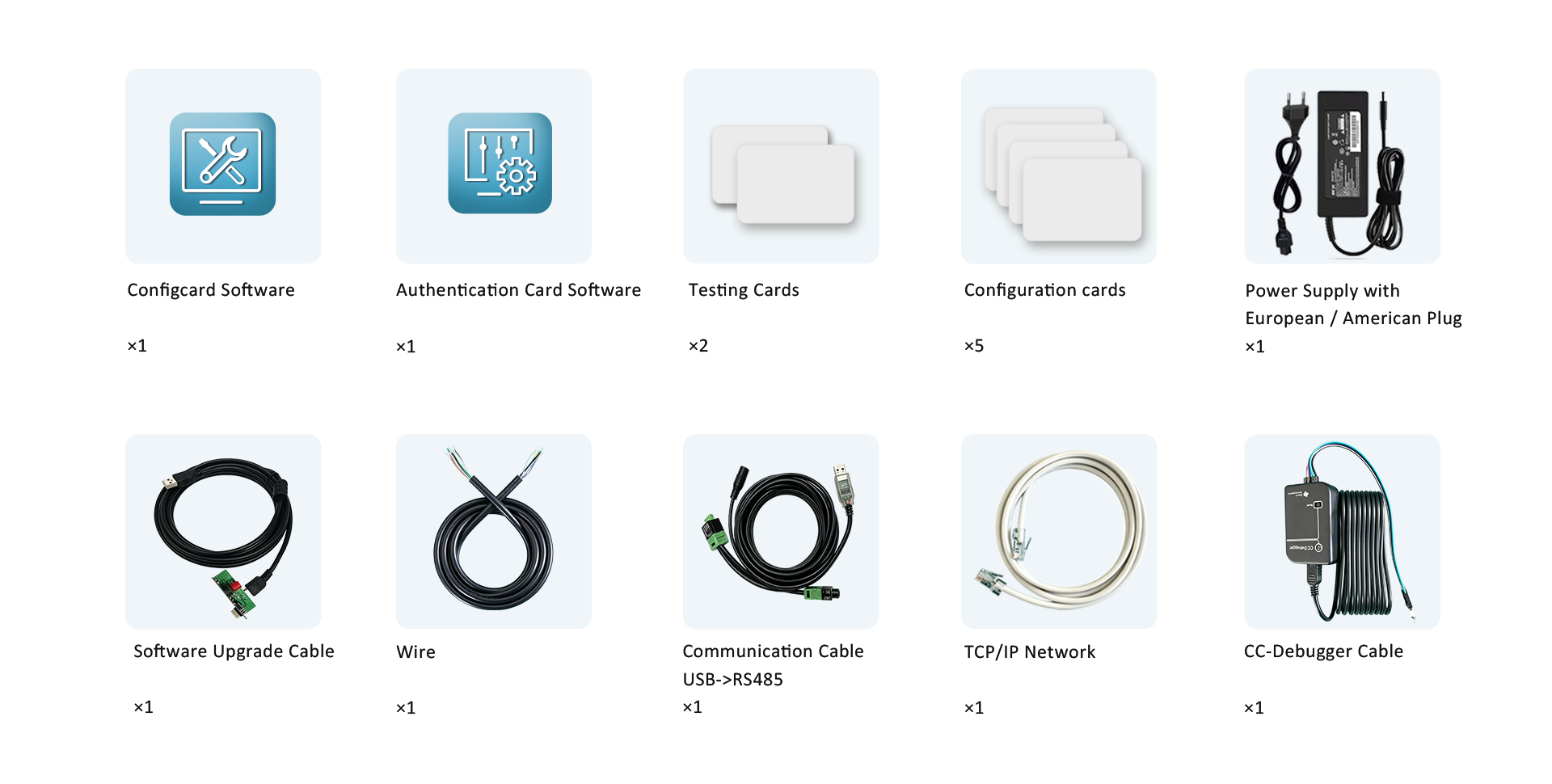

• Hardware Testing package (HTP) and Configuration software

CT10 supply HTP - plug & play hardware testing package for developer. It includes Configcard software and all the must-have accessories to establish full testing environment for terminal test, full functions configuration, software development and firmware/system upgrading.
